Maintenance 3. Covers
G10 / G20 Rev.20 117

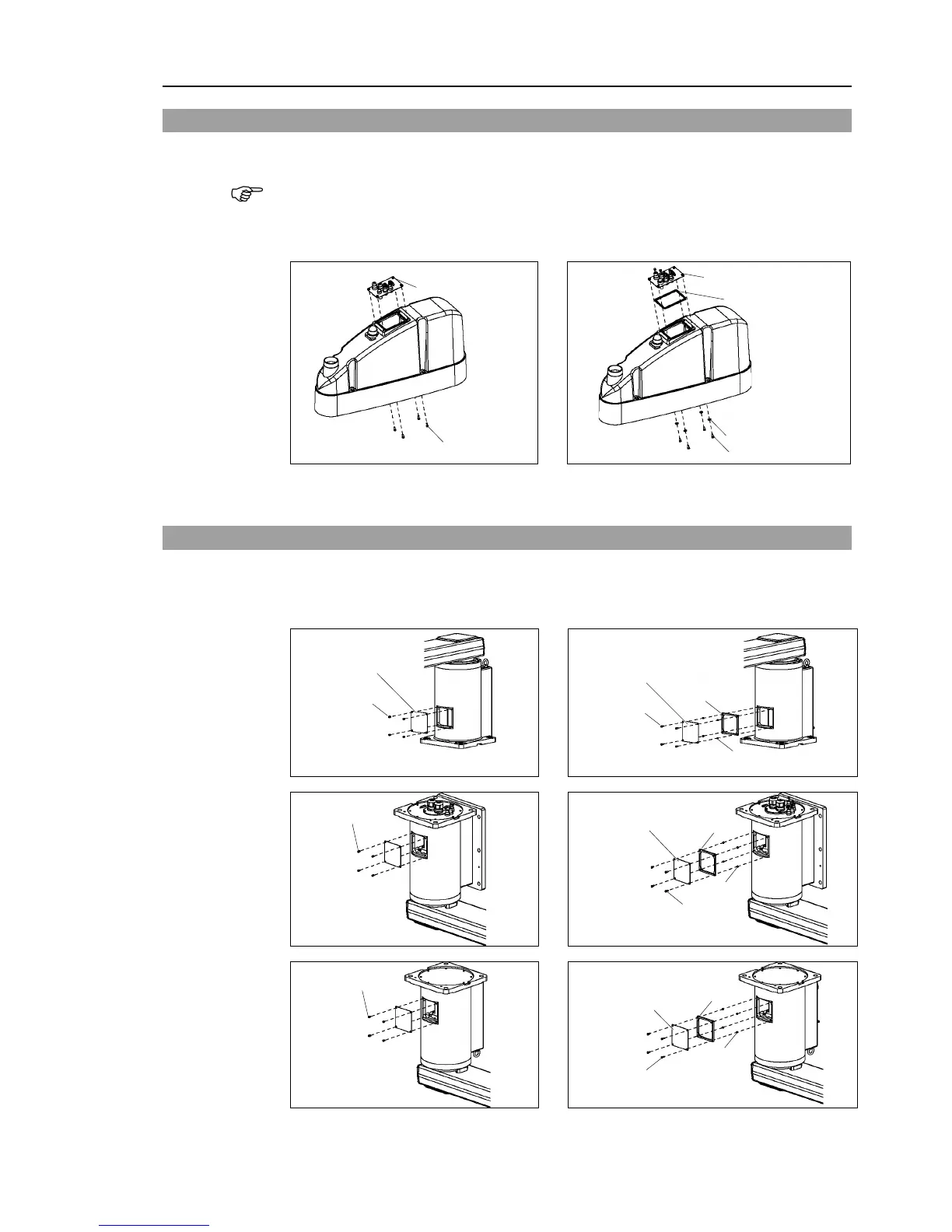

3.6 User Plate
Unscrew the user plate mounting bolts and remove the plate.
Do not remove the nut by force. The nut for the user plate is combined with the user
plate. And if you try to remove the nut, it will damage the user plate.
G10/G20
-***S* (Standard-model)
G10/G20-***C* (Cleanroom-model)
G10/G20-***D*, P* (Protected-model)
4-M4×8
User plate
4-M4×10
User plate
Gasket
Sealing washer
A gasket
and
sealing washers are installed to
G10/G20-***D*, P* (Protected-model).
3.7 Maintenance Plate
Unscrew the maintenance plate mounting bolts and remove the plate.
G10/G20
-***S* (Standard-model)
G10/G20-***C* (Cleanroom-model)
G10/G20-***D*, P* (Protected-model)
Table Top
mounting
4-M4×5
Maintenance
plate
4-M4×8
Maintenance
plate
Gasket
Spacer
Wall
mounting
4-M4×5
4-M4×8
Maintenance
plate
Gasket
Spacer
Ceiling
mounting
4-M4×5
4-M4×8
Maintenance
plate
Gasket
Spacer
A gasket and spacers are installed to G10/G20-***D*, P* (Protected-model).

