Maintenance 3. Covers
G10 / G20 Rev.20 113
3.3 Arm #1 Cover
There are two sets of Arm #1 covers.
- Arm caps
- Side covers
Unscrew the bolts mounting the covers and the caps to remove them.

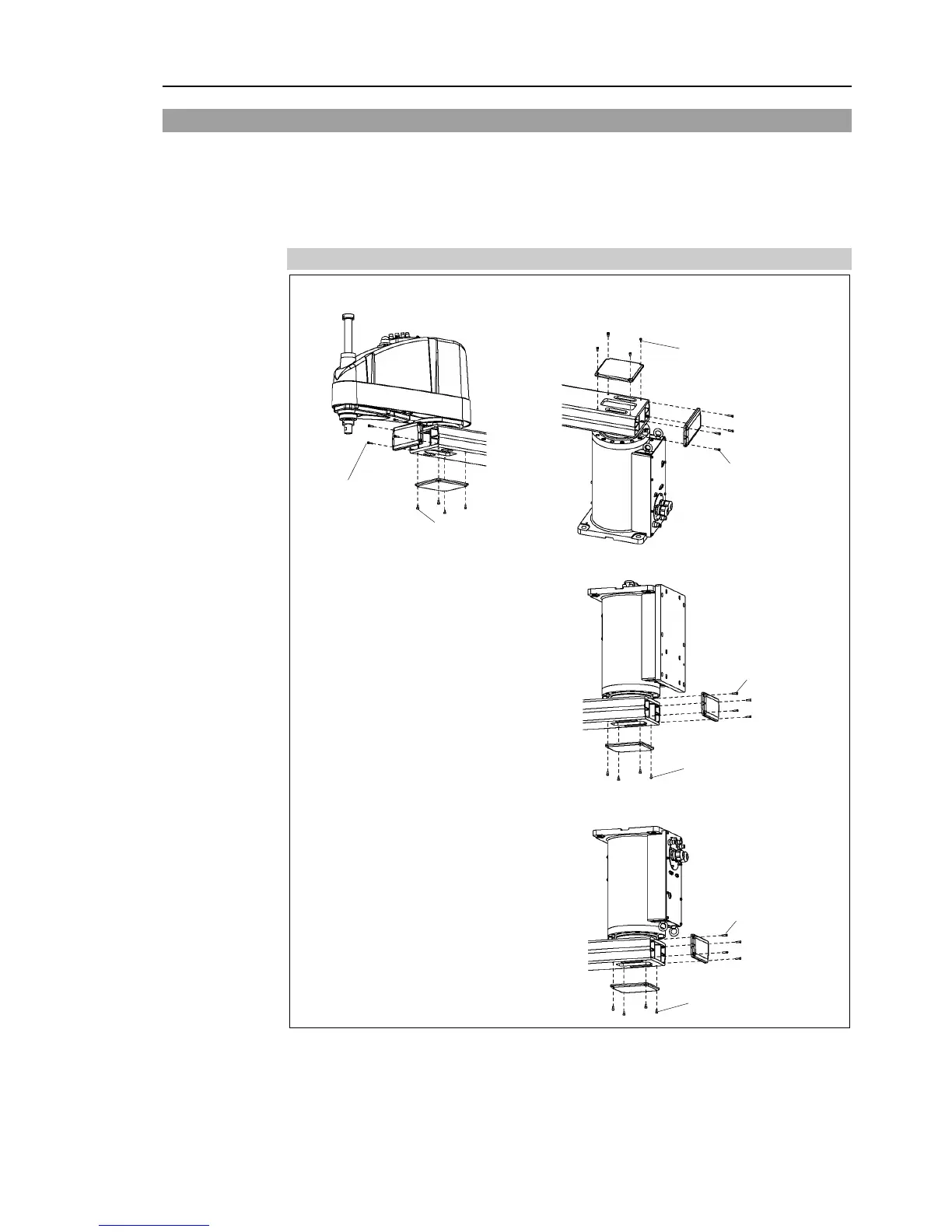

3.3.1 G10/G20-***S* (Standard-model), G10/G20-***C* (Cleanroom-model)
Arm side (Common part)
Base side
For the arm cap
: 4-M4×8
For the side cover
: 4-M4×15
Table Top mounting
For the side cover
: 4-M4×15
For the arm cap
: 4
-M4×8
Wall mounting
For the side cover
: 4-M4×15
For the arm cap
: 4-M4×8
Ceiling mounting
For the side cover
: 4-M4×15
For the arm cap
: 4-M4×8
