Epson GT-30000 Service Manual

A3 Size Color Flat Bed Scanner GT-30000 Revision A
TROUBLESHOOTING Overview 34

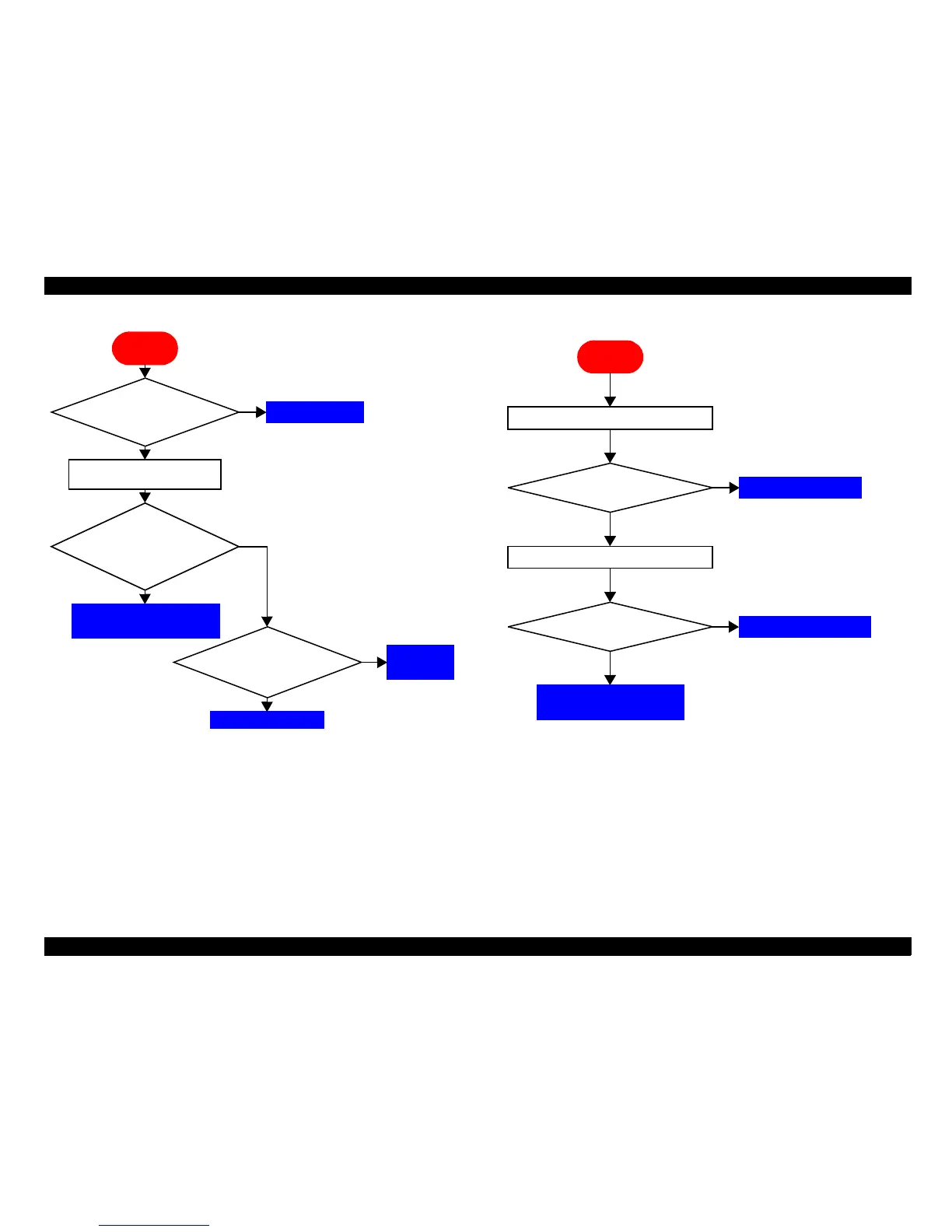

Flowchart 3-3. CR moves abnormally (crashes into frame)
Flowchart 3-4. Lamp does not light
Replace the main circuit board
or connection circuit board.
Start
Transportation
screw set to locked
position?
Turn on the power and move the
carriage outside the HP.
Is +24 DC present
between pins 10 and 9
(GND) of connection
circuit board connector
CN5?
Is connection circuit
board connector
CN6 connected
properly?
Unlock the screw
Yes
No
Yes
No
Yes
Replace the HP sensor
No
Connect
properly.
Replace the main circuit board
or connection circuit board.
Start
Does the lamp
operate normally?
Replace the lamp on the carriage.
No
Replace the inverter board on the carriage.
Old inverter was defective.
Yes
No
Old lamp was defective.
Yes
Does the lamp
operate normally?

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
