Epson Stylus Color 1520 User Manual

Managing Print Jobs and Network Printing
4-13

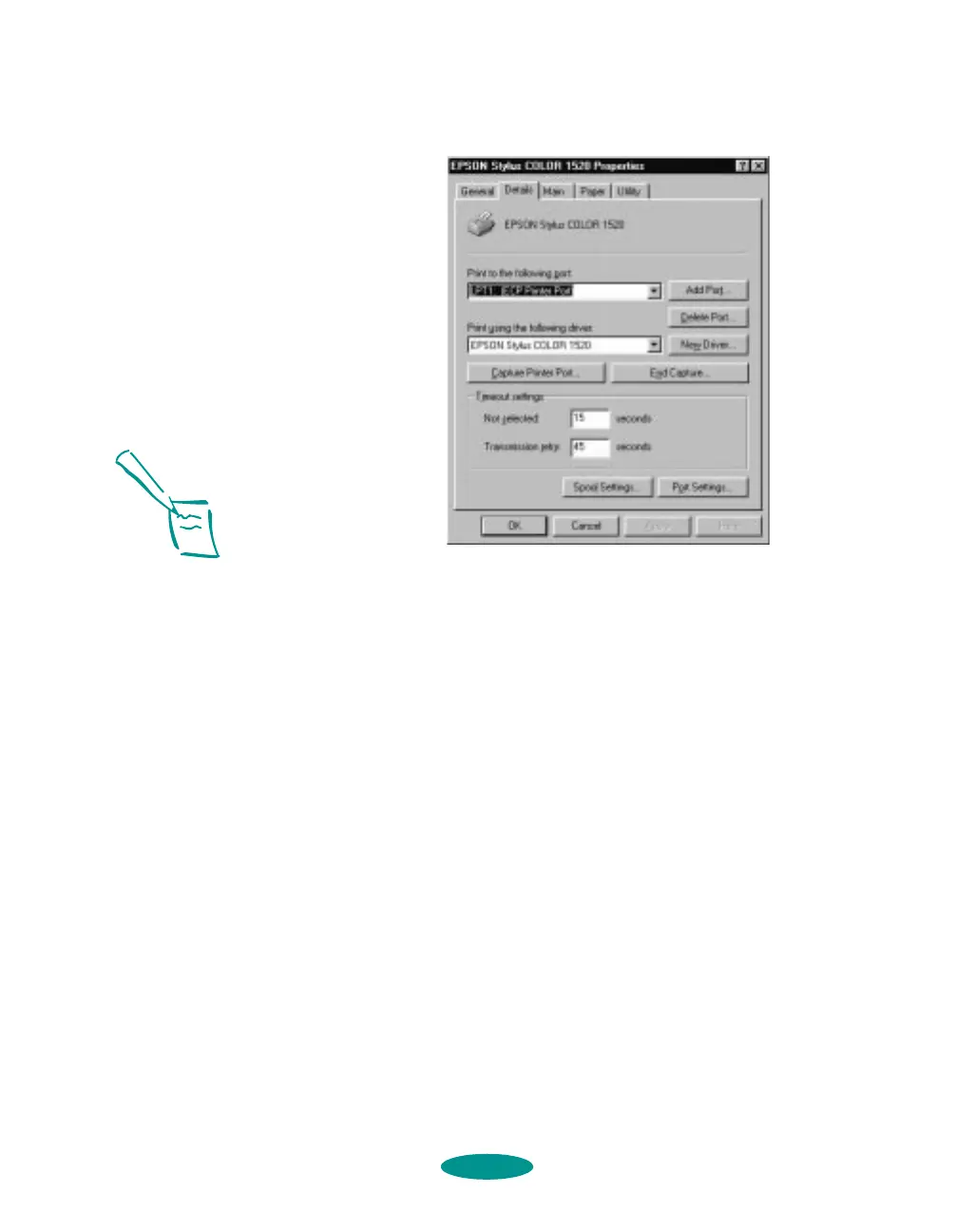

The following dialog box appears:
5. Click the
Add Port
button, then specify the network path
to the printer and click
OK.
6. Open the Spool Manager window as described on page 4-2.
7. In the Spool Manager window, double-click your printer’s
queue. The Queue Setup dialog box appears.
8. Make sure the
Use Print Manager for this port option is
checked. Then click
OK.
Network Printing on a Macintosh
If you want to use your printer on an AppleTalk
™
network, you
need to install an optional interface board: either the
LocalTalk
®
board or the Ethernet
™
board. See Appendix A for
more information about optional interfaces.
Then you can use the
EPSON Namer utility and set up your
printer in the Chooser. The
EPSON Namer was installed on
your hard drive along with the other printer software.
Note:
To print from DOS
applications as well as
Windows applications,
click the Capture Printer
Port button instead of
Add Port. Select the
printer port in the Device
list, then specify its
network path. Select
Reconnect at logon, then
click OK.
printjob.fm5 Page 13 Friday, May 9, 1997 1:52 PM

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
