Epson Stylus Color 670 Service Manual

EPSON Stylus COLOR 670 Revision A
Disassembly and Assembly Disassembly 90

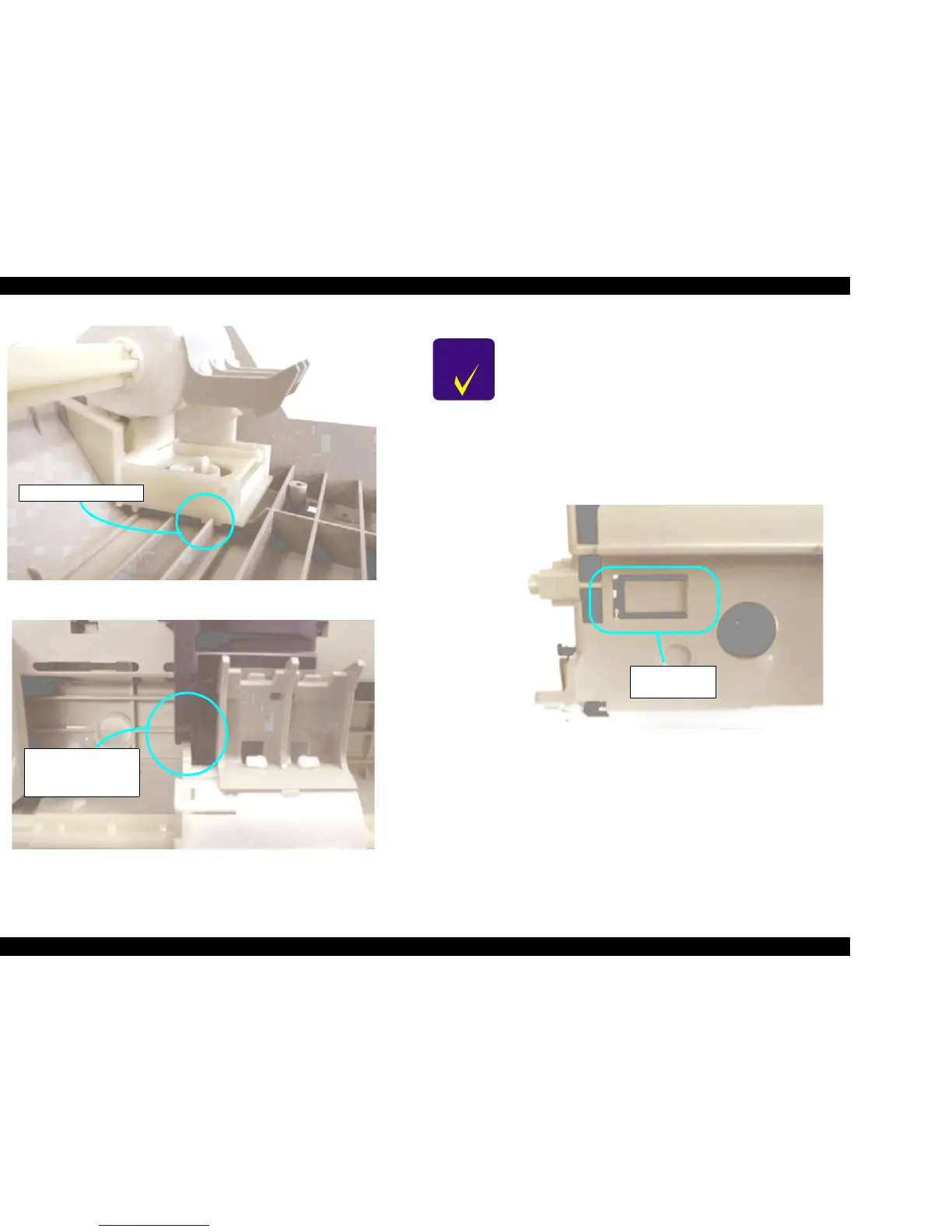

Figure 4-32. LD Roller Assembly Installation Point
Figure 4-33. Left LD Roller Assembly Installation Point
Figure 4-34. Right LD Roller Assembly Fixing Hook Position
Rail inside the ASF Frame
Installation Point of the
Left LD Roller Assembly
and Edge Guide
CHECK
POINT
n When installing the Right LD Roller Assembly to the ASF
Frame, make sure the Right LD Roller Assembly is locked
by the hook on the back of the right side of the ASF
Frame. (Refer to Figure 4-34.)
n Before installing the ASF Hopper Assembly to the LD
Roller Assembly, set the Compression Spring 1.961 to the
spring installation hook of the LD Assembly temporarily.
After assembling, move the LD Roller Assembly to the
hole on the back of the ASF Frame and release the
Compression Spring 1.961 from the Temporary Fixing
Hook through the hole. (Refer to Figure 4-35.)
Right LD Roller
Assy. Fixing Hook
