Rev. A Product Overview Appendix D-35
TM-H6000/H6000P Service Manual
Confidential

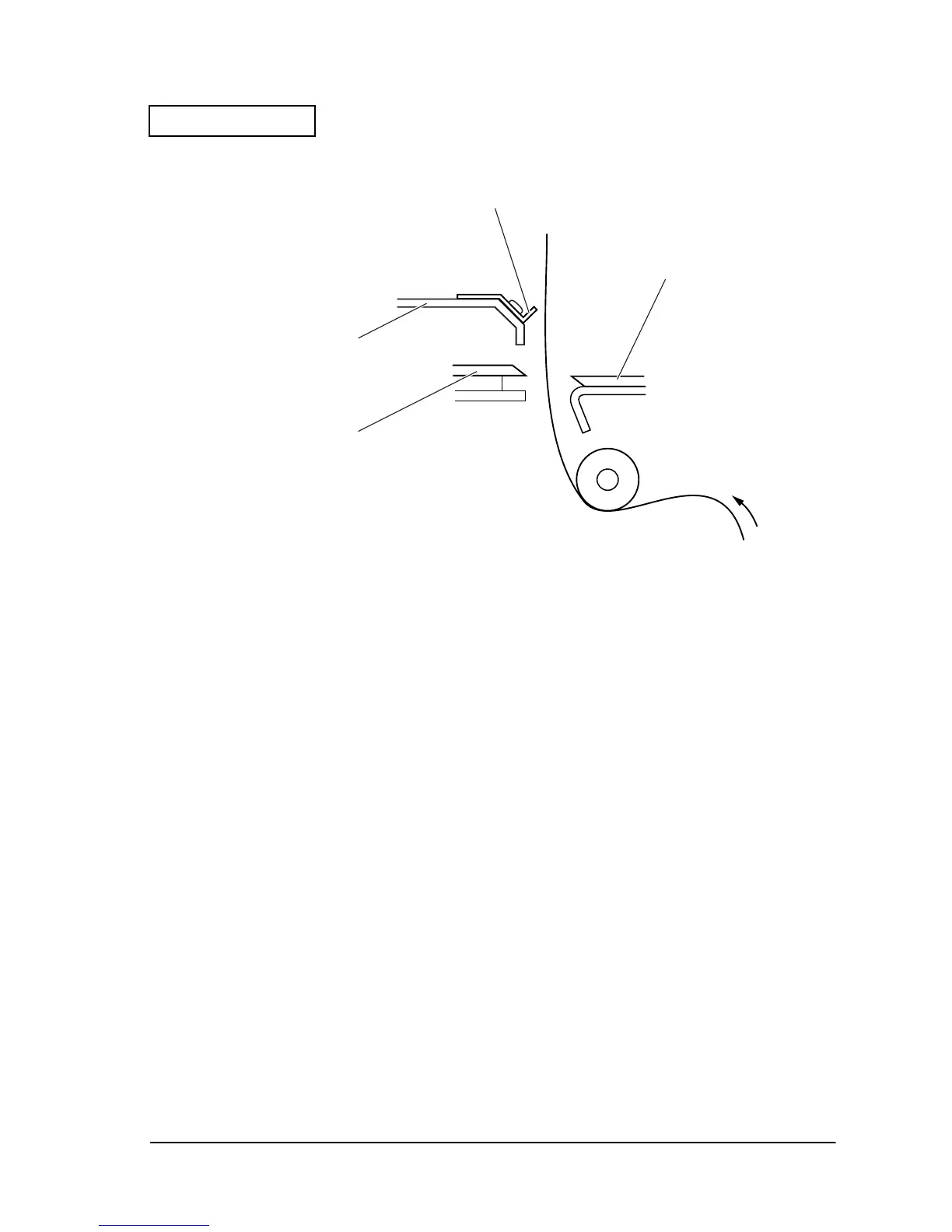

Figure D-45
Cover Mechanism
Thermal mechanism cover AA is mounted to the frame cover to provide adequate cover
strength.
The printer, including the auto cover, does not operate normally if the frame cover is not
properly closed. Therefore, the unit has a cover open detection mechanism to determine when
the frame cover is not properly closed.
Fixed blade
Movable cutter blade
Manual cutter
Paper cutter cover
