Rev. A Product Overview Appendix D-7
TM-H6000/H6000P Service Manual
Confidential
Detection Mechanism Unit
The detection mechanism unit is comprised of the following mechanisms.

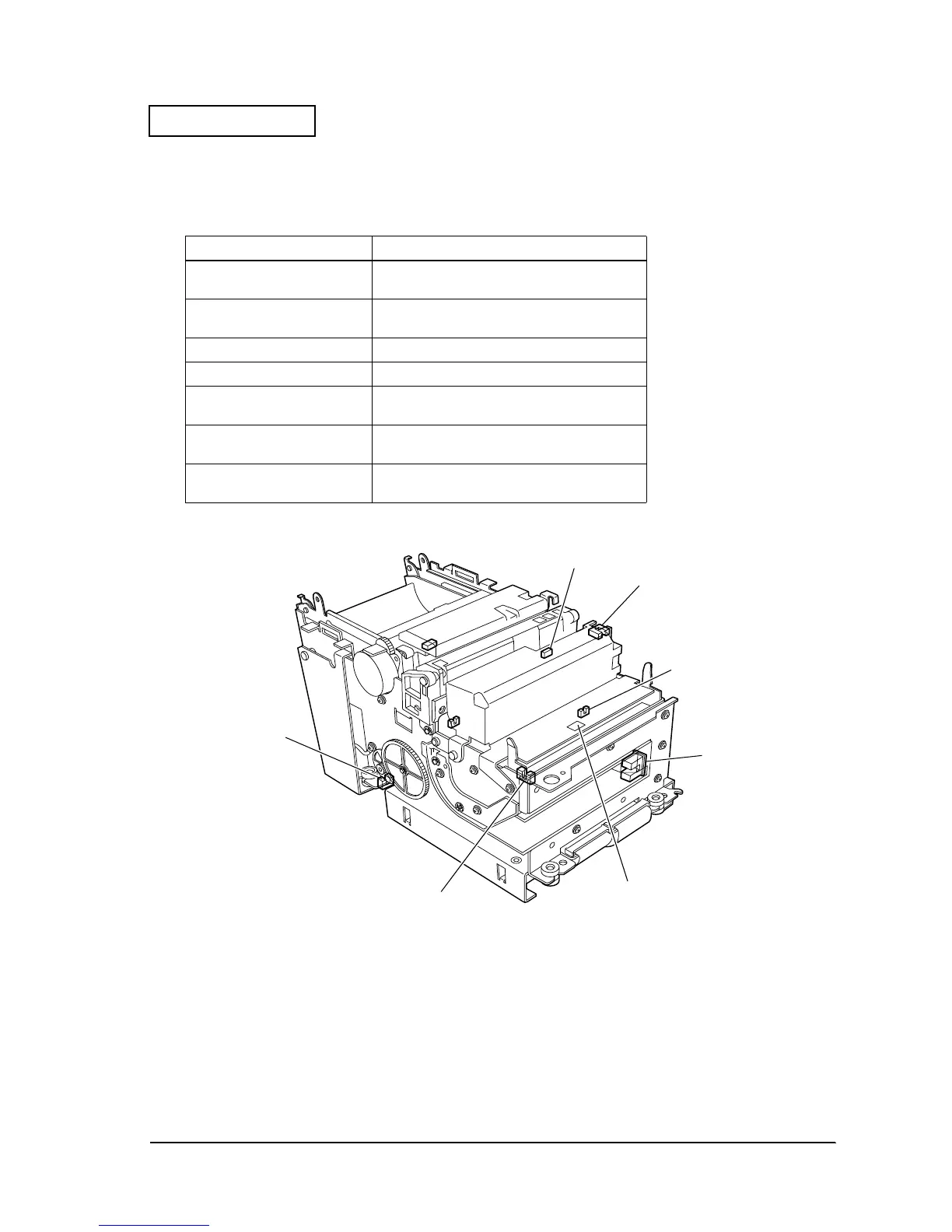

Figure D-9
TableD-1 Detection mechanism unit functions
Mechanism Function
Home position detection
mechanism
Initial setting of printer
Carriage detection
mechanism
Detection of head carriage malfunction
B.O.F. detection mechanism Slip detection
T.O.F. detection mechanism Slip detection
Paper ejection detection
mechanism
Slip detection
Lever motor T.P. detection
mechanism
Lever drive motor timing signal detection
Front cover detection
mechanism
Front cover open/closed status detection
Slip B.O.F. detector
assembly
Slip T.O.F. detector
assembly
Carriage detector
assembly
Home position detector
paper ejection detector
Front cover detector
assembly
Lever motor T.P.
detector assembly
