4. Attach the paper ejection detector assembly to the carriage cover assembly with one screw.

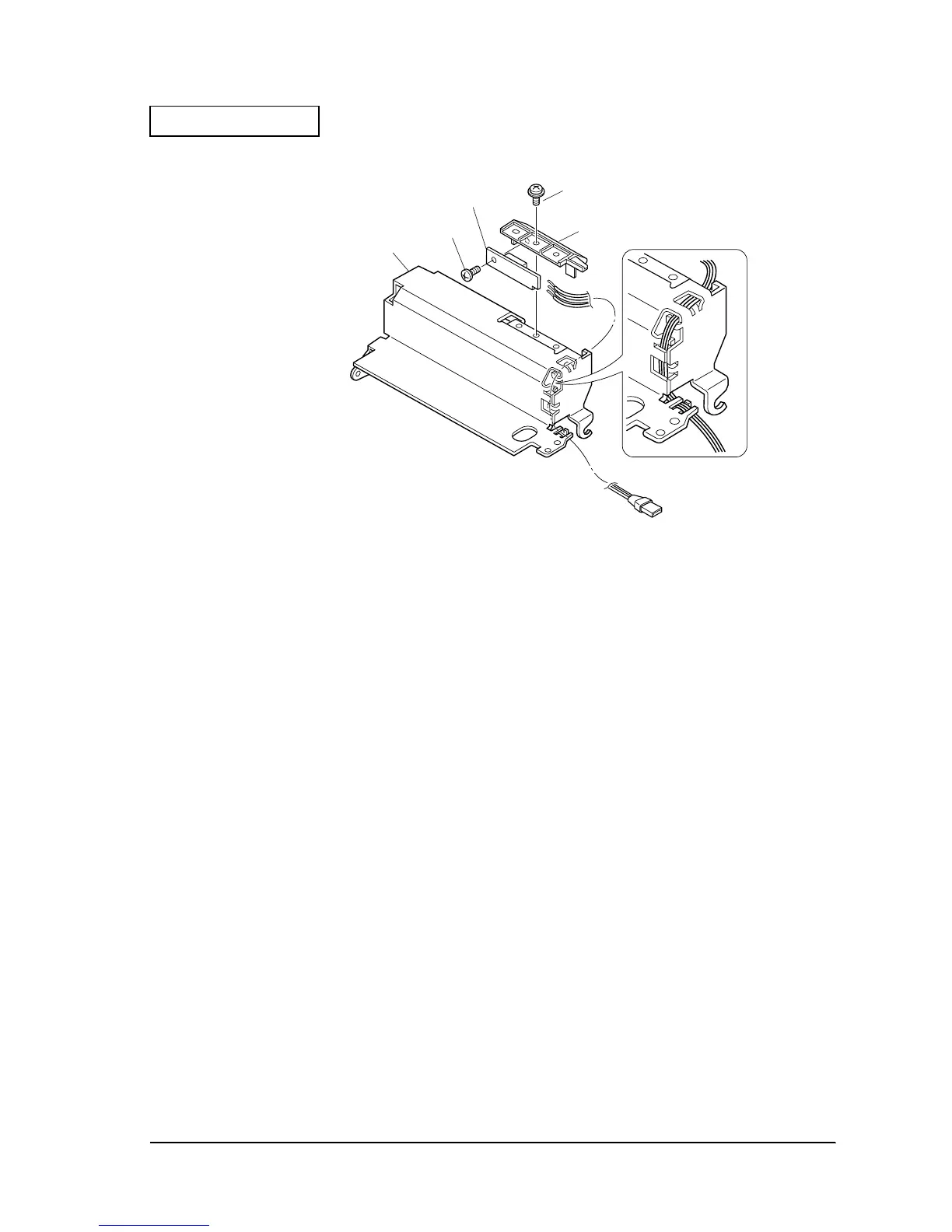

Figure 2-12
Assembly of the Slip Printer Mechanism
1. Tighten two screws on the front of the main sub assembly frame.
2. Using two screws, attach the lever drive assembly motor to the main sub assembly motor.
Install so that the label side of the lever drive assembly motor is facing the back side.
3. Attach the sub slip feed shaft holder to the sub slip feed sub assembly lever frame with one
screw.
4. Attach the sub slip feed lever to the main sub assembly frame with one E-ring. Use the sub-
spring feed lever shaft to fasten.
5. Install the form stopper into the main sub assembly frame and insert the form stopper shaft.
Attach with one E-ring. Insert the form stopper shaft from the outer side of the main frame.
6. Hook the form stopper spring to the main sub assembly and form stopper rack.
7. Hook the sub slip feed lever spring onto the sub slip feed lever assembly.
8. Attach the drive shaft assembly lever to the main sub assembly frame. Insert the D-cut side
of the drive shaft assembly lever to the left when pulling the shaft into the round hole in the
bottom center of the main sub assembly frame.
690
screw(C.C.S-tite,2.5X5)
633
Paper ejection detector
holder
608
screw(C.B.P-tite,3X6)
663
Paper ejection detector assembly
681
Carriage cover frame
assembly
To Next Page
