Appendix D-56 Product Overview Rev. A
Confidential
Slip Mechanism Drive Function
The main functions of the slip mechanism are described below:
❏ Impact head drive
❏ Carriage motor drive
❏ Paper feed motor drive
❏ Lever motor drive
❏ Lever drive
❏ Various detection circuits
Impact Head Drive

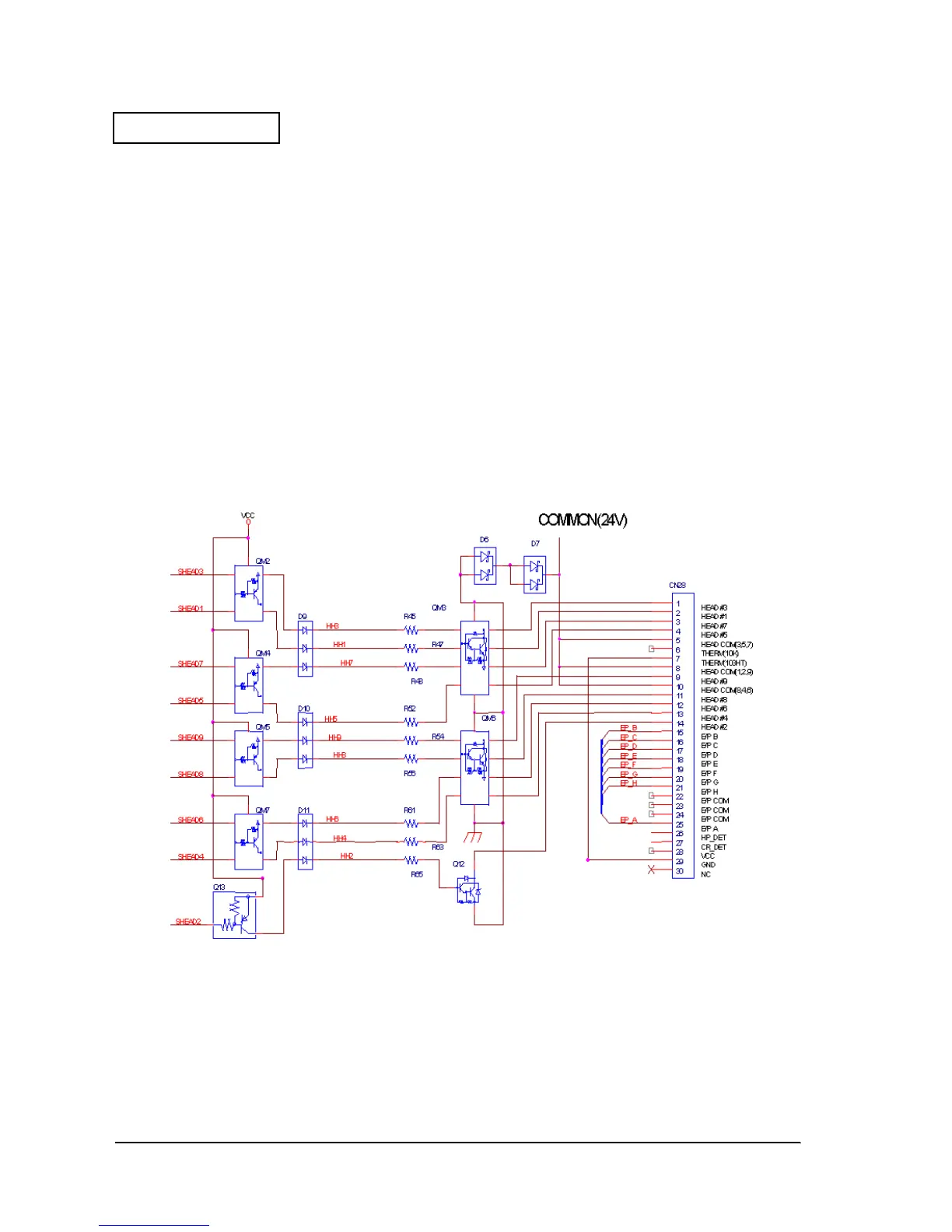

The impact head drive unit consists of the head solenoid drive and common drive. The head
drive circuit diagram is shown below.
Figure D-55
To Next Page
