Rev. A Troubleshooting 1-5
TM-H6000/H6000P Service Manual
Confidential
Detecting the Head Carriage Home Position
The head carriage on a dot impact printer moves to the left side (home position) once and then
to the right side before stopping. Check this operation with the front cover opened.

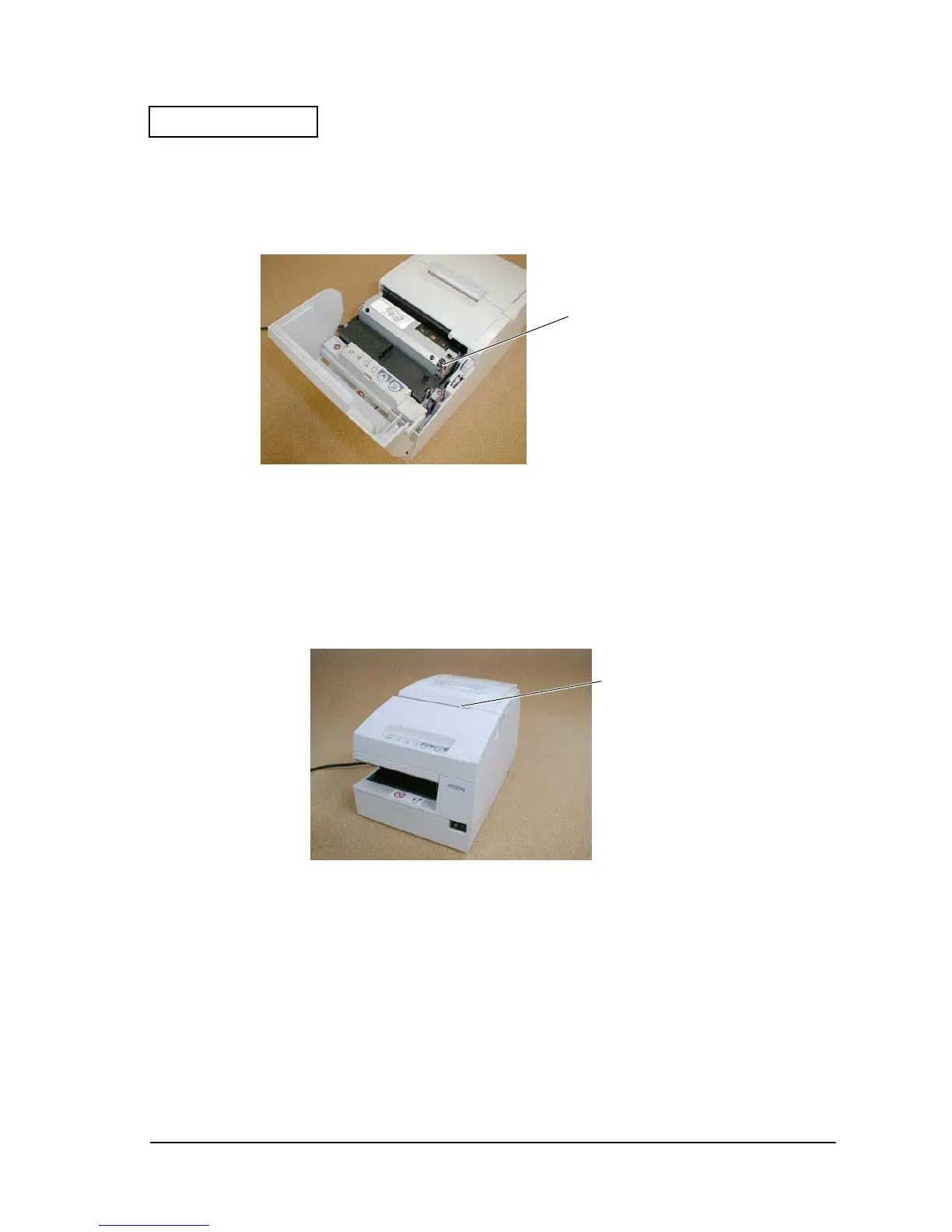

Figure 1-4 Detecting the head carriage home position
Feeding Thermal Printer Paper
Roll paper is fed 1 to 2 mm (0.04 to 0.08″).
Figure 1-5 Feeding thermal printer paper
check for head carriage
movement
check for paper feed
To Next Page
