Appendix D-42 Product Overview Rev. A
Confidential

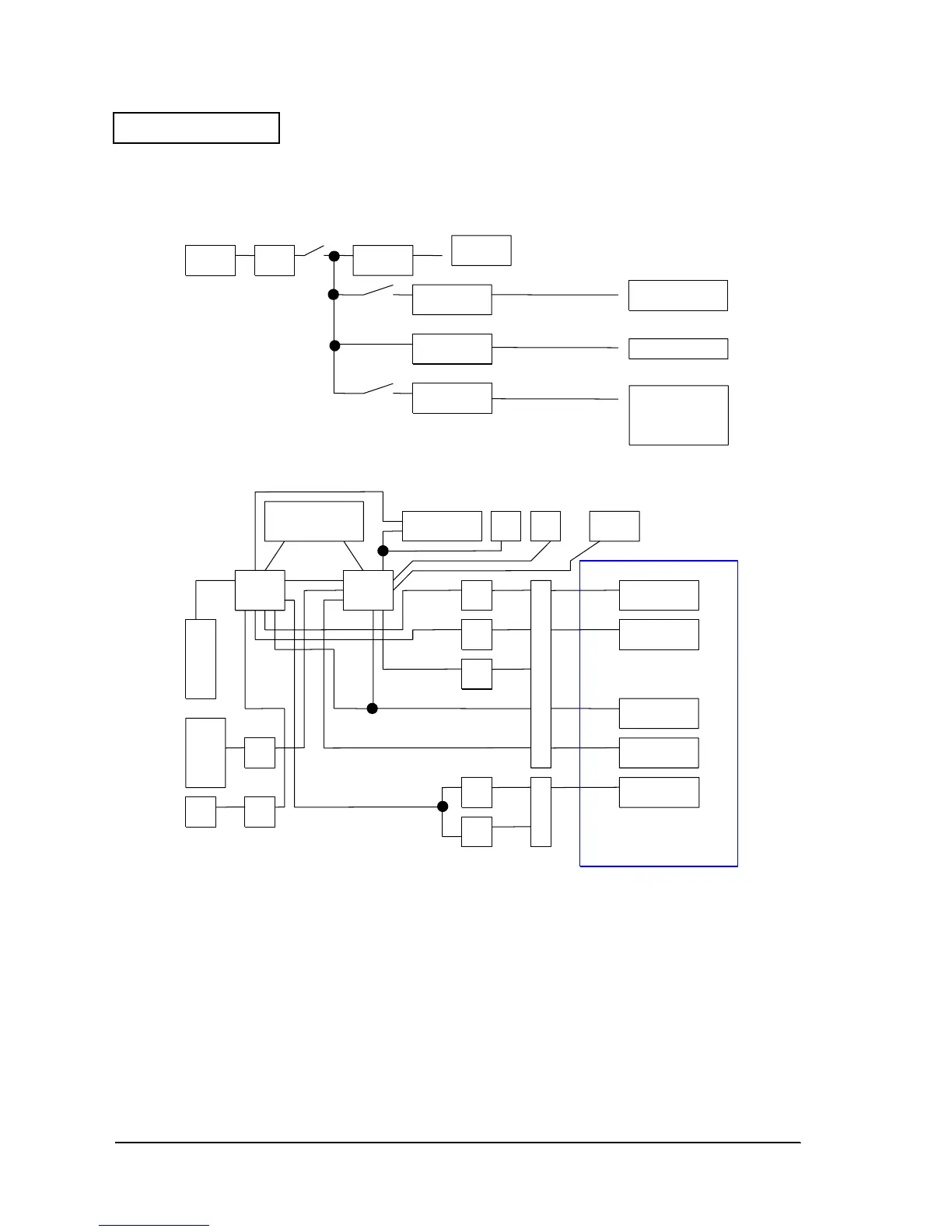

Circuit Block Diagram
In the circuit block diagram below, the circuit units in this printer are divided into main units.
(A/C is autocutter.)
Figure D-52
The circuit board consists of the following units:
Main circuit board
Memory circuit board (the memory circuit board is soldered to the main circuit board and
cannot be removed)
Interface circuit board (option)
CN18
Power
supply unit
VCC
Power supply
5V
Power supply
Thermal head motor
voltage supply
Thermal head
Thermal paper
feed motor
G/A
Memory board
Slip transport,/
carriage motor,
solenoids drive
voltage supply
Impact head A/C,
24VA
Power supply
24VB
Power supply
24VC
Power supply
I/F Board
DM
SLIP paper feed
SLIP carriage
Sensor
Solenoid
Impact head
LED/SW
DKD
U17
U14
Q25
Q20
U19
QM3
QM6
QM10
QM11
Q5
SW
Q17
Q45
Mechanism unit
(U30)
CPU
(U3)
CN30
CN28
A/C
