Epson TM-H6000 Service Manual

Rev. A Installation C-3
TM-H6000/H6000P Service Manual
Confidential
Connecting to a Direct Connection Display Module
WARNING:
Be sure not to connect this cable to the drawer kick-out connector, which is next to the
power connector.
Also do not connect a telephone line to the display module connector.
Note:
The DM connector can be used only with the serial interface model of this printer.
1. Make sure the printer is turned off.
2. Plug the cable connector (provided with the direct connection display module) securely into
the printer’s display module connector until it clicks.

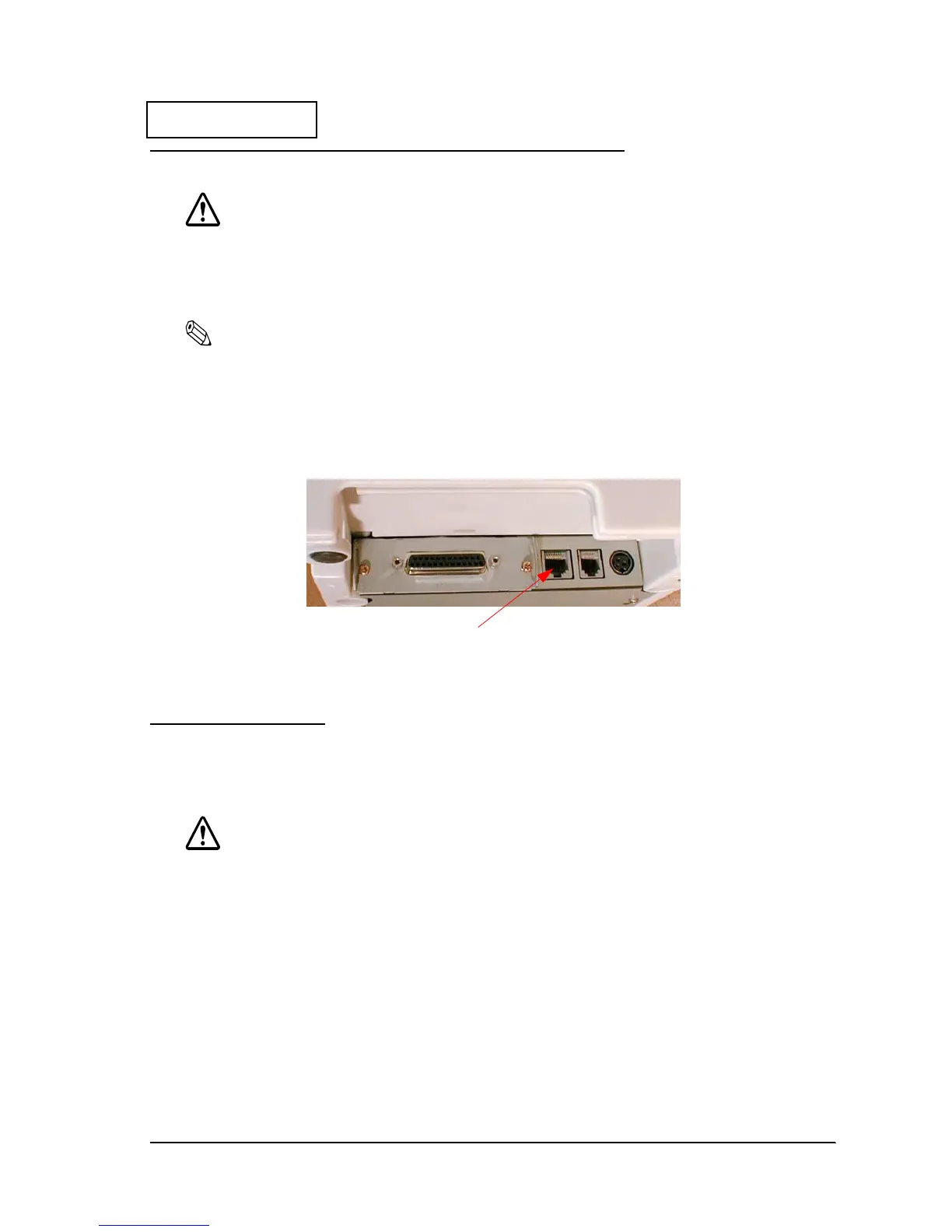

Figure C-5 Connecting to a direct connection display module
Power Connection
Use the optional EPSON PS-170 power supply or equivalent for your printer.
WARNING:
Make sure you use the EPSON PS-170 power supply or equivalent. Using an incorrect
power supply may cause fire or electrical shock.
DM connector
