C-4 Installation Rev. A
Confidential
CAUTION:
When connecting or disconnecting the power supply from the printer, make sure that
the power supply is not plugged into an electrical outlet. Otherwise you may damage
the power supply or the printer.
If the power supply’s rated voltage and your outlet’s voltage do not match, contact
your dealer for assistance. Do not plug in the power cord. Otherwise you may damage
the power supply or the printer.
1. Make sure the printer’s power switch is turned off, and the power supply’s power cord is
unplugged from the electrical outlet.
2. Check the label on the power supply to make sure the voltage required by the power supply
matches that of your electrical outlet.
3. Plug the power supply cord into the connector shown below.

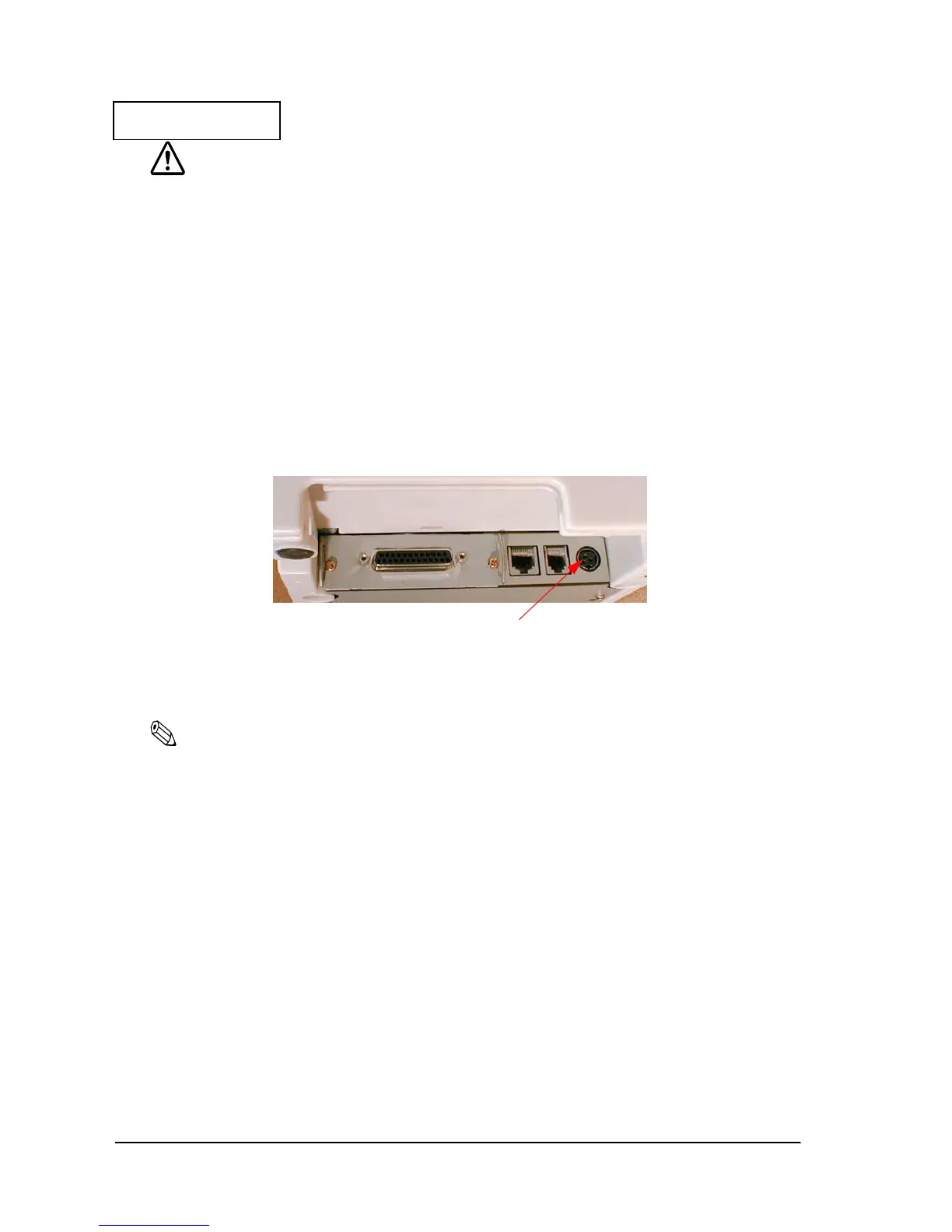

Figure C-6 Power connection
Note:
To remove the DC cable connector, make sure the power supply’s power cord is unplugged; then grasp the
connector at the arrow and pull it straight out.
power supply connector
