Epson TM-H6000 Service Manual

Rev. A Product Overview Appendix D-41
TM-H6000/H6000P Service Manual
Confidential
Outline of Circuit
Connection of Units
This printer consists of the following main units:
❏ Thermal mechanism unit
❏ Impact head
❏ Impact mechanism drive unit
❏ Main circuit board unit
❏ Memory circuit board unit

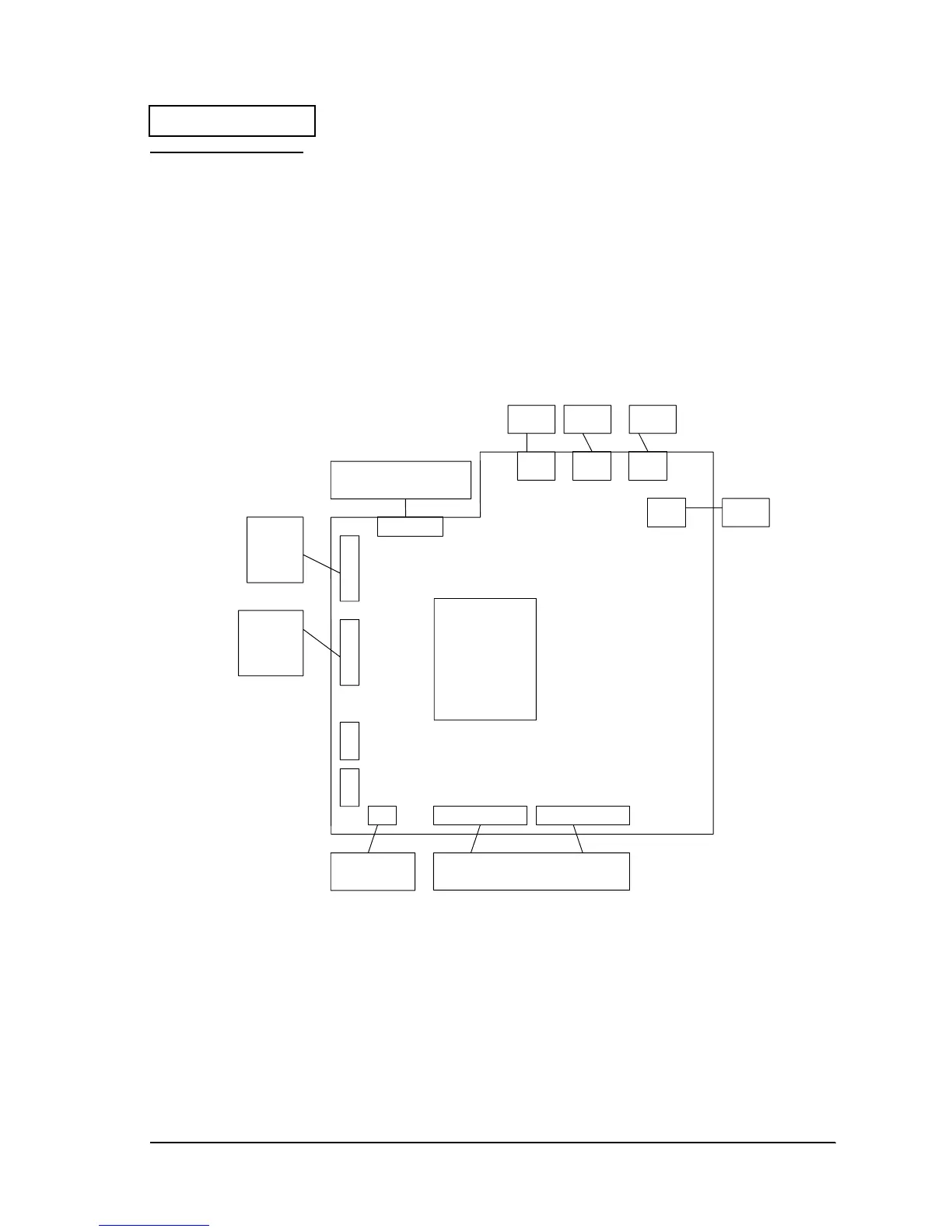

Figure D-51
Note: A/C = autocutter
CN8
DKD
DM
Memory circuit
board
(ROM,RAM)
I/F board
Power
supply unit
Maincircuit
board assembly
Thermal
Mechanism
(Paper feed,
A/C)
Thermal
head
CN9 CN18
CN29
Switch
CN2
CN22
CN23
CN1 CN27
CN30 CN28 CN6
Panel Switch
LED
Slip Mechanism Unit
(Paper feed,Carriage,Impact head)
