3-2 Adjusting Rev. A
Confidential
Adjusting
Phase Adjusting
Perform phase adjustments when you have performed any one of the followings.

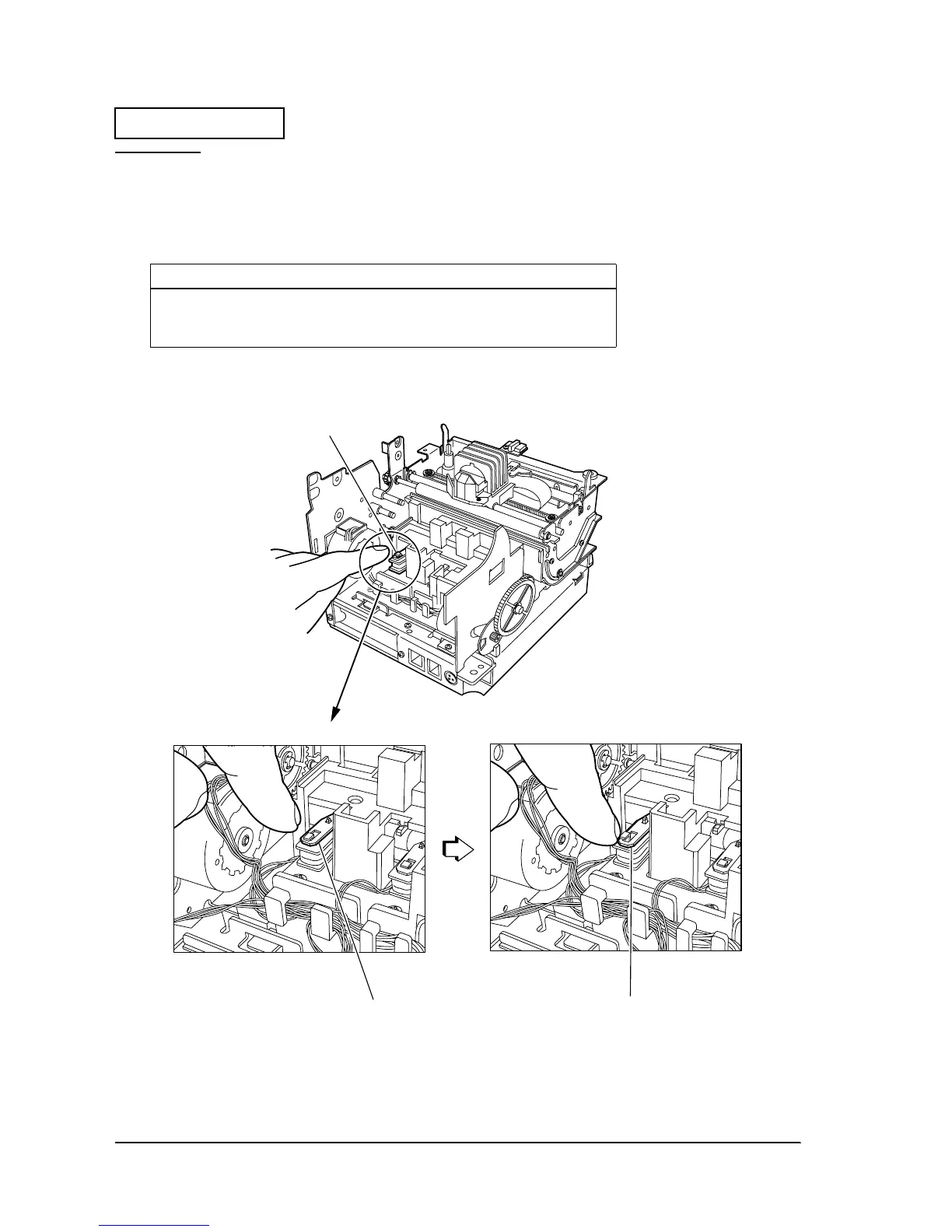

1. Push the claw of the lever drive coil (type B).
Figure 3-1
Items Requiring Phase Adjustment
❏
When you replaced or removed the lever drive gear.
❏
When you replaced or removed the lever drive transmission gear.
❏
When you replaced or removed the platen lever drive cam.
Lever drive coil (type B)
Claw when raised
Claw when pushed
To Next Page
