C-2 Installation Rev. A
Confidential
Note:
Your printer has inch-type hexagonal lock screws installed. If your interface cable requires
millimeter-type screws, replace the inch-type screws with the enclosed millimeter-type screws using a
hex screwdriver (5 mm).

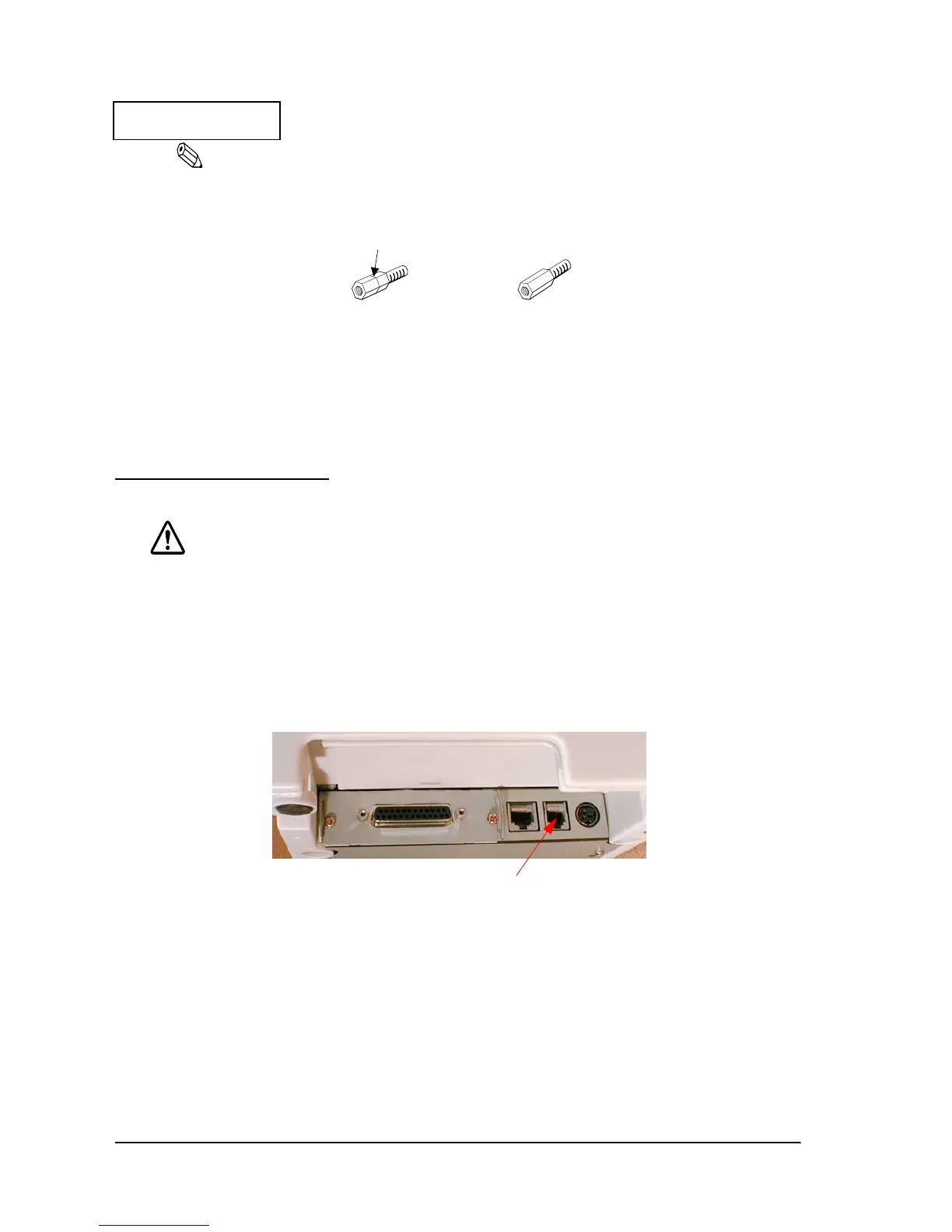

Figure C-3 Inch screw and millimeter screw
3. If your interface connector has a grounding wire, attach it to the printer using the screw
labeled FG, which is next to the interface connector.
4. Attach the other end of the cable to the host PC.
Connecting the Drawer
WARNING:
Use a drawer that matches the printer specifications. Using an improper drawer may
damage the drawer as well as the printer.
Do not connect a telephone line to the drawer kick-out connector; otherwise the printer
and the telephone line may be damaged.
Plug the drawer cable into the drawer kick-out connector on the connector panel in the location
indicated below.
Figure C-4 Connecting the drawer
inch screw
millimeter screw
drawer kick-out connector
