Locations of the Main Elements on the Main Circuit Board Unit
The following shows the locations of the main elements on the main circuit board unit.

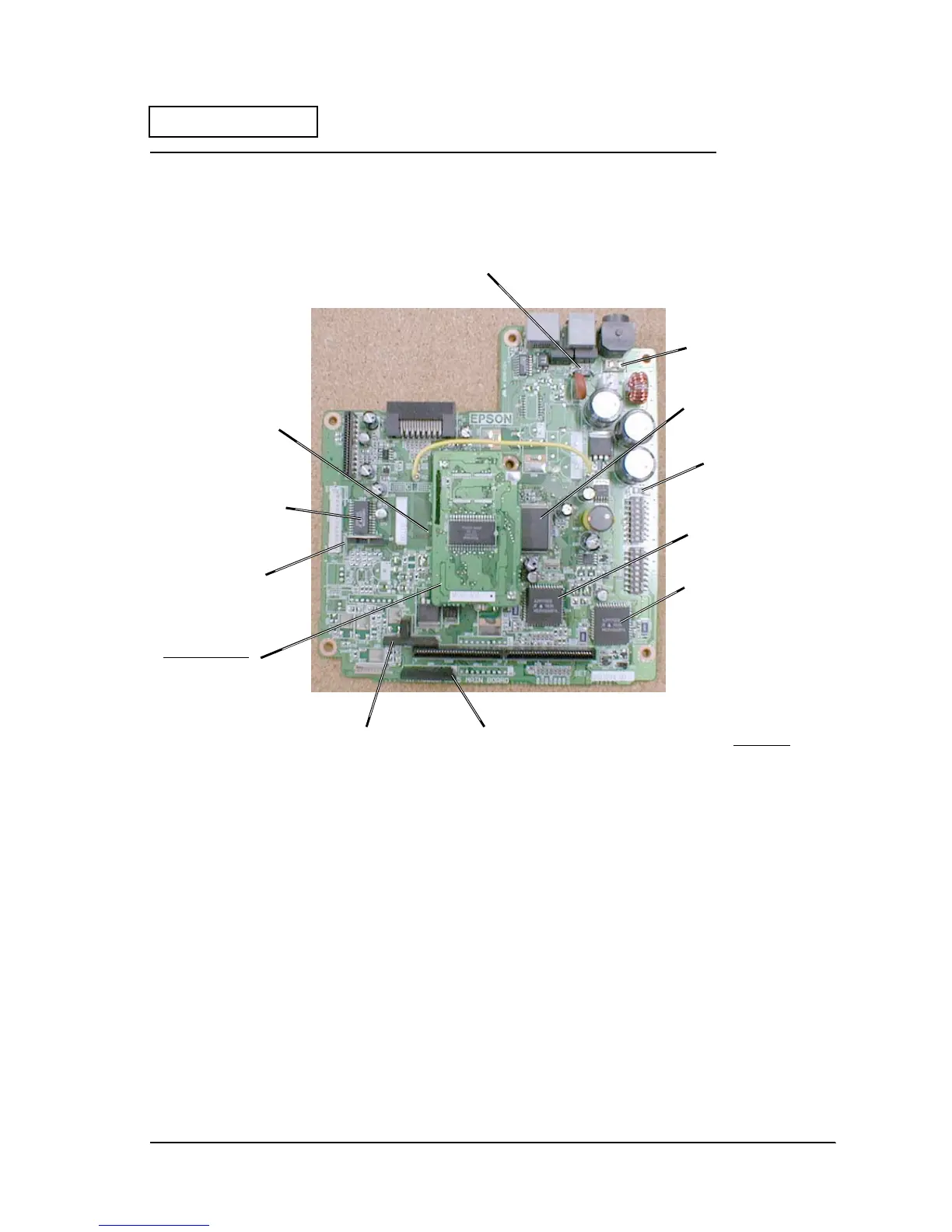

Figure 1-6 Locations of the main elements on the main circuit board unit
Fuse (F1)
Fuse (F2)
Fuse (F3)
*Rear side
Fuse (F4)
Fuse (R3)
CPU (U3)
Gate array (U30)
*under the
memory board
Carriage motor
controller (U14)
Autocutter motor
driver (Q5)
Slip paper feed motor
controller (U17)
Thermal paper feed
motor controller (U19)
Impact dot head
drivers (QM3)
Impact dot head
drivers (QM6)
Memory board
Font ROM (U513)
Program ROM (U508)
SRAM (U509)
