Pre-assembly of the Front Cover Detector Assembly
1. Solder lead wires V, U, W in that order to the front cover detector assembly.
Note:
Check that the soldering is secure.

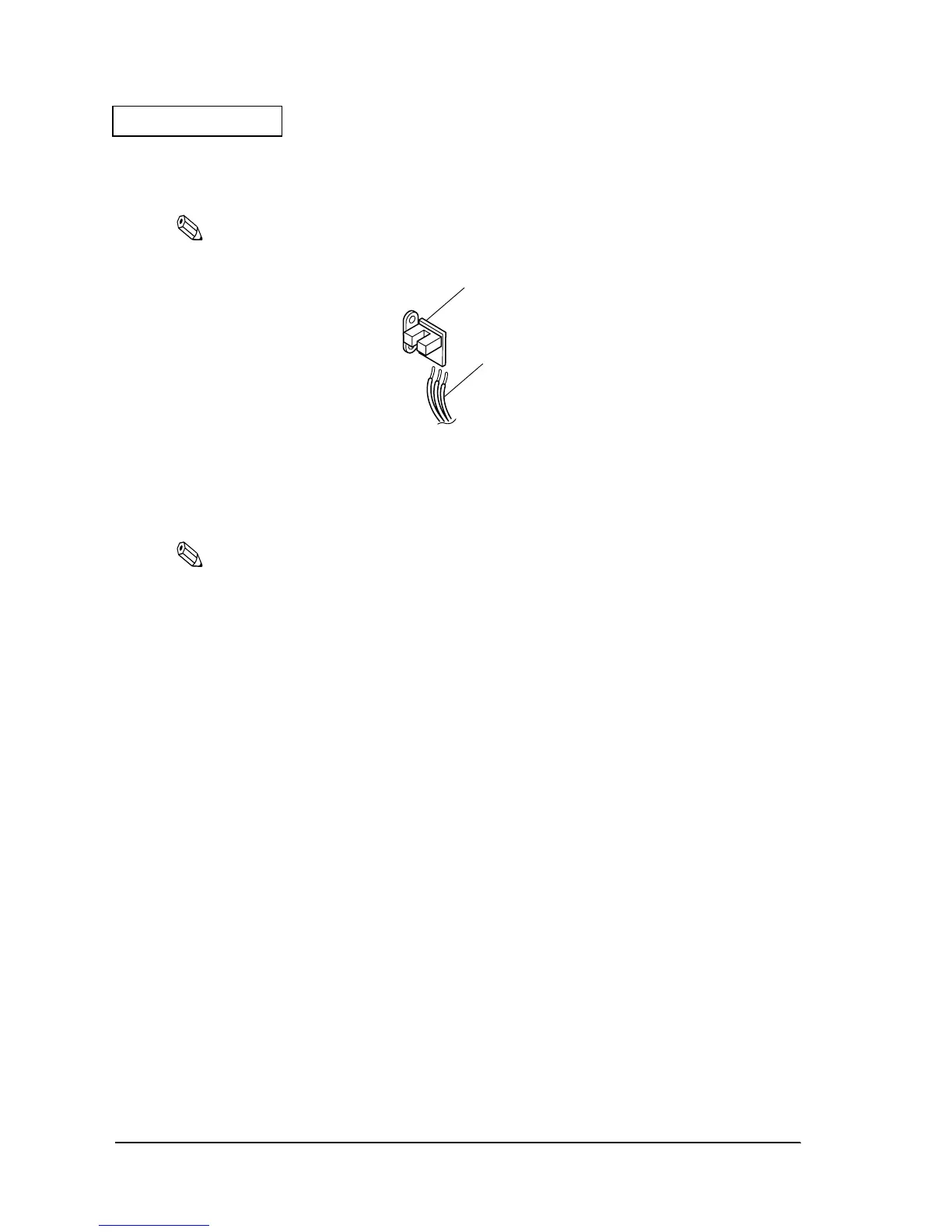

Figure 2-11
Pre-assembly of the Paper Ejection Detector Assembly
1. Solder paper ejection detector cable assembly.
Note:
Check that the soldering is secure.
2. Assemble the paper ejection detector assembly and the paper ejection detector holder. Insert
into the paper ejection detector holder rack, and align with one nib. (Fix with one screw, as
shown below.)
3. Insert the paper ejection detector cable assembly cable into the carriage cover frame. Check
the starting position for inserting the cable.
664
Front cover detector
assembly
721 Lead wire (type W)
720 Lead wire (type V)
719 Lead wire (type U)
