Disassembly and Assembly 2-16 Rev. A
Confidential

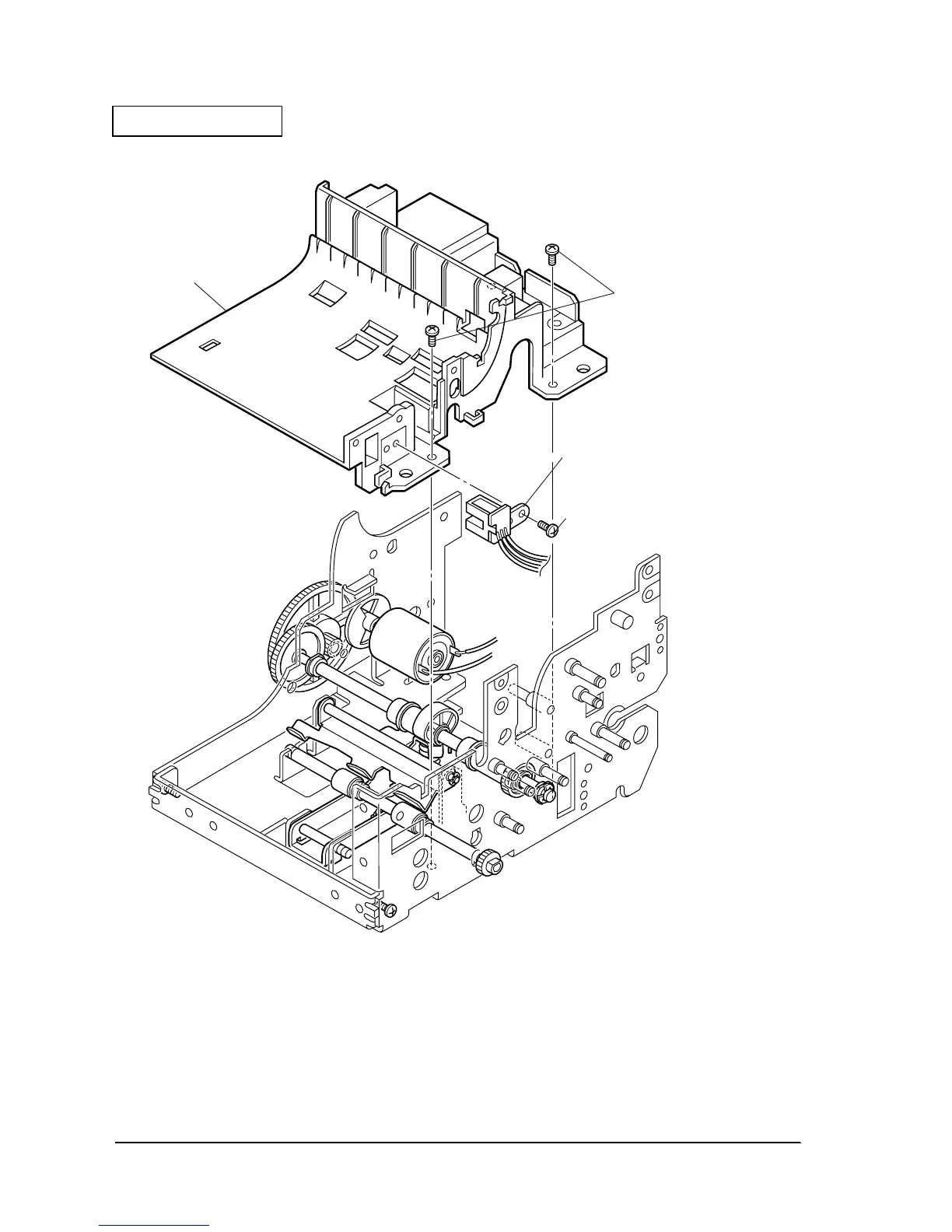

25. Attach the slip guide lower frame to the main sub assembly frame with two screws.
26. Insert the sub slip hold sleeves into both ends of the sub slip hold roller.
27. Temporarily assemble the front frame and the slip guide upper frame. Insert the D-cut side
of the sub slip holder roller to the left, align the two nibs, and temporarily assemble.
646
Slip guide lower frame
(type B)
691
screw(C.B.S-tite F,3X6)
608
screw(C.B.P-tite,3X6)
668
Slip B.O.F. detector
assembly
To Next Page
