47. Tighten the two screws on the upper case and lower case.

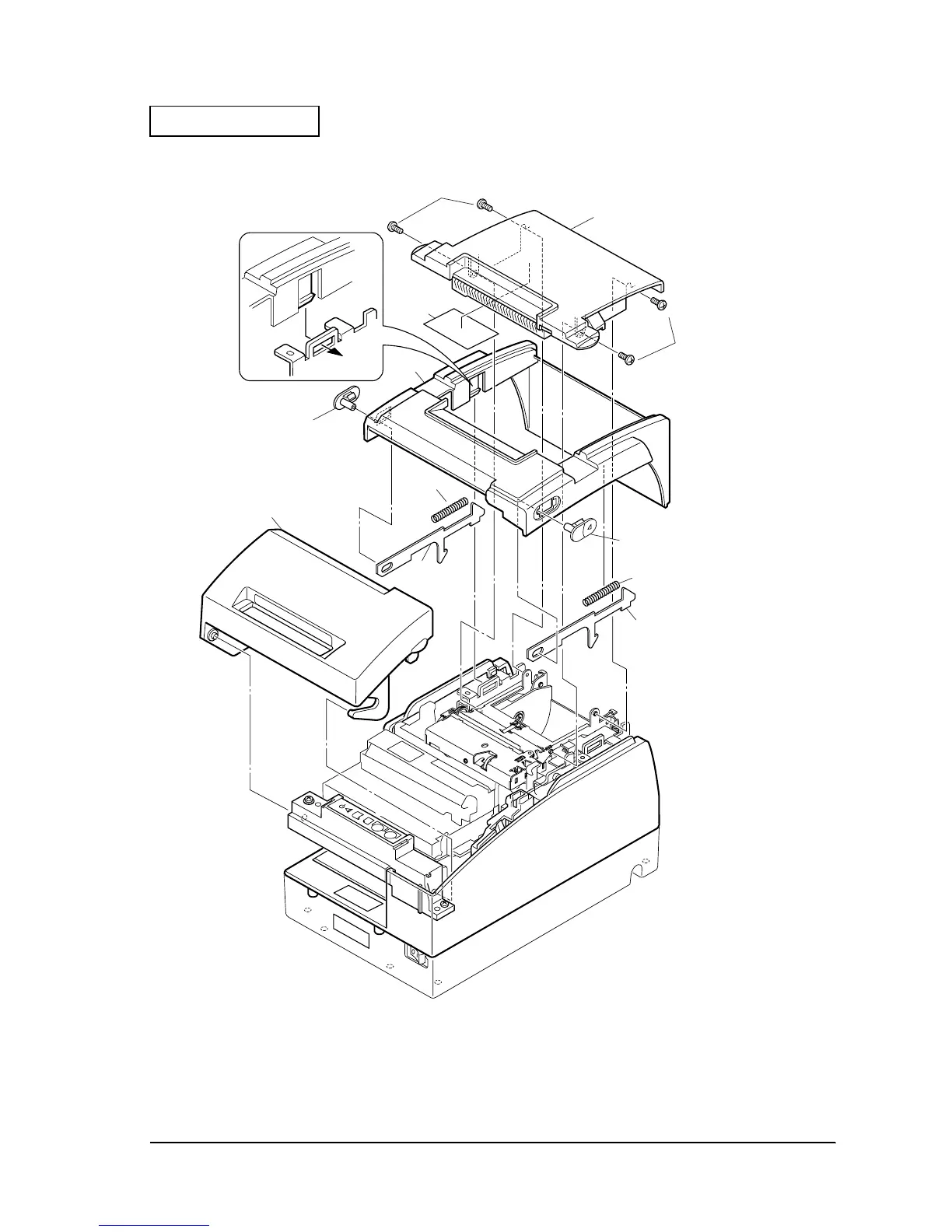

Figure 2-30
101
screw(C.B.S-tite F,3X4)
140
Operation label
(type CA)
101
screw(C.B.S-tite F,3X4)
135
Thermal mechanism cover
123
Thermal
case
134
Thermal button
134
Thermal button
133
Hook spring
133
Hook spring
129
Hook plate
129
Hook plate
121
Ribbon cassette cover
