Epson TM-H6000 Service Manual

Rev. A Disassembly and Assembly 2-39
Confidential
TM-H6000/H6000P Service Manual
57. Affix a front label AA.

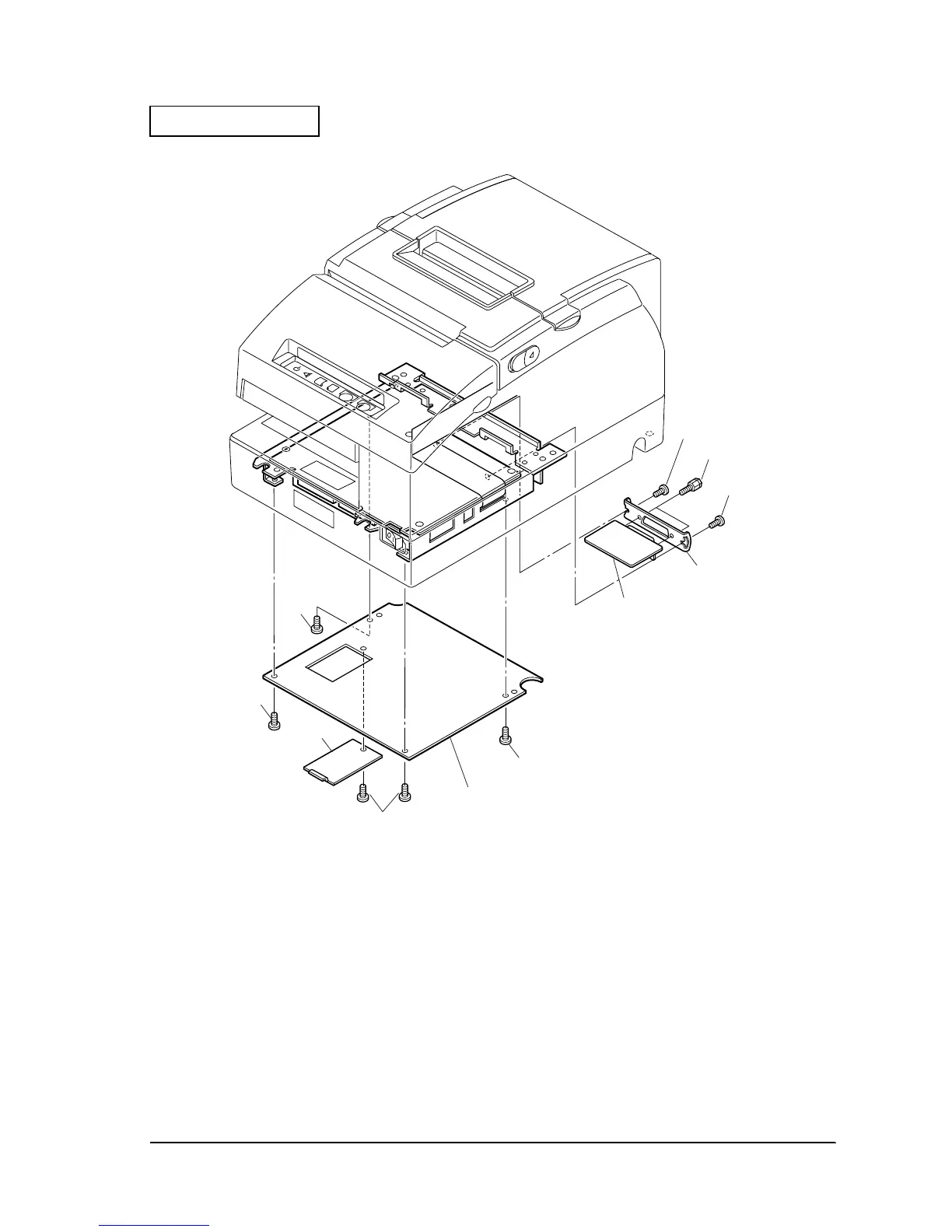

Figure 2-31
58. Perform the platen gap adjustment. (See Chapter 3, "Adjusting and Setting")
106
screw(C.B.S-tite F,3X6)
116
Connector plate
(type AA))
107
screw(C.P.S-tite(0),3X6)
202
RS-232 I/F circuit board assembly
106
screw
(C.B.S-tite F,3X6)
106
screw(C.B.S-tite F,3X6)
136
Lower plate
111
IC cover
106
screw(C.B.S-tite F,3X6)
144
Hexagon lock screw
(millimeter type)
107
screw
(C.P.S-tite(0),3X6)
