Epson TM-H6000 Service Manual

Rev. A Adjusting 3-7
TM-H6000/H6000P Service Manual
Confidential
6. Lubricate the platen lever drive cam shaft.
7. Assemble the platen lever drive cam to the platen lever drive cam shaft (E-ring, 1 place). Set
so that the three gear teeth of the platen lever drive cam are facing downward.

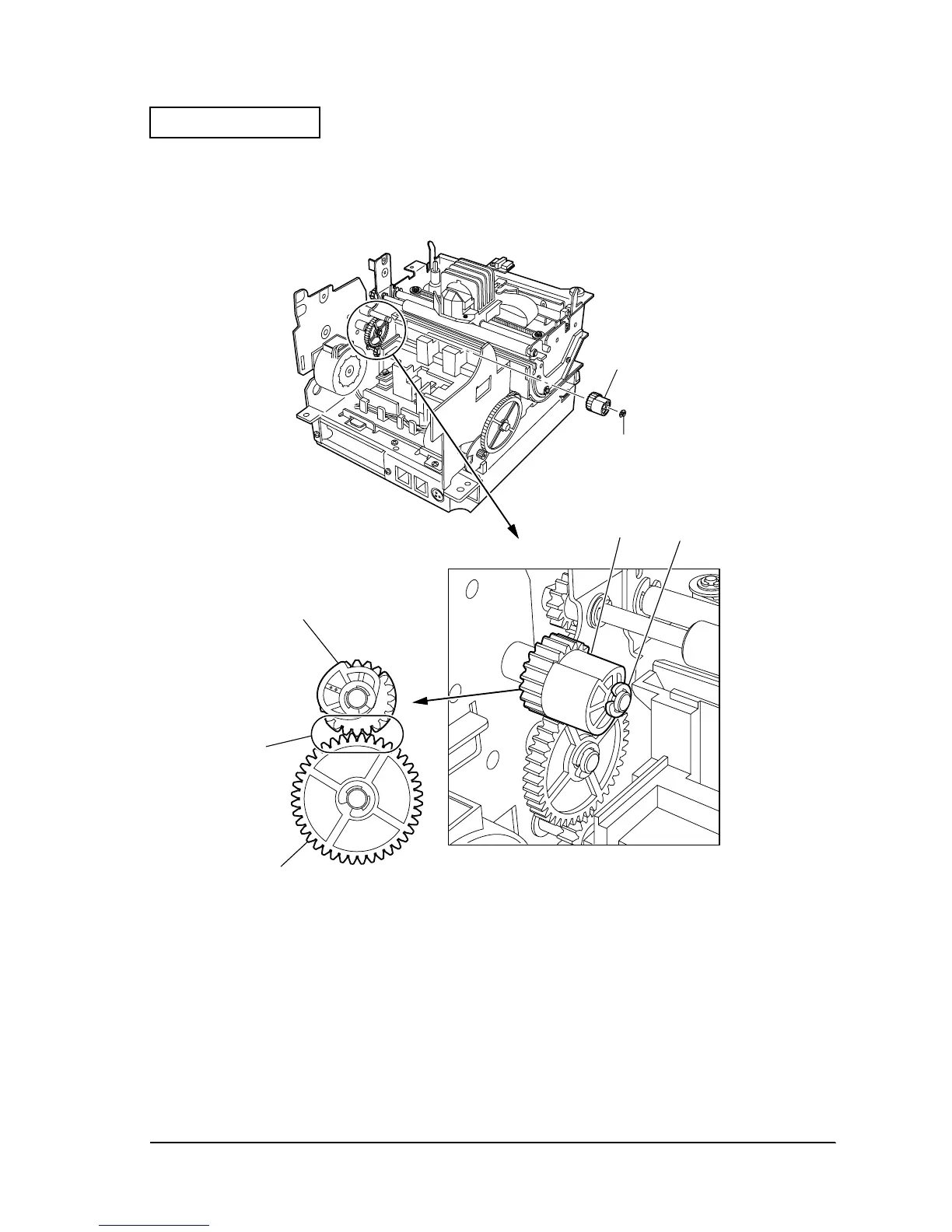

Figure 3-6
three teeth of
the gear
Platen lever
drive cam
E-ring
E-ring
Platen lever
drive cam
Laver drive
transmission
gear
Platen lever
drive cam
