SMART-2 Multi Functional Wireless Weighing Indicator User Manual
________________________________________________________________________________________________
Page 24

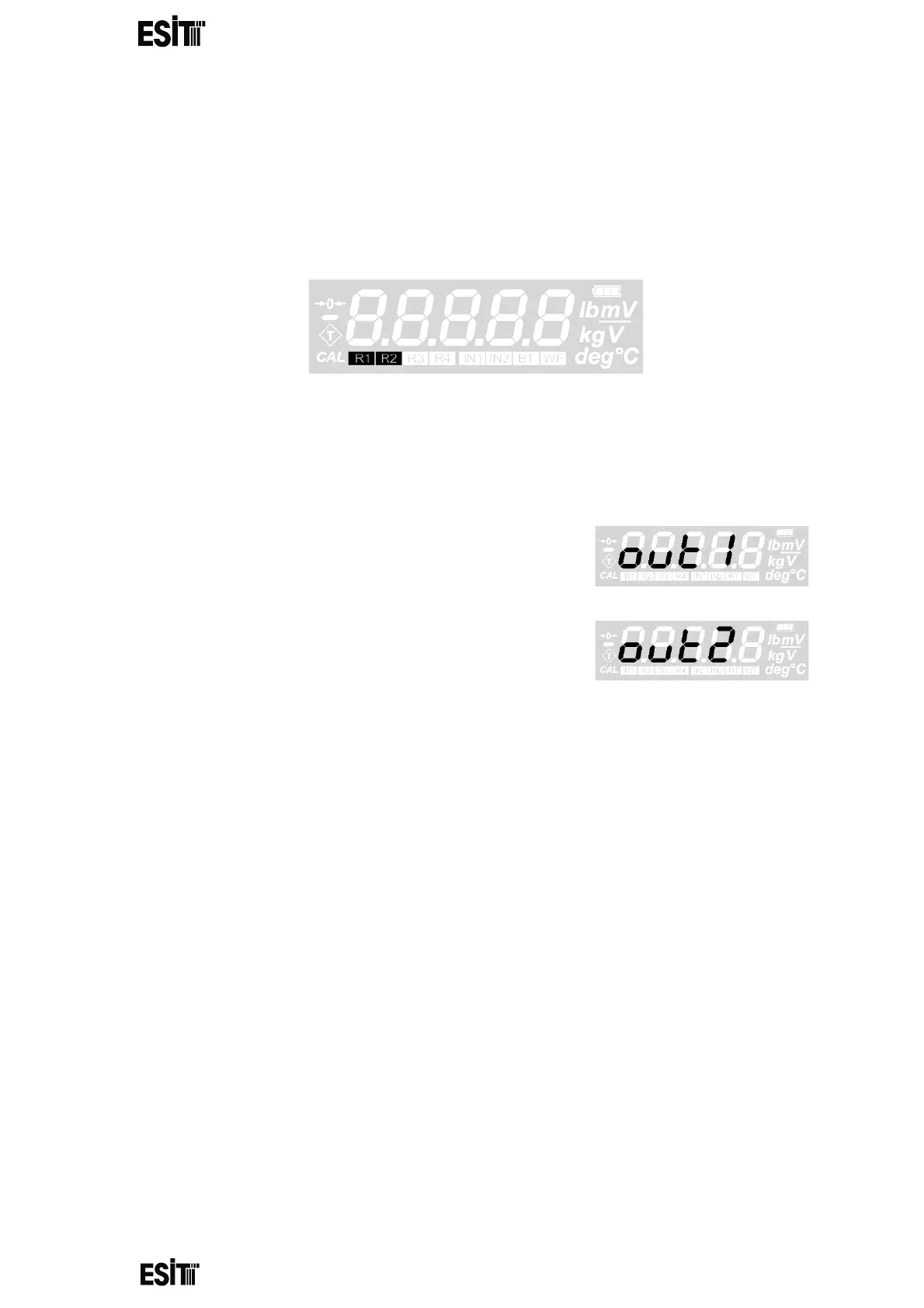

RELAY SETTINGS
When the relay contacts are closed, the warning segments (R1 and R2) of that
relay are lit on the display.
The relays are active in '-' direction just like they are in '+' positive one.
For example; if the contacts of relay 1 is set to be closed circuit for the set value
of 1000 and above, relay contacts will also be closed for the values -1000 and
below.
Opens the menus related to relay 1
Opens the menus related to relay 2
