SMART-2 Multi Functional Wireless Weighing Indicator User Manual

________________________________________________________________________________________________

Page 38

COMMUNICATION DATA LENGTH SETTING

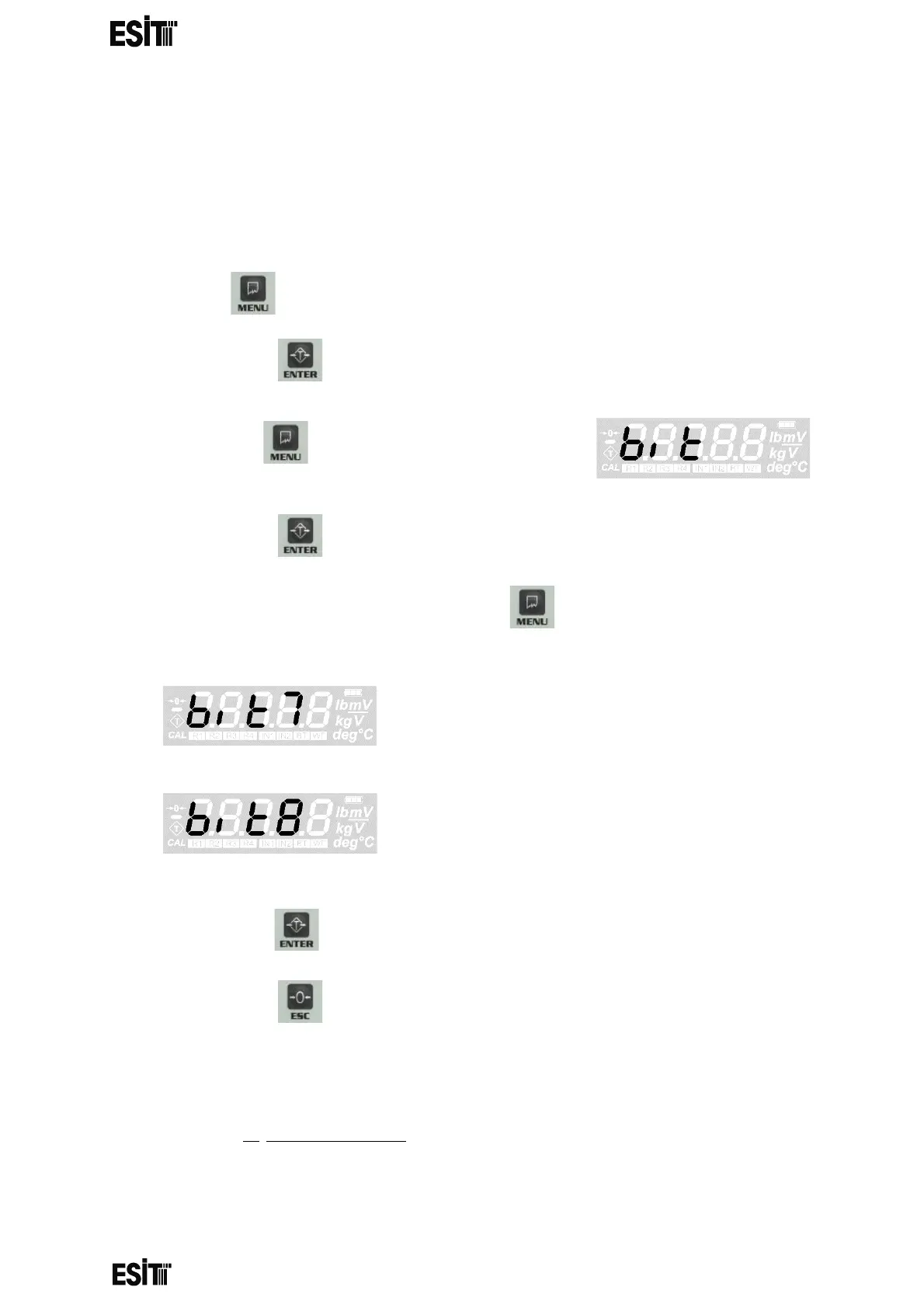

The length of the data bits to be used for communication is set by this menu. With

this parameter setting, 128 different characters can be defined in 7 bit

communication. 256 different character definition is possible only if 8 bits = 1 byte

communication is selected.

(1) Press key until you reach the 'Communication' menu

(2) Press the key to confirm the menu

(3) Press key until you reach the

'Communication data length' menu

(4) Press the key to confirm the menu

(5) Set the data length as you desire with menu key.

then 7 bit communication

then 8 bit communication

(6) Press the key to save the communication data length setting.

(7) Press the key to go back to the measurement screen.

NOTE: For example, the ASCII code equivalent of the character 'A' is 41 in the

hexadecimal (hex) system; By setting the data length, transfer is performed as

follows:

6. 5. 4. 3. 2. 1. 0.

7 bit

x 1 0 0 0 0 0 1

8 bit

0 1 0 0 0 0 0 1
