SMART-2 Multi Functional Wireless Weighing Indicator User Manual
________________________________________________________________________________________________
Page 30
ANALOG OUTPUT (DAC) SETTINGS
ANALOG OUTPUT CALIBRATION
In order for the weight information on the SMART-2 display to be used in voltage
or current controlled automation devices, the analogue output must have been
calibrated correctly.
Calibration must be performed after selecting the voltage (0-5V) or current (4-20mA)
mode. See the "CONNECTIONS AND MODE SELECTIONS" section of your
manual for the selection of the analog output mode.
LVAL refers to DAC LOWEST OUTPUT VALUE
HVAL refers to DAC HIGHEST OUTPUT VALUE
DMAX refers to DAC MAXIMUM OUTPUT VALUE and

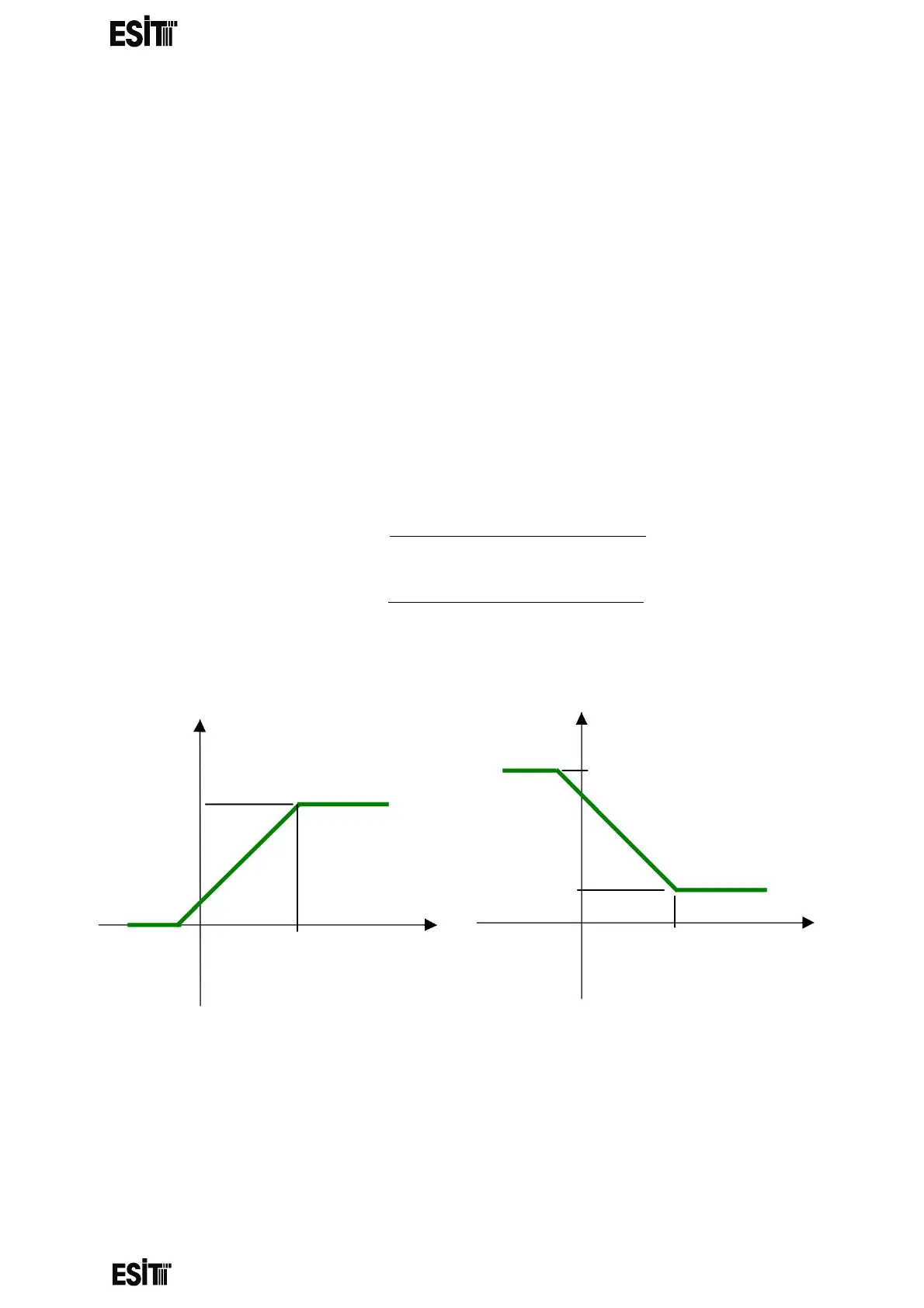

Analog output value = LVAL +
(| − | ×  )

  > 
Analog output value = LVAL −
(| − | ×  )

  > 
Analog output
Analog output
V or mA
V or mA
Maximum DAC internal count
HVAL
LVAL
LVAL
HVAL
DMAX
Display
DMAX
Display
value
value
If set as HVAL > LVAL If set as LVAL > HVAL
NOTE: The maximum DAC internal count value can be 4095.
