SMART-2 Multi Functional Wireless Weighing Indicator User Manual
________________________________________________________________________________________________
Page 31
DAC LOWEST OUTPUT VALUE (LVAL) SETTING
It is used to determine the value to be obtained from the analogue output for
the zero value on the screen.

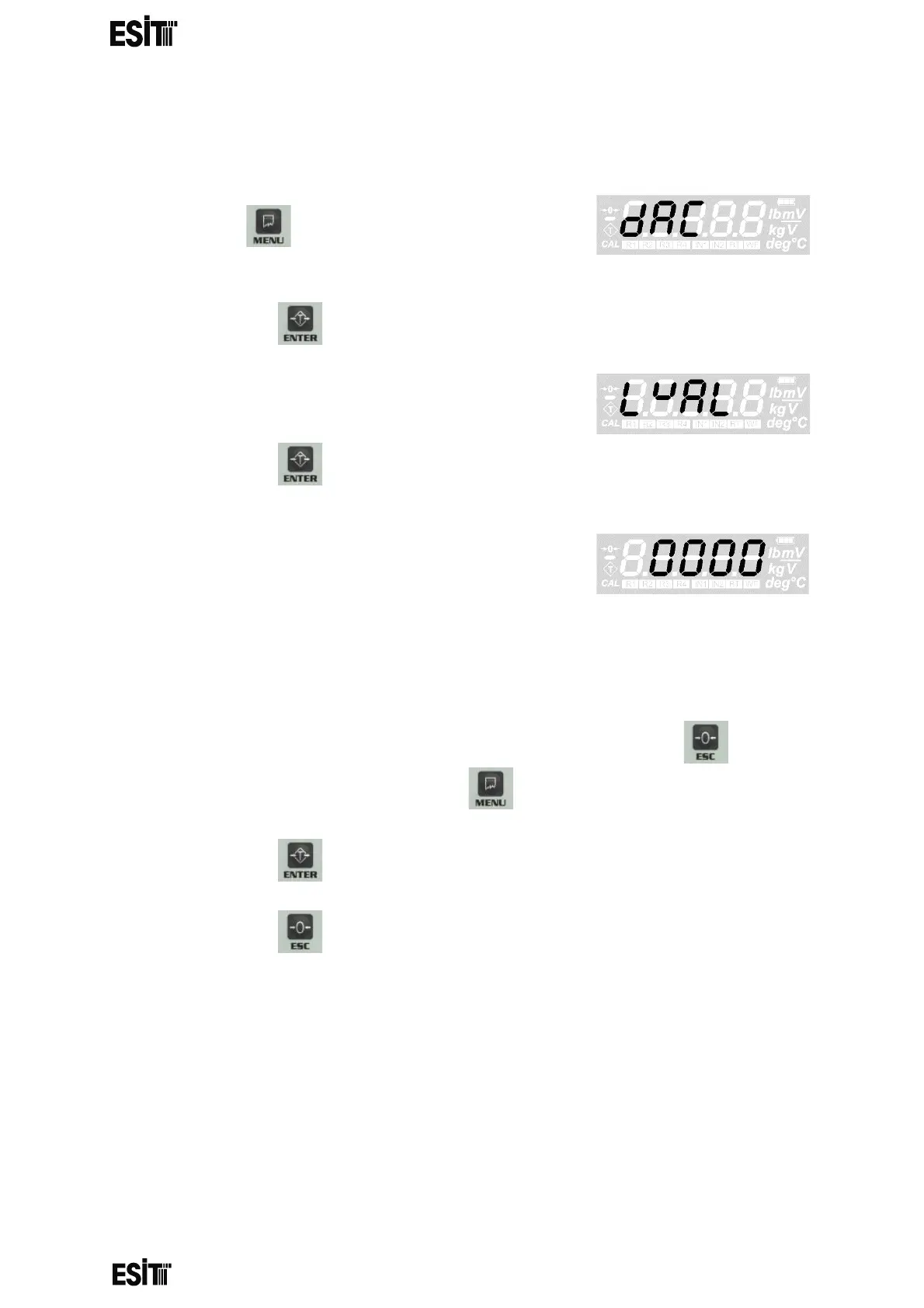

(1) Press key until you reach the 'DAC' menu
(2) Press the key to confirm the menu
(3) The first option is the 'DAC lowest output
(LVAL) value' menu.
(4) Press the key to confirm the menu
(5) The last recorded DAC lowest output (LVAL)
value will be displayed on the screen and the
thousands digit blinks at the same time
NOTE: WHILE CHANGING THE LVAL VALUE, THE ANALOGUE OUTPUT
VALUE FOR
FOR THAT VALUE CAN BE OBSERVED.
(6) Numeric value of the blinking digit can be increased with key. The
place value can be changes with key.
(7) Press the key to save DAC lowest output (LVAL) value.
(8) Press the key to go back to the measurement screen.
