SMART-2 Multi Functional Wireless Weighing Indicator User Manual
________________________________________________________________________________________________
Page 7

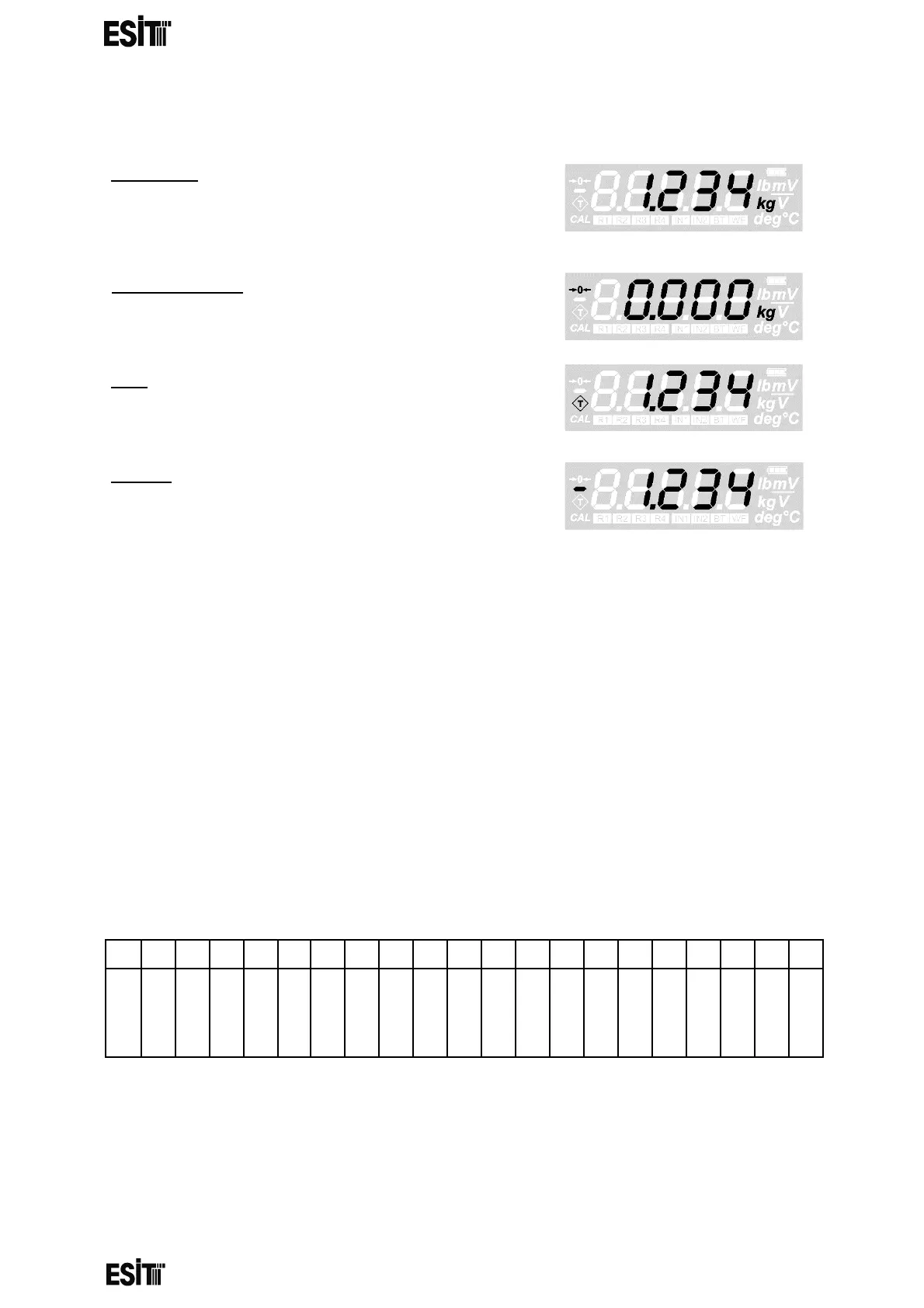

INDICATORS
UInactivity:U The display value indicates that
inactivity has been detected within ±2e range for 2
seconds and kg segment is highlighted on the
display. (e: increment step on the display)
UAbsolute zero:U Indicates that display value is 0
and internal counting value is less than 1/4e.
UNet:U Indicates taring operation is in
progress
UMinus:U Indicates that the display value is negative.
INDICATOR CONNECTIONS
In the printed circuit of the indicator, the connections are as follows provided that
the leftmost terminal slot is number 1. See 'Connection and mode selection'
section for more details.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
-LC 1 input
+LC 1 input
-LCFeed
+LCFeed
LCGround
0V GND
+V (6-24V)
-Io
+Io
+Vo
GND
DI2
DI1
RL 2/1
RL 2/2
RL 1/1
RL 1/2
RS485VCC
Rx / B
Tx / A
RS485GND
