Corrective Maintenance
5-12 © Essemtec AG Fox Maintenance
0000074/05
/ March 31, 2017

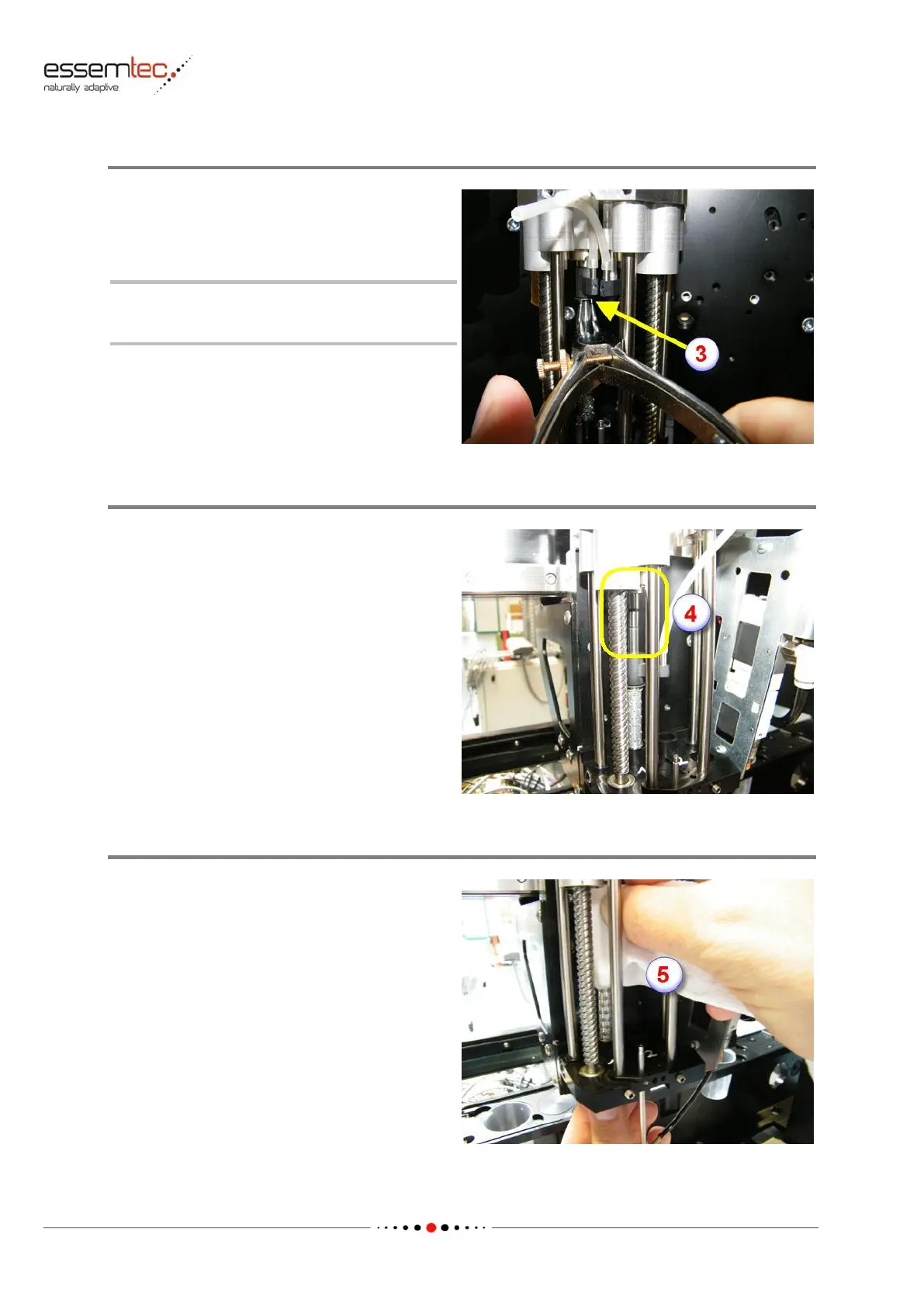

Release Circlip
By means of a precision circlip plier and 90°
angled tips, release the circlip (3) and push it
downwards.
Note:
Be very carefully and do not bend circlip
out of shape.
Move down Feedthrough Piece
Move feedthrough piece down to expose the
recesses in the shaft of the ZT axis (4).
Clean and Lubricate the Feedthrough
Clean dust, using IPA Isopropyl alcohol and a
soft lint-free cloth (5) and with a cotton tip.
