Calibration of the Machine
Fox Maintenance © Essemtec AG 3-7
0000074/05
/ March 31, 2017
Re-install the machine
Remove the glass plate (after all calibration tasks
which are using the glass plate).

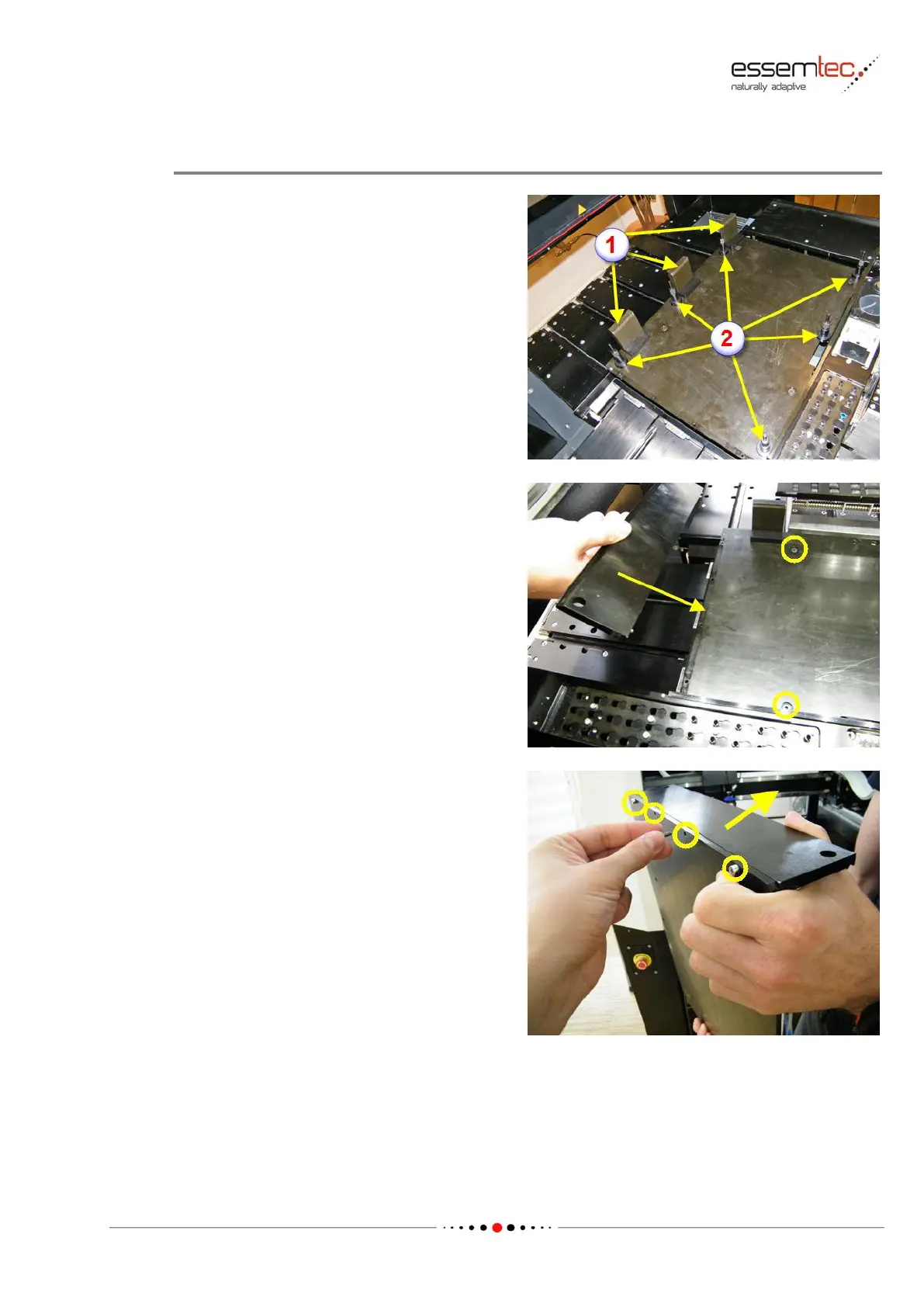

Remove all the PCB holders (1) and support pins
(2).
The left PCB holder has to be mounted on the
PCB table.
For this purpose, loosen and remove the four
fixing screws of the PCB table.
Lift up the PCB table.
Put on the left PCB holder to the PCB table. For a
precise positioning of the left PCB holder (right
angle), it is pinned.
Screw in and tighten the four fixing screws.
