Ethos v1.5.7 and X18, X20 series User Manual

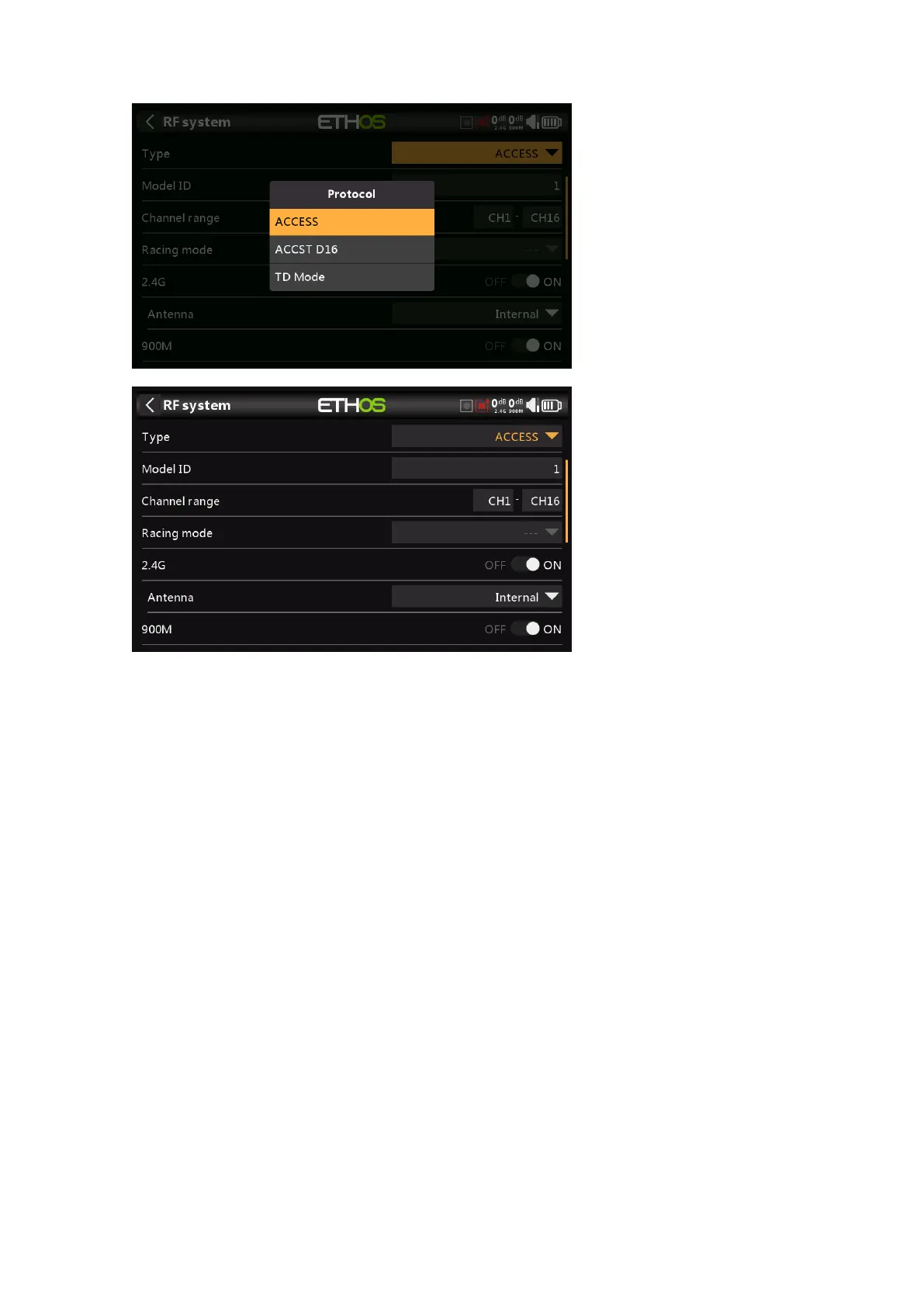

Type: ACCESS
ACCESS changes the way receivers are bound and connected with the transmitter. The
process is broken into two phases. The first phase is registering the receiver to the radio
or radios it is to be used with. Registration only needs to be performed once between
each receiver / transmitter pair. Once registered, a receiver can be bound and re-bound
wirelessly with any of the radios it is registered with, without using the bind button on
the receiver.
Having selected the ACCESS mode, the following parameters must be set up:
Model ID
When you create a new model, the Model ID is automatically allocated. The Model ID
must be a unique number because the Smart Match function ensures that only the
correct Model ID will be bound to. This number is sent to the receiver during binding,
so that it will then only respond to the number it was bound to. Receiver matching is
still as important as it was before ACCESS.
The Model ID can be changed manually from 00 to 63, with the default ID being 1.
Note also that the Model ID is changed when the model is cloned.
Channel range:
Since ACCESS supports up to 24 channels, you normally choose Ch1-8, Ch1-16, or
Ch1-24 for the number of channels to be transmitted. Note that Ch1-16 is the default.
The channels received by a receiver is configured in the receiver options for each
receiver.
