Ethos 1.5 Series User Manual

Ethos v1.5.7 and X18, X20 series User Manual

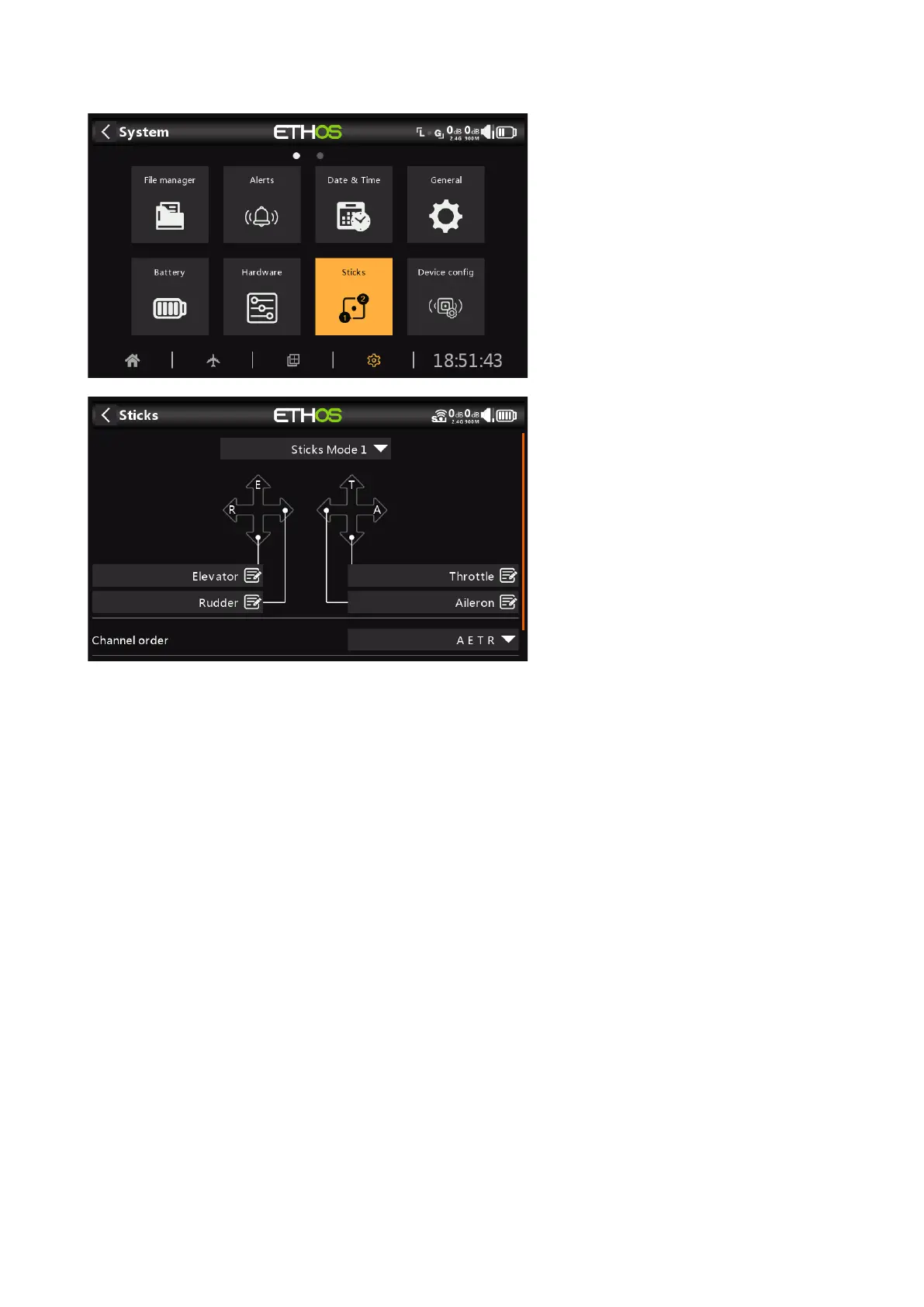

Sticks
Select your preferred stick mode. Mode 1 has throttle and aileron on the right stick, and
elevator and rudder on the left. Mode 2 has throttle and rudder on the left stick, and aileron
and elevator on the right.
By default the sticks are named as listed above for the industry standard stick modes. They
may be renamed as desired.
Channel order
The ‘Channel order’ defines the order in which the four stick inputs are assigned to channels
in the mixes when a new model is created by the wizards. The default order is AETR. If
there are more than one of each type of surface, they will be grouped unless the first four
channels are fixed, see below. For example, for 2 ailerons the channel order will be AAETR.
51 rev 2
