Ethos v1.5.7 and X18, X20 series User Manual

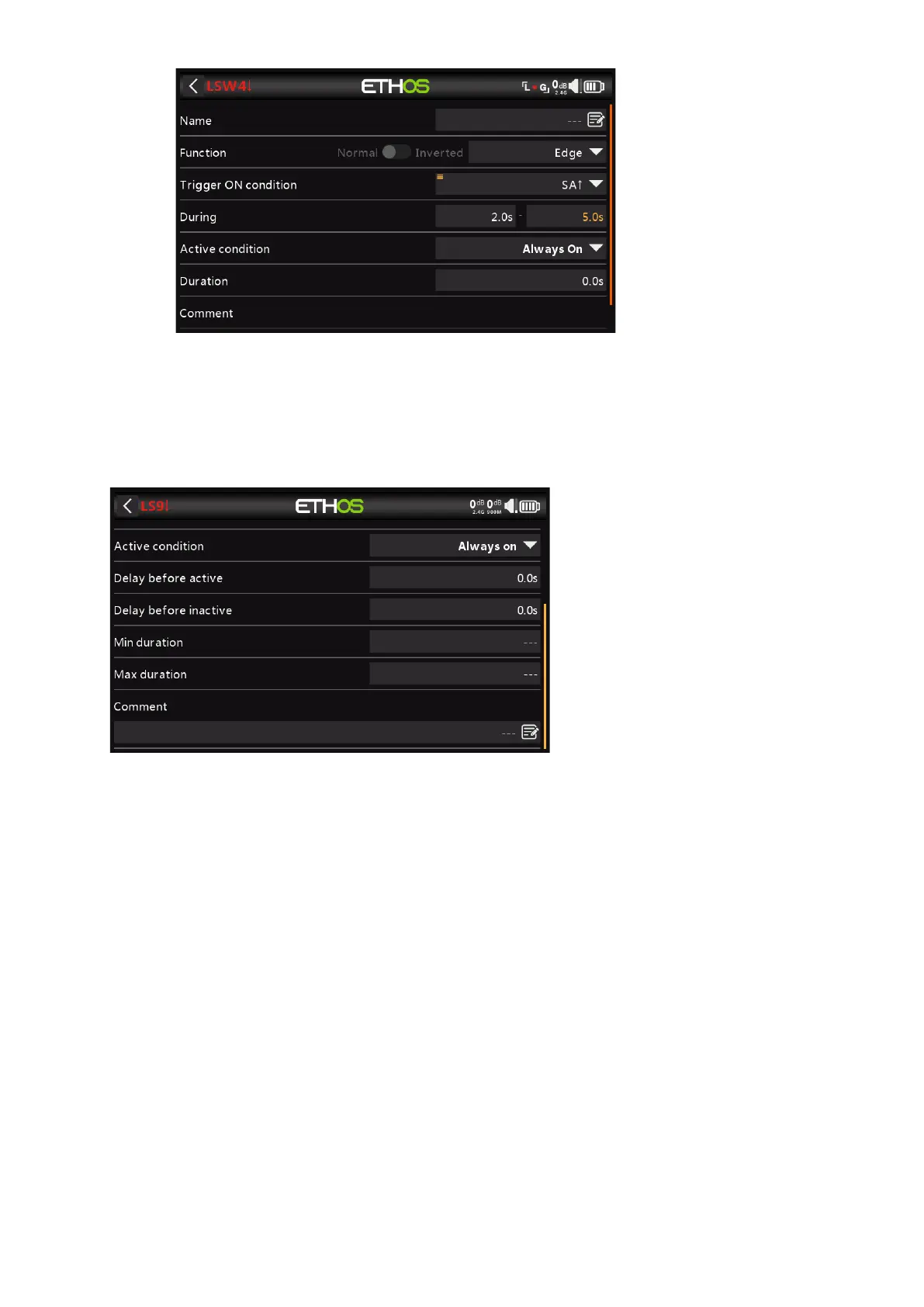

In the example above the logic switch will become True for the 'Duration' period if
the 'Trigger On condition' goes from False to True, and then goes from True to False
after at least 2 seconds but no later than 5 seconds.
Shared parameters
The logic switches all have a number of shared parameters:
Active condition
The logic switches can be gated by the optional ‘Active condition’ parameter. This means
that if the active condition is True, then the logic switch output follows the Function's
condition. However, if the active condition is False, then the logic switch output is also
held False.
The ‘Active condition’ may be selected from any of the following:
• Always on
• Switch positions
• Function switches
• Logic switches
• Trim positions
• Telemetry
• Flight modes
• System events
◦ Throttle hold
◦ Throttle cut
◦ Throttle active
◦ Telemetry active
◦ RSSI low
◦ Trainer active
245 rev 2
