Ethos v1.5.7 and X18, X20 series User Manual
The default can be altered if required, but care must be exercised to assess any other
impacts to making a change here.
Note that [ENT_long] on the selected output channel will take you directly to that page in
the Outputs.
Note also that the graph is color-coded to the outputs. In the example above Output1 is
red which corresponds to the red curve in the graph, and Output2 is orange which
corresponds to the orange curve in the graph.

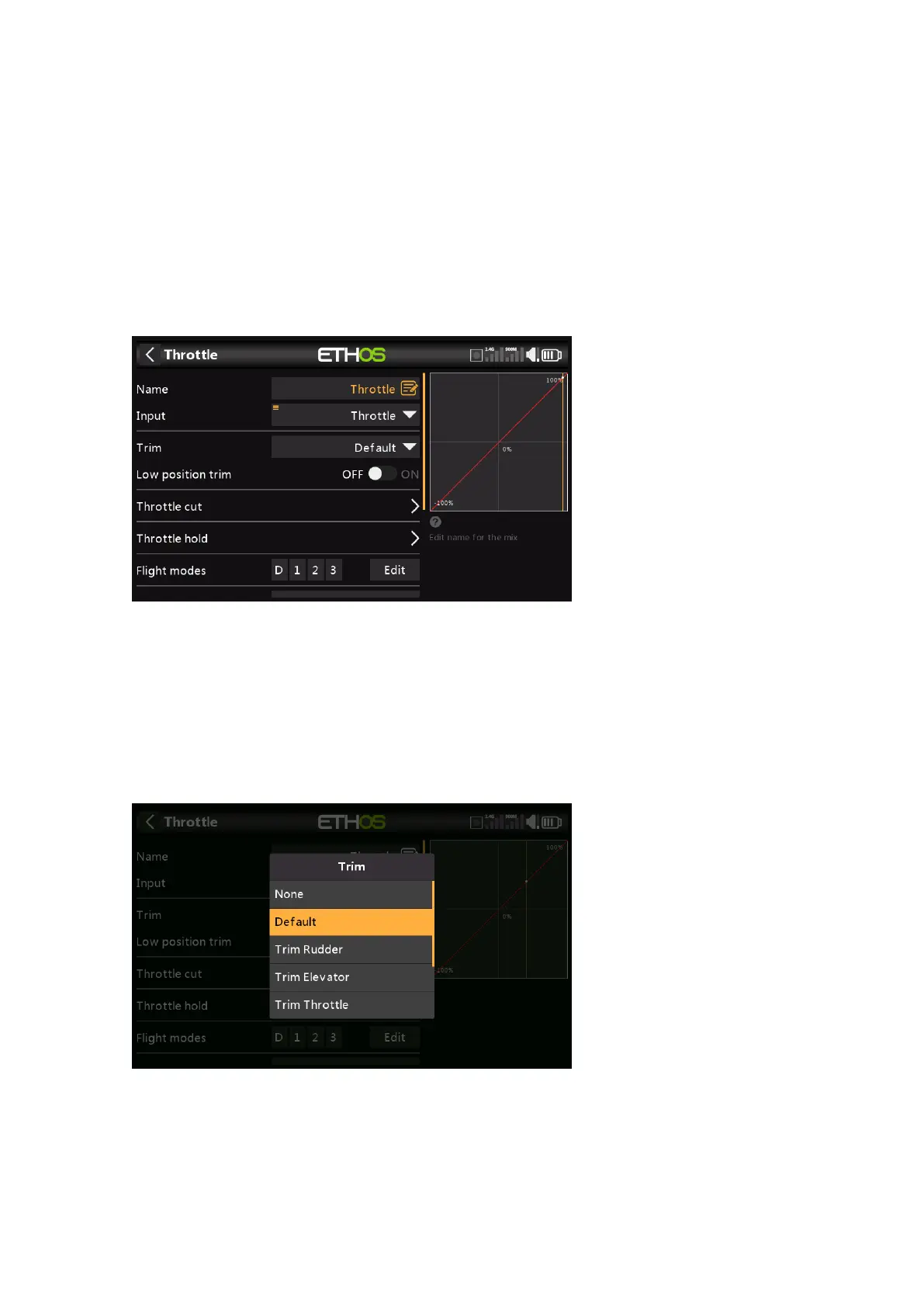

Throttle mix
The Throttle mix has parameters for managing throttle cut and throttle hold. Throttle cut
features a throttle input safety interlock, while throttle hold has a simple on/off function.
Input
The source for the Throttle mix can be selected here. It defaults to the throttle stick, but
can be changed to an analog, switch, trim, channel, gyro axis, trainer channel, timer or
special value.
Trim
Allows the throttle trim behaviour to be changed from the default.
It can be changed to allow the throttle output to be trimmed by the rudder, elevator,
throttle, aileron trim switches. The X20 Pro/R/RS and X18 also allow the T5 or T6 trims
to be assigned.
79 rev 2
