Ethos v1.5.7 and X18, X20 series User Manual

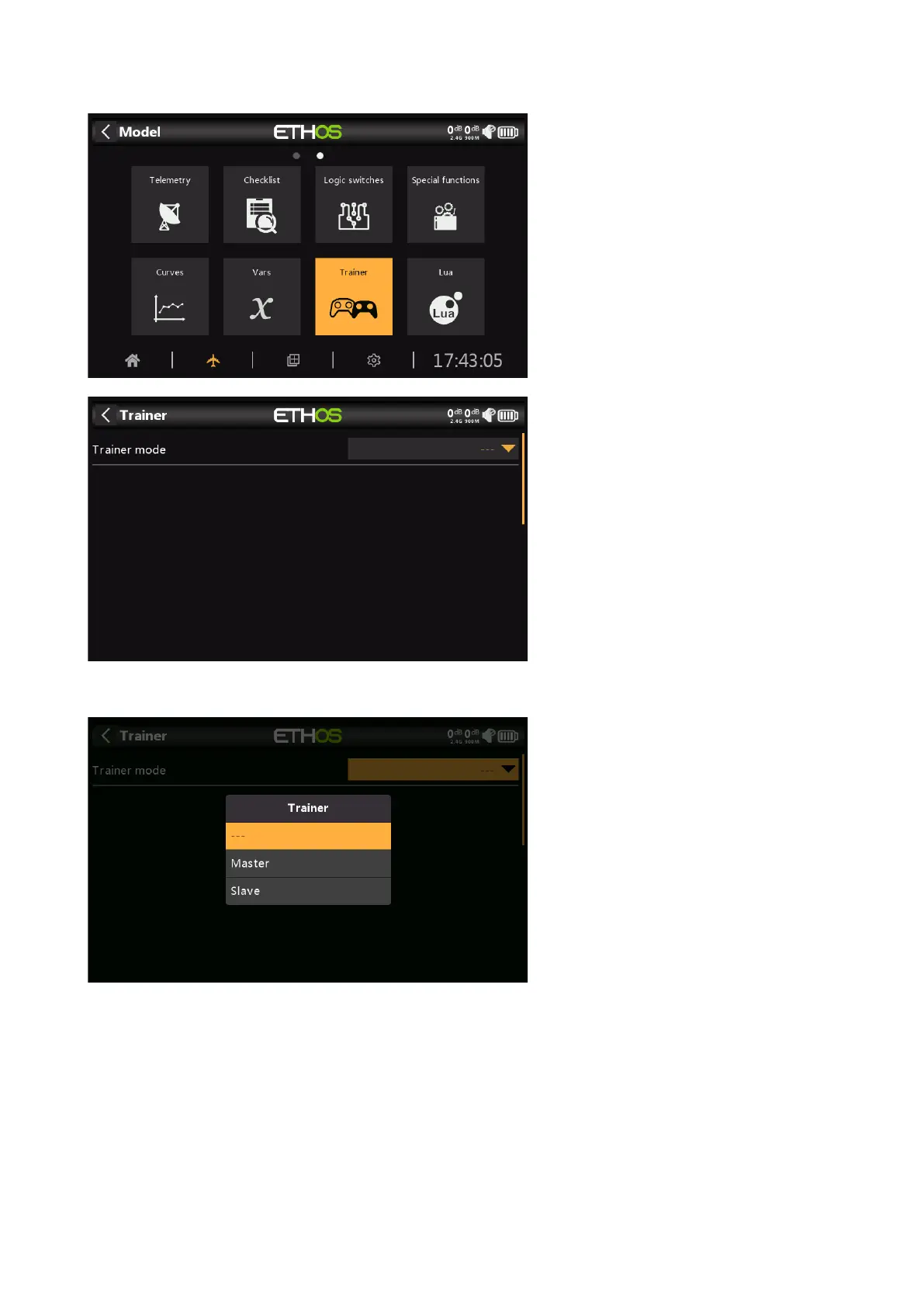

T
rainer
The T
rainer function is off by default.
The T
rainer function can be configured as master or slave. In master mode, up to 16 controls
may be transferred from the student r
adio to the master r
adio when the '
Activ
e condition' set
above is active. In slav
e mode a configur
able number of channels are transferred to the
master
.
275
rev 2
281
283
