Ethos v1.5.7 and X18, X20 series User Manual

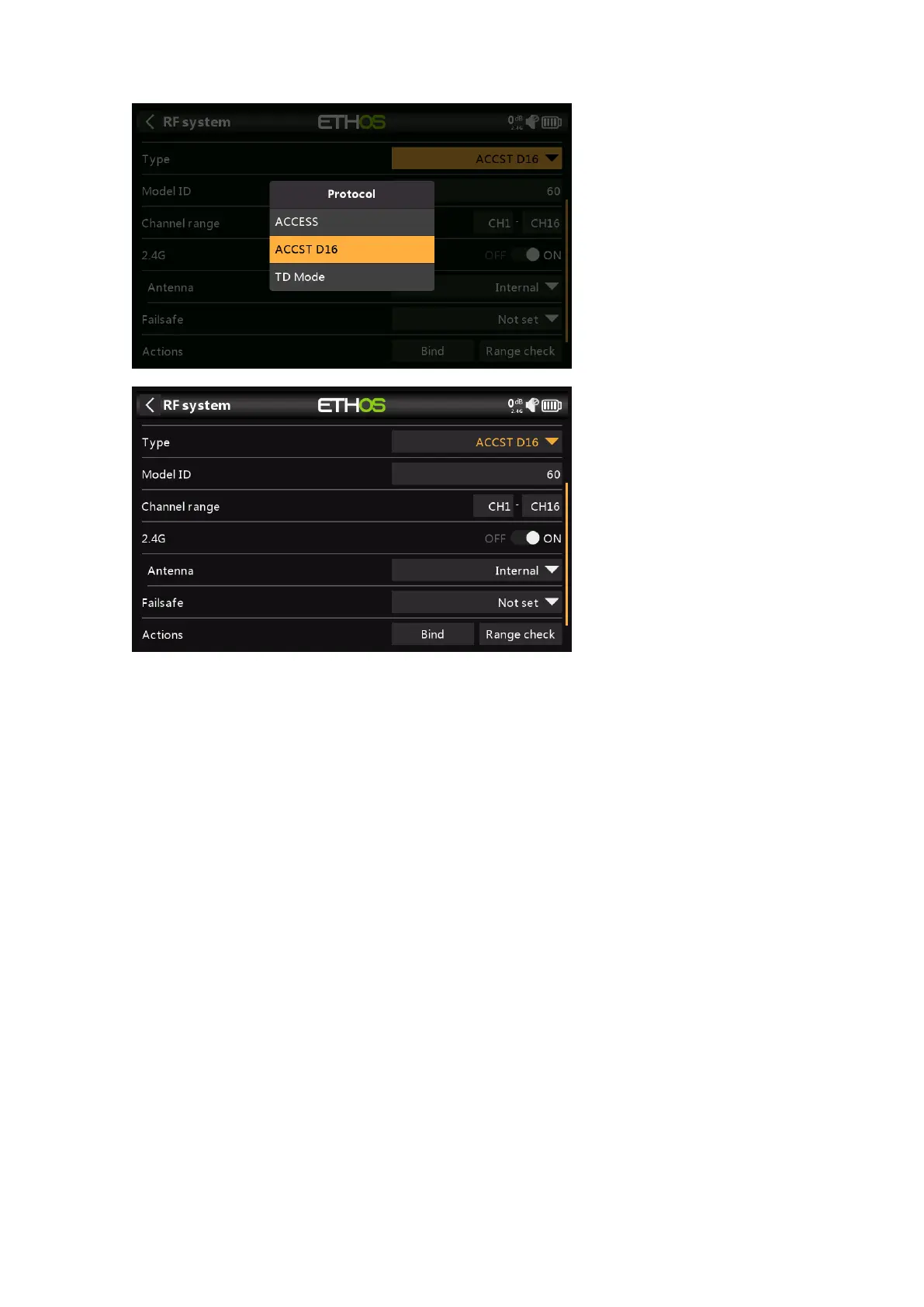

Type: ACCST D16
Mode ACCST D16 is for the ACCST 16ch two-way full duplex transmission, also known as
the "X"-mode. For use with the legacy “X” series receivers.
Model ID
When you create a new model, the Model ID is automatically allocated. The Model ID
must be a unique number because the Model Match function ensures that only the
correct Model ID will be bound to. This number is sent to the receiver during binding,
so that it will then only respond to the number it was bound to. The Model ID can be
changed manually.
Channel range
Choice of which of the radio's internal channels are actually transmitted over the air. In
D16 mode you can choose between 8 channels with data sent every 9ms, and 16
channels with data sent every 18ms.
Please note that servo update rates are completely determined by the receiver. For
ACCST please refer to your receiver manual for details on selecting the 9ms HS (High
PWM Speed) mode. Ensure that your servos can handle this update rate.
2.4G
ACCST D16 operates on 2.4G, so the 2.4G RF section is on by default.
Antenna
Select Internal or External (on ANT1 connector) Antenna. Although the RF stage
has built-in protection, it is good practice to ensure that an external antenna has
been fitted before selecting the External antenna. Please note that the antenna
