Evector SportStar RTC - Page 176

ERTC022-10-AS
MAINTENANCE MANUAL
33-10
Page 33-6
2019-03-22
Effectivity: All
Edition 2 | Rev. 1

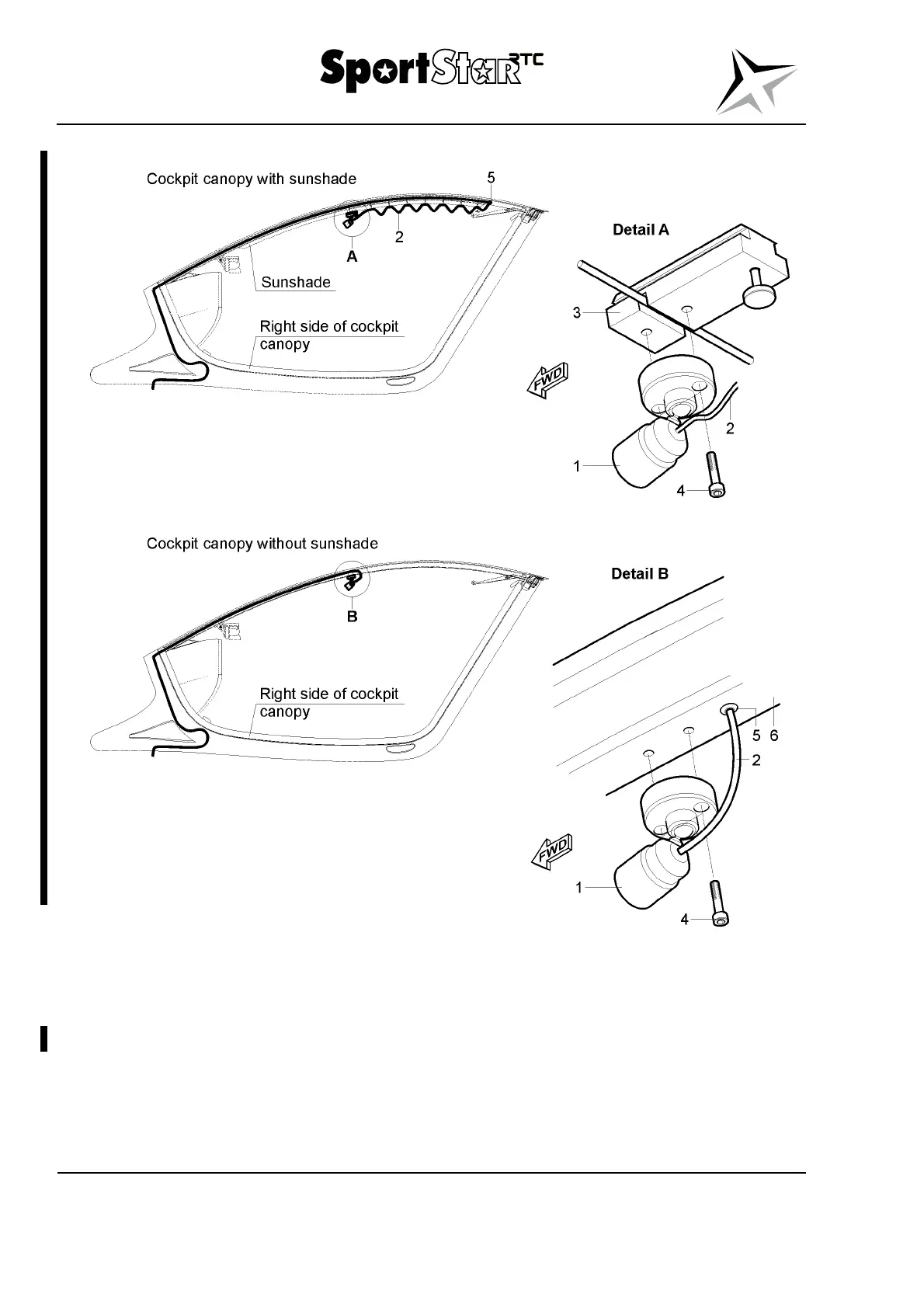

Legend to Fig. 33-1
1 Lamp 4 Screw M3x16 (2 pcs.)
2 Wires 5 Bushing
3 Guide rail 6 Middle column
Fig. 33-1 Cockpit lighting – removal / installation
