Legend to Fig. 71–2
1 Upper engine cowling 4 Screw M4x12 (4 pcs.)
2 Lower engine cowling 5 Polyamide washer 3,7 (12 pcs.)
3 Screw M4x16 (4 pcs.) 6 Camlock

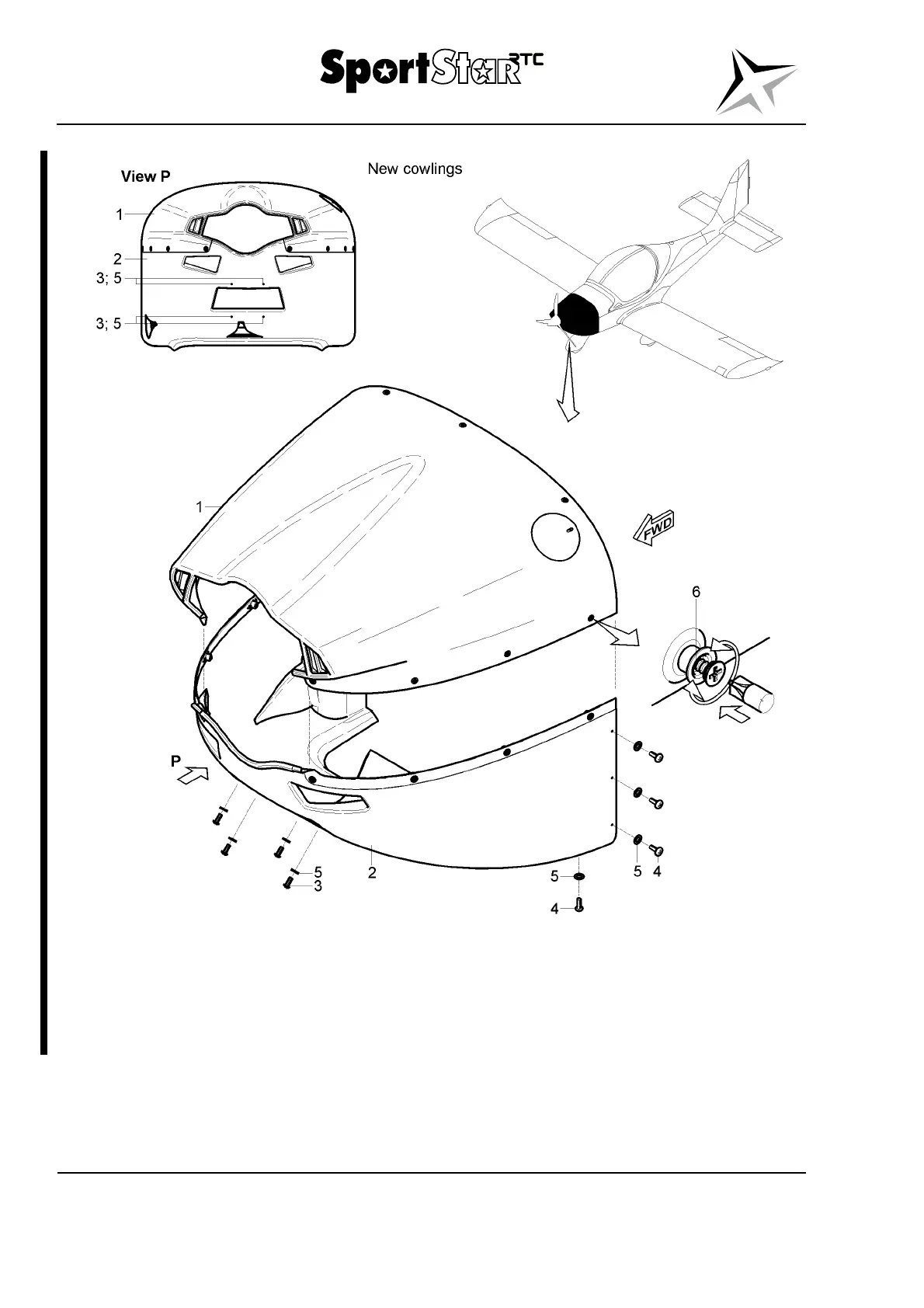

Fig. 71-2 Engine cowlings – removal / installation (page 2 of 2)
