Evector SportStar RTC - Page 225

MAINTENANCE MANUAL
ERTC022-10-AS
Effectivity: All
71-20
Page 71-19
2017-12-22
Edition 2 | Rev. 0

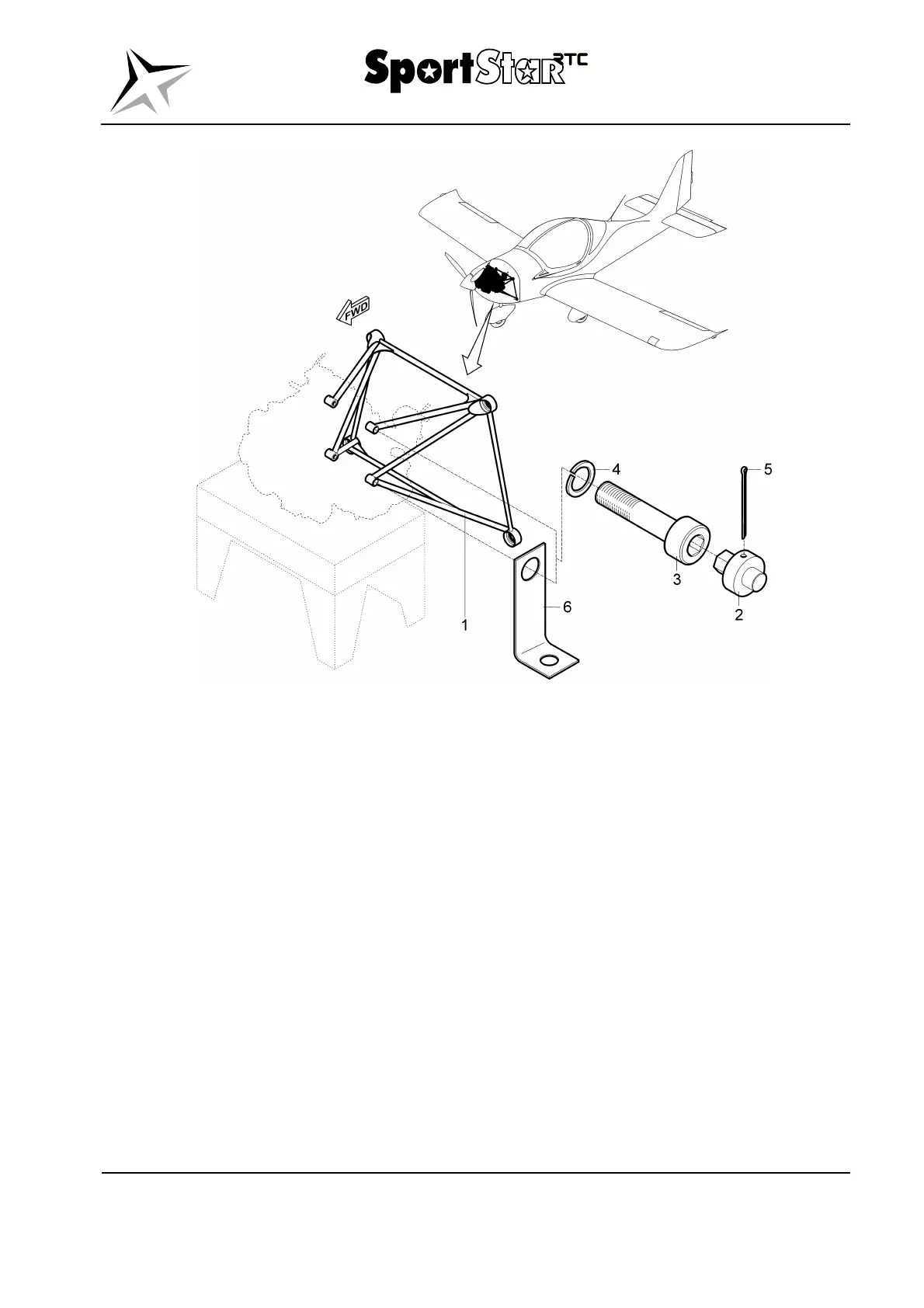

Legend to Fig. 71–4
1
Engine mount
4
Locking washer
2 Safety plug 5 Cotter pin
3 Screw of suspension 6 Bracket for attachment of exhaust pipe
muffler
Fig. 71-4 Engine mount – removal / installation
