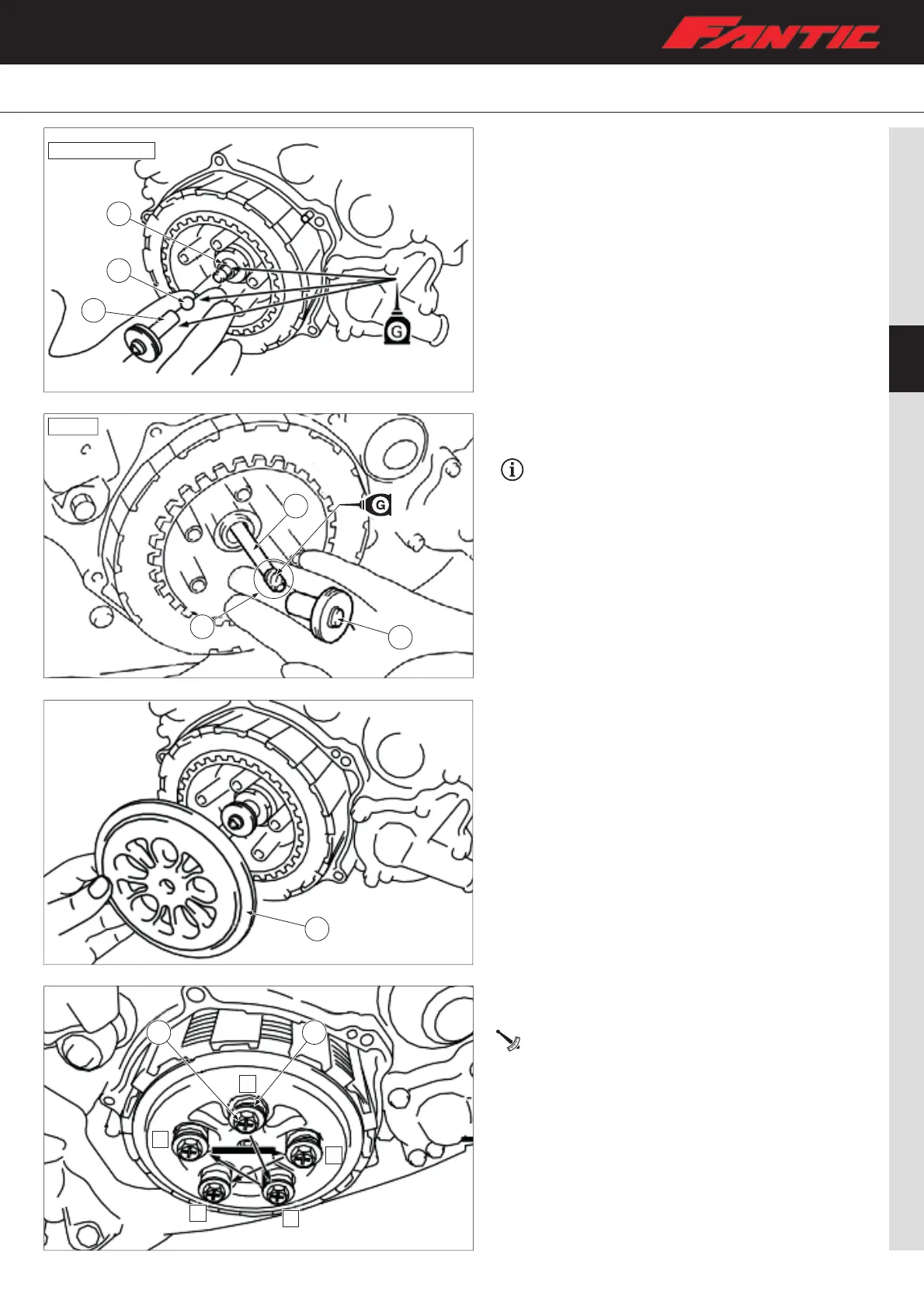

– Install the push rod “1”, ball “2” and thrust bearing “3 “;
(XX 250 version)
– Install the push rod “1” and the thrust bearing “2 “;
Install the pushrod with the smaller end “a” facing
yourself.
– Install the thrust plate “1”
– Install the springs “1” and bolts “2” of the clutch and
tighten them following a cross pattern;
Bolt (clutch spring):
10 Nm (1.0 m•kg, 7.2 ft•lb)
