Using Image Position controls (continued)

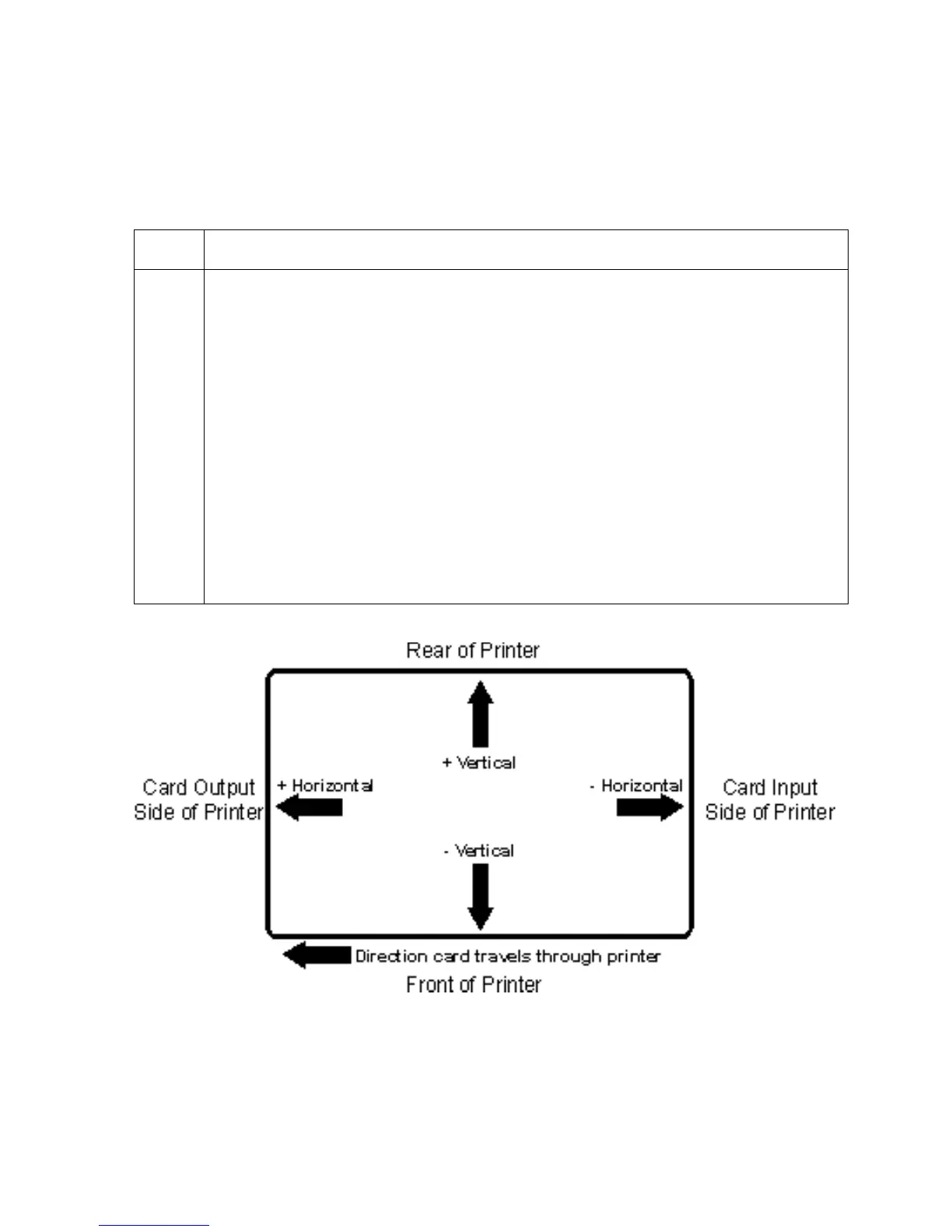

Review the Image Position diagram, which displays how the printed image will move in
relation to the fixed card position as positive and negative image placement values are
entered.
Step Procedure
2
Use the Vertical adjustment to move the image:
 Move toward the rear of the Printer if a positive number is entered.
 Move toward the front of the Printer if a negative number is entered.
OR
Use the Horizontal adjustment to move the image:
 Move toward the card output side of the Printer if a positive number is entered.
 Move toward the card input side of the Printer if a negative number is entered.
(Note No.1: The maximum value for the Vertical and Horizontal adjustments is
±100 pixels (10 pixels = about .03"/. 8mm).)
(Note No.2: The Vertical and Horizontal adjustment arrows point to within the
Image Position window, which represents the direction that the printed image
moves.)
