RESTRICTED USE ONLY Fargo Electronics, Inc.
DTC400 Card Printer/Encoder User Guide (Rev. 2.2)
1-3
DTC400 Card Printer Overview

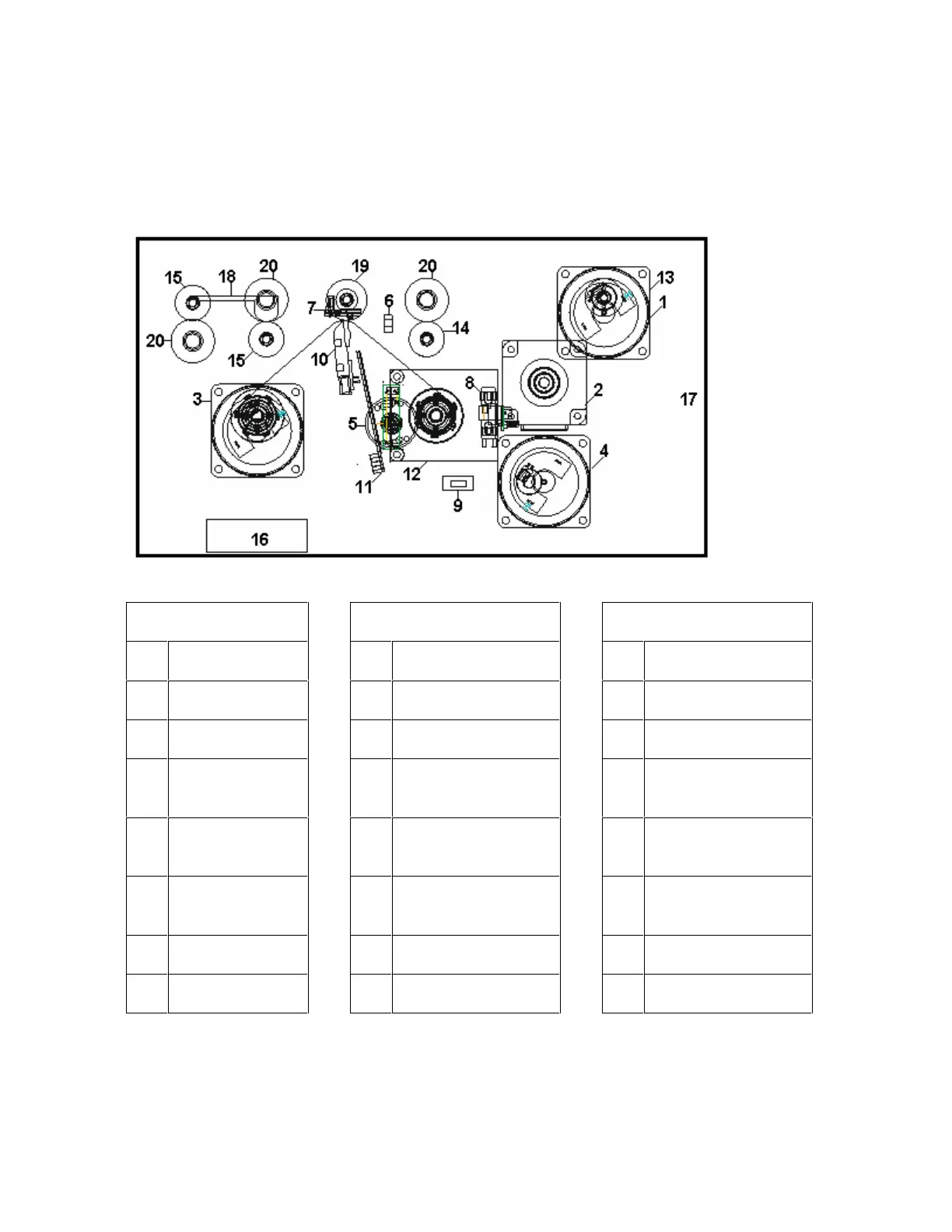

Reviewing the DTC400 Block Diagram
Motors Sensors Parts
1
Card Feed 6 Card Feed 13 Card Input Roller
2
Print Stepper 7 Ribbon Sensor 14 Cleaning Roller
3
Ribbon Drive 8 Ribbon Encoder 15 Card Feed Roller
4
Print Headlift 9 Headlift Sensor 16 Printhead Cooling
Fan
5
Ribbon Rewind
Motor
10 Printhead
Thermistor
17 Card Input Hopper
11 Ribbon LED SNR 18 Magnetic Encoding
Head Module
12 RFID Antenna 19 Platen Roller
20 Pinch Roller
