RESTRICTED USE ONLY Fargo Electronics, Inc.

DTC400 Card Printer/Encoder User Guide (Rev. 2.2)

6-18

Changing the Color Profile Selection for the DTC400 (continued)

Step Procedure

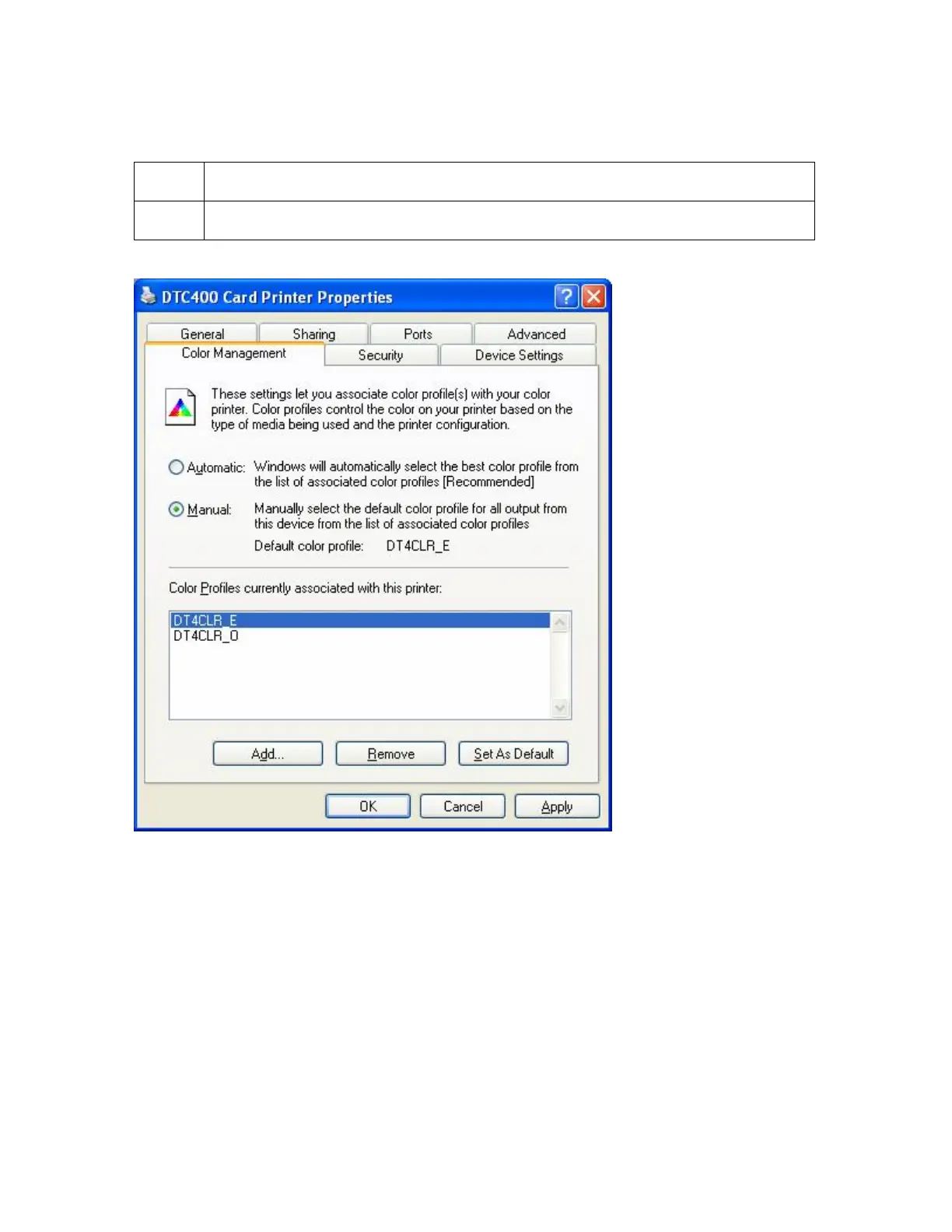

Click Set as Default.
