FARO
®
Laser Scanner Manual
154
Chapter 10: Technical Data
10.12 Scanner Mount Dimensions

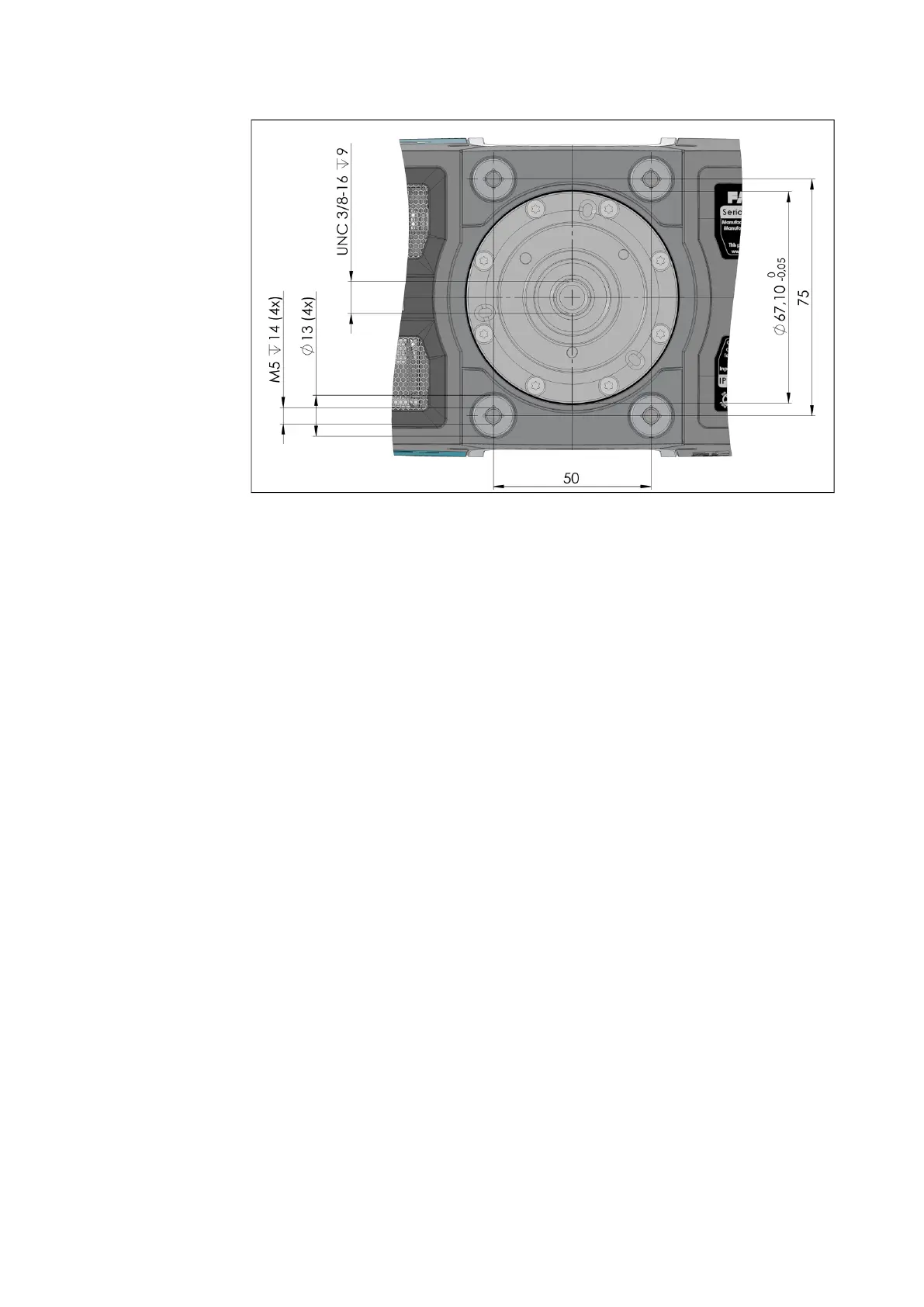

Figure 10-2: Scanner mount
The 3/8 in. central thread can be used to mount a fixation device below the
scanner.
The scanner has 4 M5 tapped holes as interface for helical operation.
All dimensions are in mm.
