Farr KT5500 - Page 101

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.25
TECHnICaL ManuaL

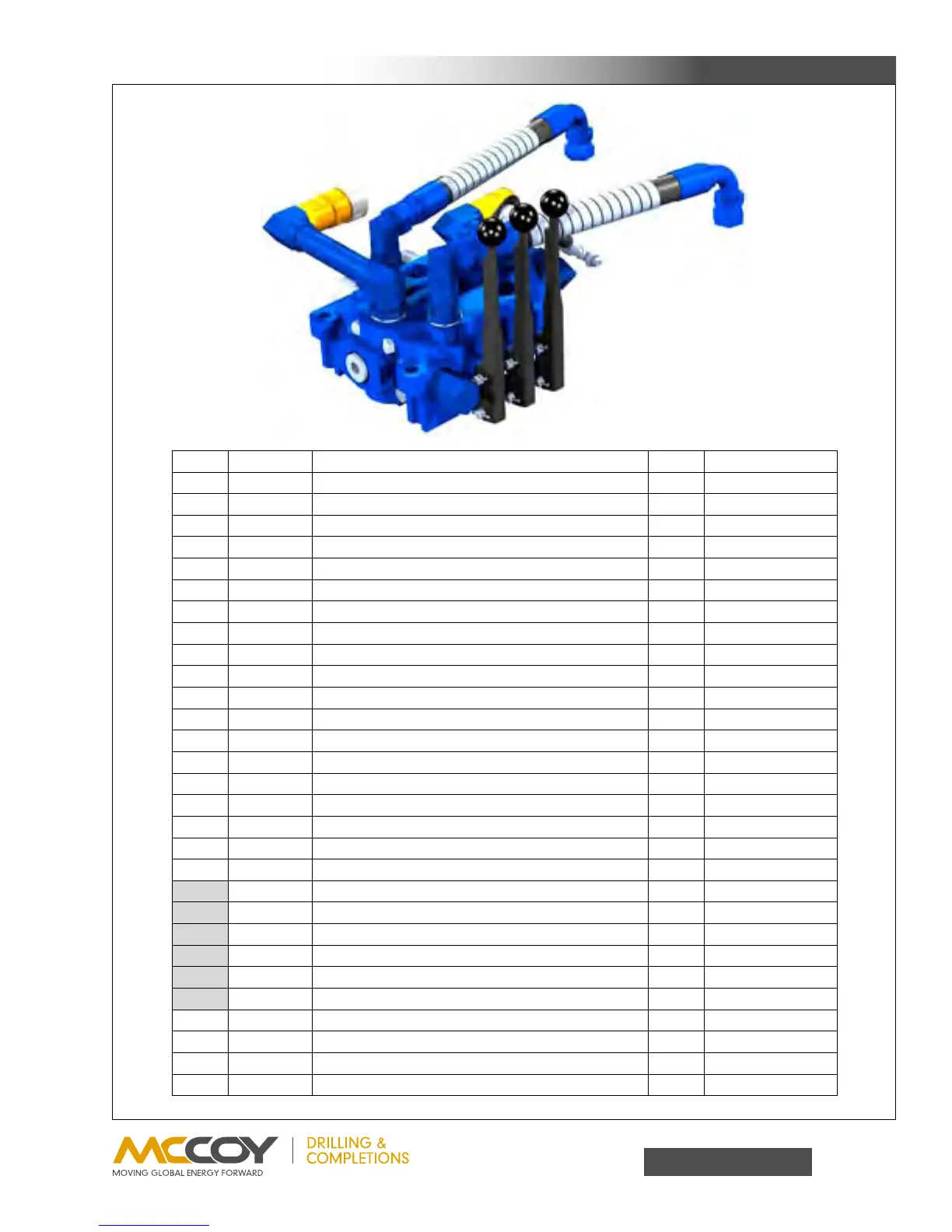

HyDRauLIC aSSEMBLy
Item Type Description Qty Part Number
A Part M-NPT/F-NPT90d1”Fitting 1 02-9221
B Part 1”LongNipple 1 101-0079
C Assembly M-ORB/F-NPT90d1”Fitting(Includesseals) 1 02-9206
D Part HydraulicInlet,DVA35-A880 1 10-9016
E Part Male1”QuickCouplerFitting 1 02-9214
F Part 1”DustCap 1 02-9213
G Assembly 1”HydraulicConnectionHoseAssembly 2 08-1724
H Assembly M-ORB/JICLONG90d1”(Includesseals) 1 02-9210
J Assembly MotorDrainHoseAssembly 1 101-0072
K Part ORBHEXBUSHING 1 10-9001
L Assembly M-ORB/JIC90DEG3/8”Fitting(Includesseals) 2 02-9200
M Part 1-1/4”DustCap 1 02-9212
N Part Male1-1/4”QuickCouplerFitting 1 02-9215
P Part 1-1/4”LongNipple 1 101-0070
Q Assembly M-ORB/F-NPT90d11/4”Fitting(Includesseals) 1 02-9202
R Part M-NPT/F-NPT90d11/4”Fitting 1 02-9220
S Part HydraulicOutlet,DVA35-TR99 1 10-0086
T Part DVA35-DA84WAYSAEPorts 1 10-9019
U Assembly HandleAssembly 3 01-0409
Part HydraulicValveHandle 1 01-0409-HANDLE
Part ValveHandleLink 2 01-0409-LINK
Part HydraulicHandlePin 2 01-0409-PIN1
Part HydraulicHandleAuxilliaryPin 1 01-0409-PIN2
Part ValveHandleC-Clip 2 01-0409-CIRCLIP
Part CotterPin 2 01-0409-COTTER
V Part DVA35-SA8Valve(1”ORBPORT) 1 10-9015
W Part DVA35-MA84-WayDirectionalValve,SAEPort 1 10-9014
X Assembly HydraulicReliefValve(includesseals) 1 10-0010R
Y Part 1”OrbPlugFitting(includeso-ring) 1 02-9222
