Farr KT5500 - Tension Load Cell Exploded; Torque Measurement

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
6.3
TECHnICaL ManuaL
Item Type Description Qty Part Number
Assembly TensionLoadCell,4.08in
2
1 10-0008T
A Part O-Ring 1 02-0800
B Part LoadCellBody 1 LC99-104
C Part 1/4”NCx1/2”BindingHeadMachineScrew 1 09-0045A
D Part Stat-O-Seal 1 02-0307
E Part O-Ring 1 02-0350
F Part O-Ring 1 08-0596
G Part LoadCellPiston 1 LC99-101
H Part LoadCellEnd 1 LC99-003
J Part FlangeGasket 1 02-0073
K Part LoadCellRod 1 LC99-002
L Part Wiper 1 08-1558
M Part 3/8”NCx3/8”CupPointHexSetScrew 2 09-0106
SealKit ReplacementSealKit4.08in
2
TensionLoadCell 02-4578
This is the standard tension load cell sup-
plied by McCoy Drilling & Completions |
Farr. Contact our sales department for
information about optional application-
specific tension load cells.

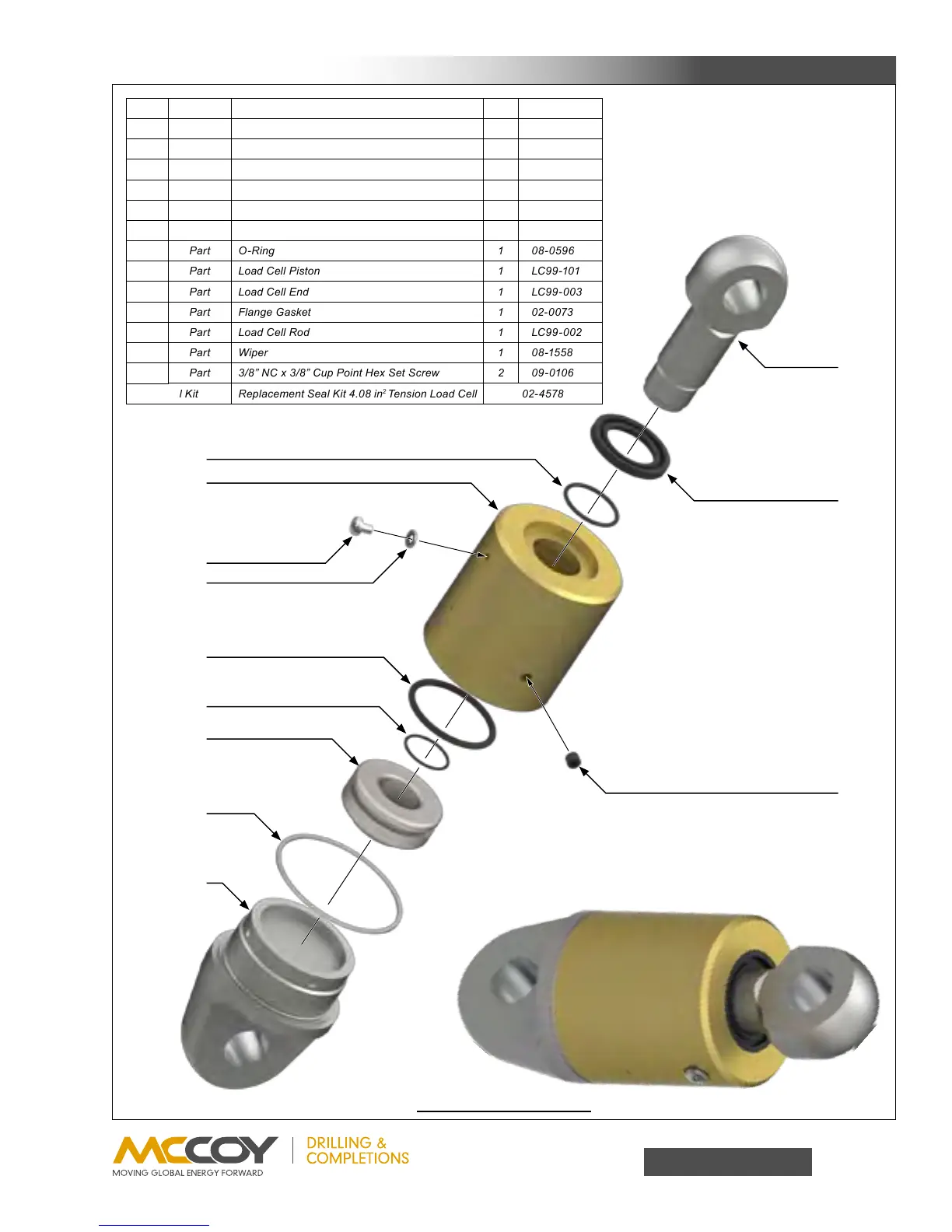

tension loAD cell exploDeD
ToRquE MEaSuREMEnT
A
B
C
D
E
F
G
H
J
K
L
M
