Farr KT5500 - Tong Door Assembly

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.27
TECHnICaL ManuaL

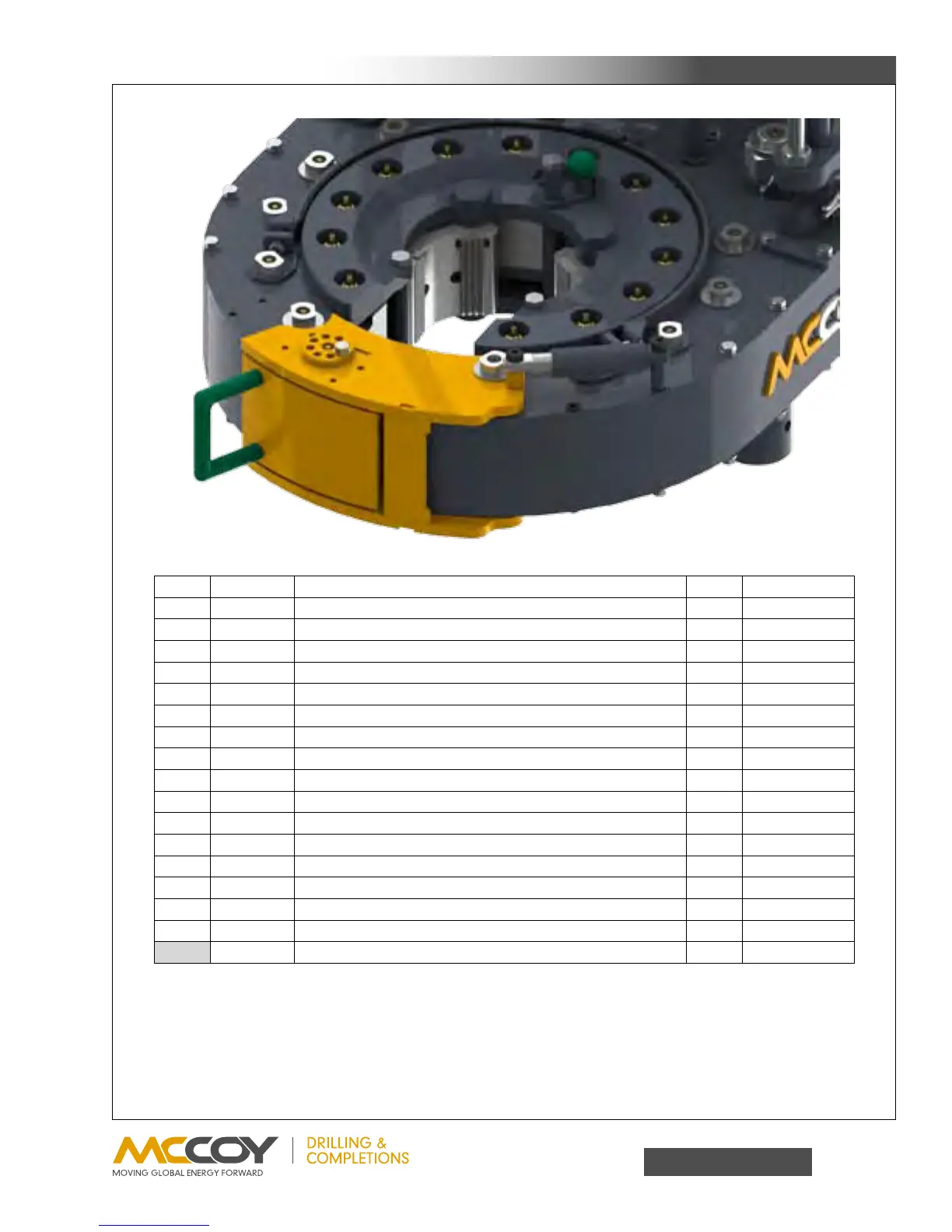

Tong DooR aSSEMBLy
Item Type Description Qty Part Number
A Part 5/16”x3/4”UNCShoulderBolt 2 09-0227
B Assembly DoorCylinder 1 101-0069
C Part 3/8”NCx1”HexBolt 1 09-1046
D Part 3/8”CarbonSteelLockWasher 3 09-5106
E Part AdjustmentCam 1 1400-14
F Weldment DoorWeldment 1 1400-10
G Part 3/8”UNCHexNut 2 09-5806
H Part 3/8”NCx1-1/2”HexBolt 1 09-1553
J Part LatchSpring 2 997-16
K Weldment DoorLatchWeldment 1 1064-C7-15
L Part ShoulderBushing 1 101-5110
M Part DoorBushing(Bottom) 1 101-5111
N Part DoorPivotRoller 1 101-3943
P Part 7/8”NarrowFlatWasher 2 09-5123
Q Part DoorCylinderMountingLug 1 1050-12-001
R Part 7/8”UNFThinNylockNut 1 09-5722
Part 1/4”StraightGreaseFitting(AdjustmentCam-notshown) 1 02-0097
