HyDRauLIC VaLVE InfoRMaTIon

These valves have positive seals
between port 3 and port 2.

Stainless steel cartridge options P or W
are intended for use within corrosive
environments with all external
components manufactured in stainless
steel or titanium. Internal working
components remain the same as the
standard valves.

Incorporates the Sun floating style
construction to eliminate the effects of
internal parts binding due to excessive
installation torque and/or
cavity/cartridge machining variations.

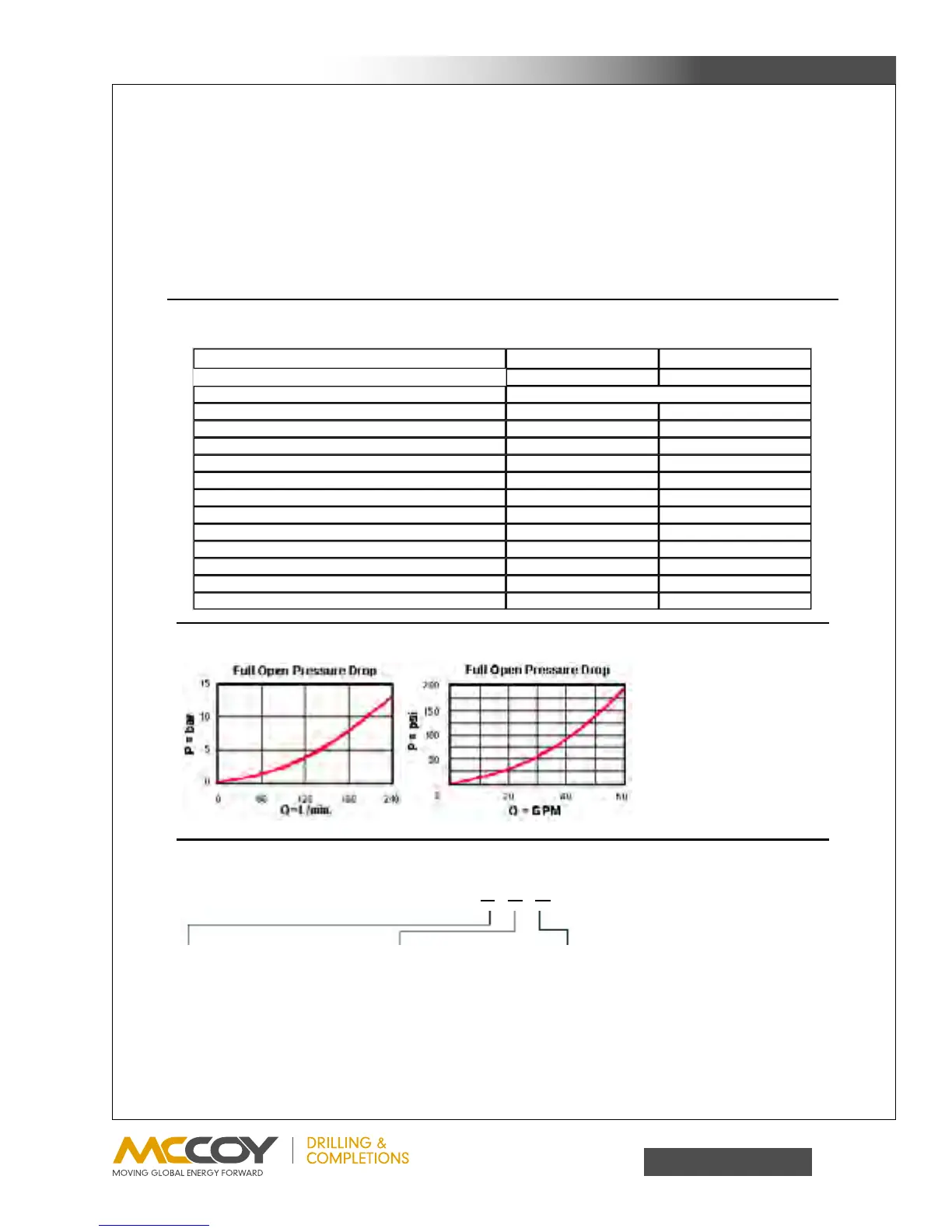

Technical Data
U.S. Units Metric Units
Cavity
T-17A
Capacity
60 240 L/min.
Area Ratio, A3 to A1
1.8:1
Area Ratio, A3 to A2
2.25:1
Maximum Operating Pressure
5000 350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)
10 10 drops/min.@70 bar
Pilot Volume Displacement
.15 2,5 cc
Series (from Cavity)
3
U.S. Patent #
4,795,129
Valve Hex Size
1 1/4 31,8 mm
Valve Installation Torque
150 - 160 200 - 215 Nm
Seal Kits
Buna: 990-017-007
Seal Kits
Viton: 990-017-006
Option Selection
LKHC -X D N
Preferred Options
External
Control Cracking Pressure
Material/Seal
Material
Standard Options
X Not Adjustable N Buna-N
V Viton
Customer specified setting stamped on hex +$1 .10
Related Information :

Explanation of Sun cartridge control options - US units.

Explanation of Sun cartridge control options - metric units.
