Farr KT5500 - Leg Assemblies

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.31
TECHnICaL ManuaL

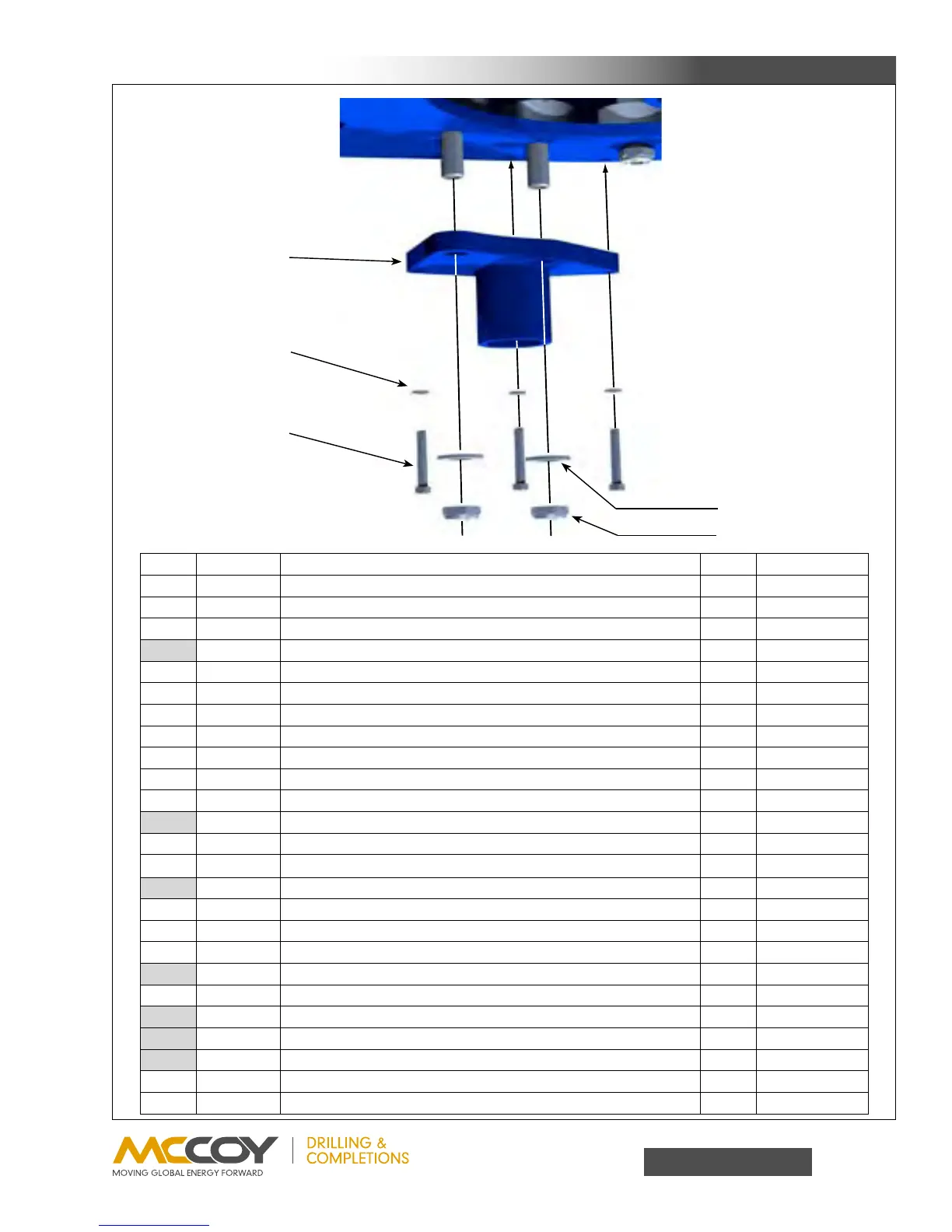

LEg aSSEMBLIES
Item Type Description Qty Part Number
A Part 1-1/4”NCx8”HexBolt 2 09-0222
B Part 1”NCx7”HexBolt 2 09-9165
C Weldment RearLegWeldment-TensionLoadCellConfiguration 1 1010-1987
Weldment RearLegWeldment-CompressionLoadCellConfiguration 1 1010-1547
D Part 1-1/4”NCHexNylockNut 2 09-1484
E Part 1”NCHexNylockNut 2 09-5725
F Part 3/8”CarbonSteelLockwasher(Leg-Body) 10 09-5106
G Part 3/8”NCx2-1/4”HexBolt(Leg-Body) 10 09-1055
H Part 3/8”NCx1-1/2”HexSHCS(RearLeg-Body) 2 09-2051
J Part FrontLegTube 2 101-2155
K Part TopSpringCap-FrontLeg(TensionLoadCellConfiguration) 2 1302-905-03B
Part TopSpringCap-FrontLeg(CompressionLoadCellConfiguration) 2 101-4489
L Part 1/2”NCx3”HexBolt 4 09-1178
M Part FrontLegSpring(TensionLoadCellConfiguration) 2 1391-905-02B
FrontLegSpring(CompressionLoadCellConfiguration) 2 1302-905-08
N Part BottomSpringCap-FrontLeg 2 1302-905-03C
P Part 1/2”NCNylockNut 4 09-5610
Q Part RearBackupSuspensionSpring(TensionLoadCellConfiguration) 2 1391-905-03
Part RearBackupSuspensionSpring(CompressionLoadCellConfiguration) 2 1302-905-03A
R Weldment LHFrontLegMountWeldment-TensionLoadCellConfiguration 1 101-2152
Weldment RHFrontLegMountWeldment-TensionLoadCellConfiguration 1 101-2153
Weldment LHFrontLegMountWeldment-Comp.LoadCellConfiguration 1 101-0786
Weldment RHFrontLegMountWeldment-Comp.LoadCellConfiguration 1 101-0787
S Part 7/8”NarrowWasher 2 09-5123
T Part 7/8”NFHexThinNylockNut 2 09-5722
F
G
R
S
T
