Farr KT5500 - Clutch Bearings; Pinion

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
3.4
TECHnICaL ManuaL
MaInTEnanCE

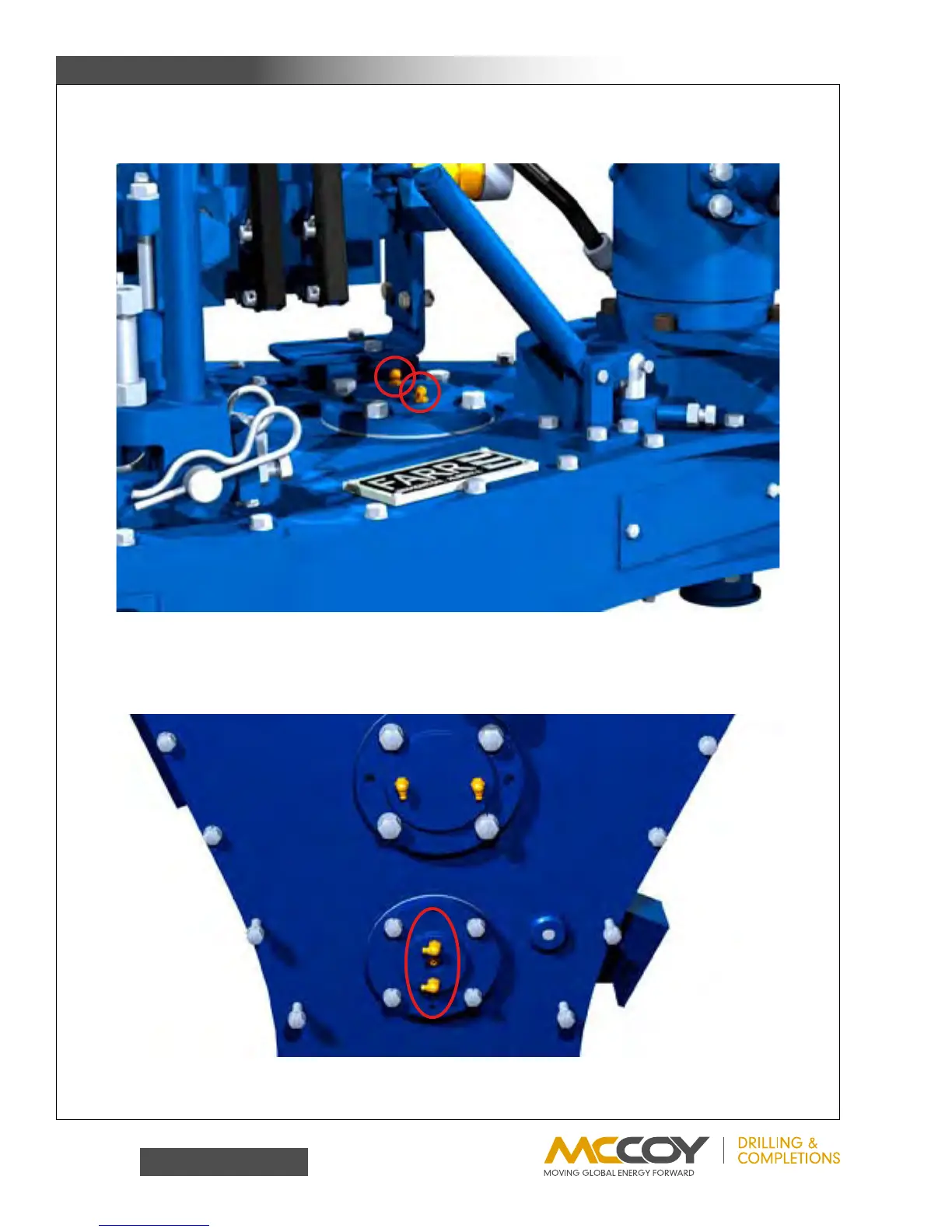

5. Pinion
Applygreasetothepinionbearingsthroughthegreasefittingslocatedonthebearingcapsonthetopandbottomfacesofthe
tong(twolocationstop,twolocationsbottom).
6. Clutch Bearings
Applygreasetotheclutchbearingsthroughthetwogreasefittingslocatedontheclutchbearingcaponthebottomfaceofthe
tong,andthesinglegreasefittingrecessedintotheendoftheclutchshaft.(threelocationstotal).
