Farr KT5500 - Tong Body Assembly

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.19
TECHnICaL ManuaL

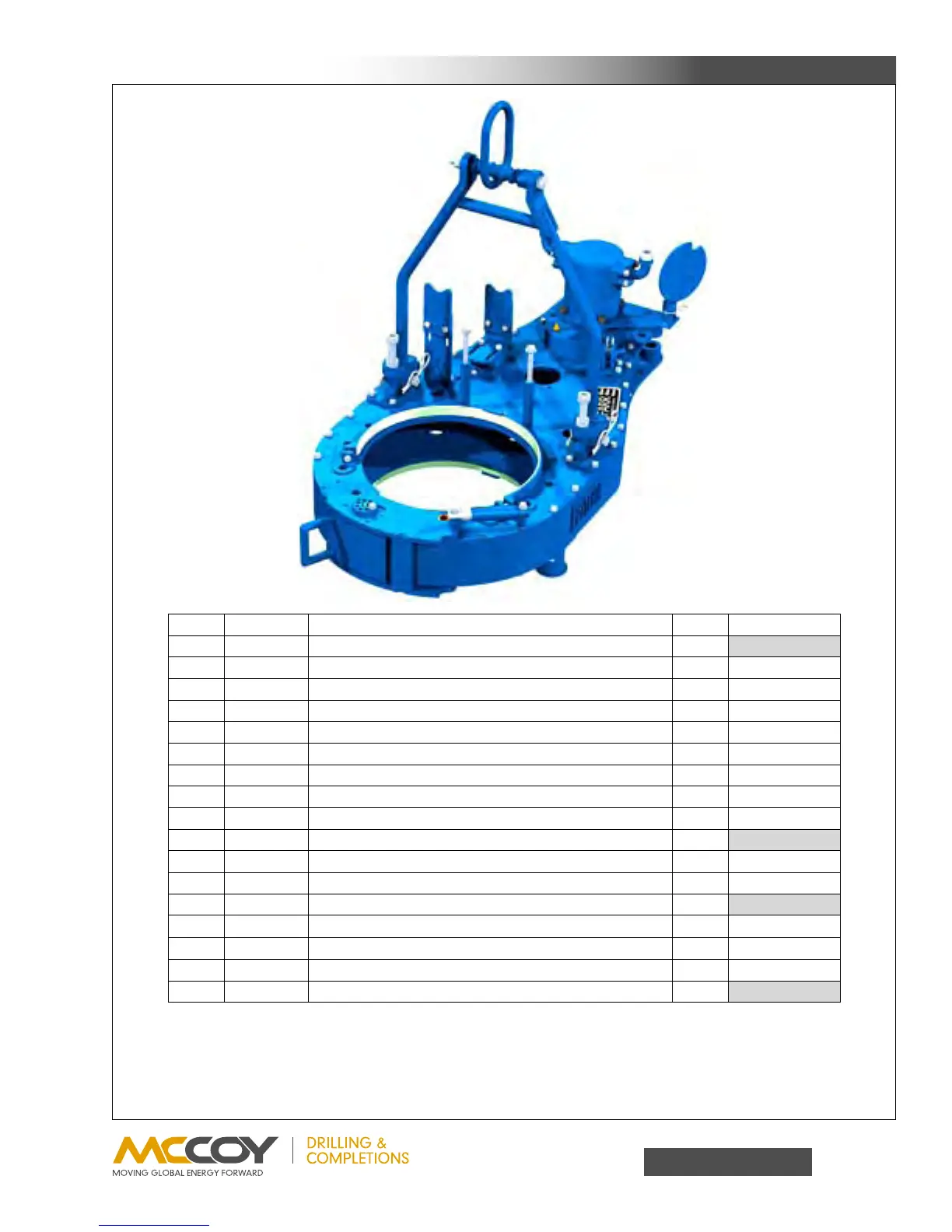

Tong BoDy aSSEMBLy
Item Type Description Qty Part Number
A Assembly DoorAssembly(SeePp.7.30-7.31) 1
B Part 3/8”NCx1-3/4”HexSocketCap(FlatHeadHeight) 5 09-2052
C Assembly DoorCylinderAssembly 1 101-0069
D Part 3/8”NCx1-1/4”HexBolt 2 09-1048
E Part 3/8”CarbonSteelLockwasher 39 09-5106
F Part 3/8”NarrowFlatWasher 2 09-5124
G Part 3/8”NCx1-1/2”HexBolt 29 09-1050
H Part RigidSlingPin 2 1053-C-1C
J Weldment RigidSlingBracket 2 101-0151
K Assembly RigidSling(SeePp.7.32-7.33) 1
L Part HitchPin,1/4”x5” 4 09-9075
M Weldment ShifterLugWeldment 1 101-0016
N Assembly Motor&MotorMount(SeePp.7.26-7.27) 1
P Part TopPlate 1 1400-7T
Q Weldment SideBodyWeldment 1 101-0236
R Part BottomPlate 1 1400-7B
S Part BrakebandAssembly(SeePp.7.24-7.25) 2
